Event Lighting - XLR3M3F30 - Male 3 Pin XLR to Female 3 pin XLR cable - 30m Length

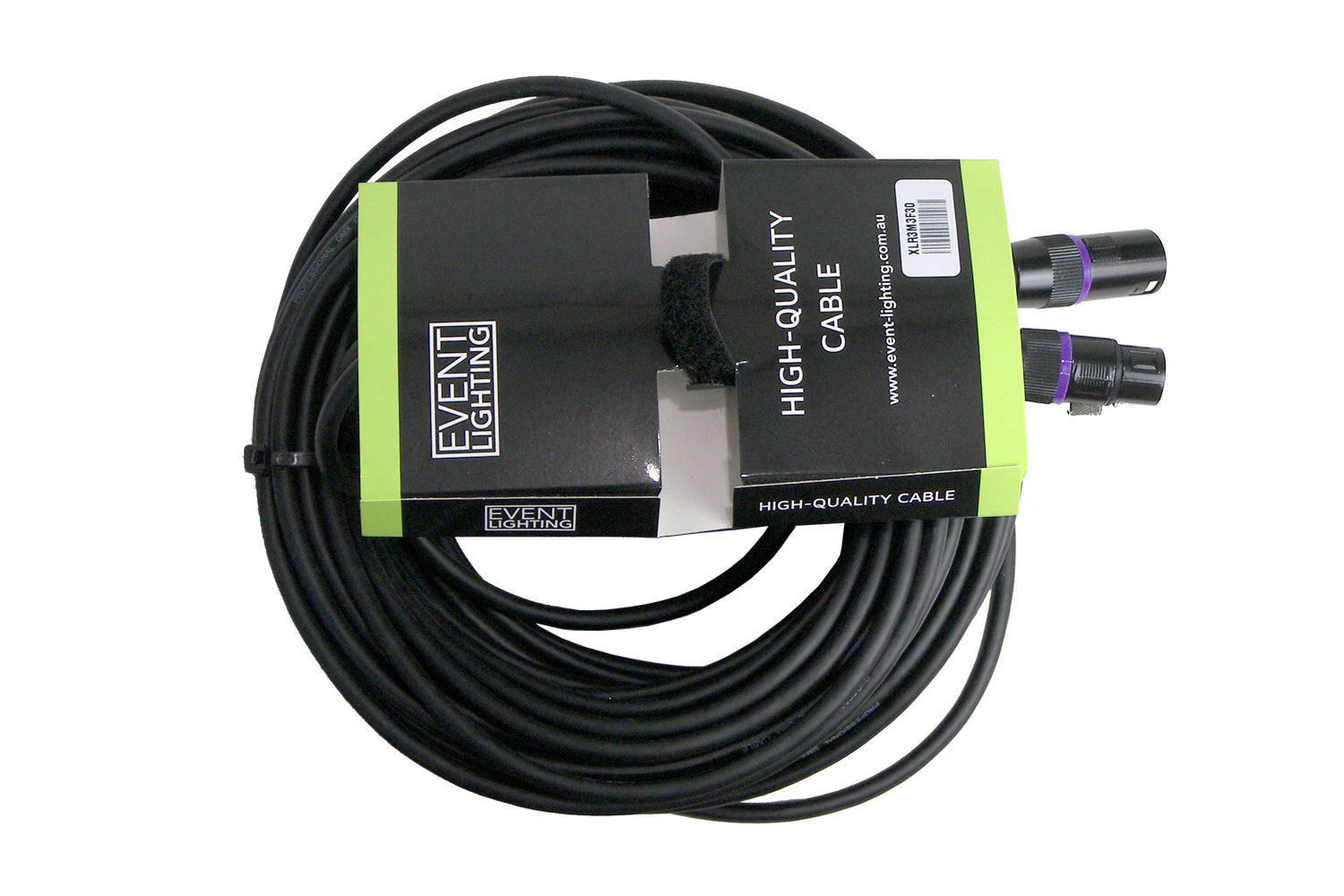

Event Lighting XLR3M3F30 3-Pin XLR Cable – 30m

The Event Lighting XLR3M3F30 is a professional 3-pin XLR male to 3-pin XLR female cable designed for reliable signal transmission in audio and control applications. With a 30-metre length, this cable is suitable for medium-to-long distance signal runs in stage, theatre, and live production environments.

Built for durability and low-noise performance, the cable features 0.34mm² conductors, PE insulation, and a 2-core twisted arrangement. The combination of AL/PET foil shielding and braided shielding helps minimise electromagnetic interference and maintain stable signal transmission. The outer PVC jacket (Ø5.8mm) provides flexibility and protection for touring and installation use.

The cable is fitted with black metal 3-pin XLR connectors with metal boots and rubber glands for enhanced durability in professional environments. Clear heat shrink and a purple identification ring allow easy visual identification within larger cable systems.

Specifications

- Length: 30 metres (purple ring)

- Connector type: 3-pin XLR male to 3-pin XLR female

- Conductor size: 0.34 mm²

- Core arrangement: 2 cores, twisted

- Shielding: AL/PET foil + braided shield

- Insulation: PE

- Outer jacket: PVC Ø5.8 mm

- Cable construction: 19 × 0.15mm core, 16 × 16 × 0.12 cotton filler, aluminium foil shield, 20 × 0.12 drain

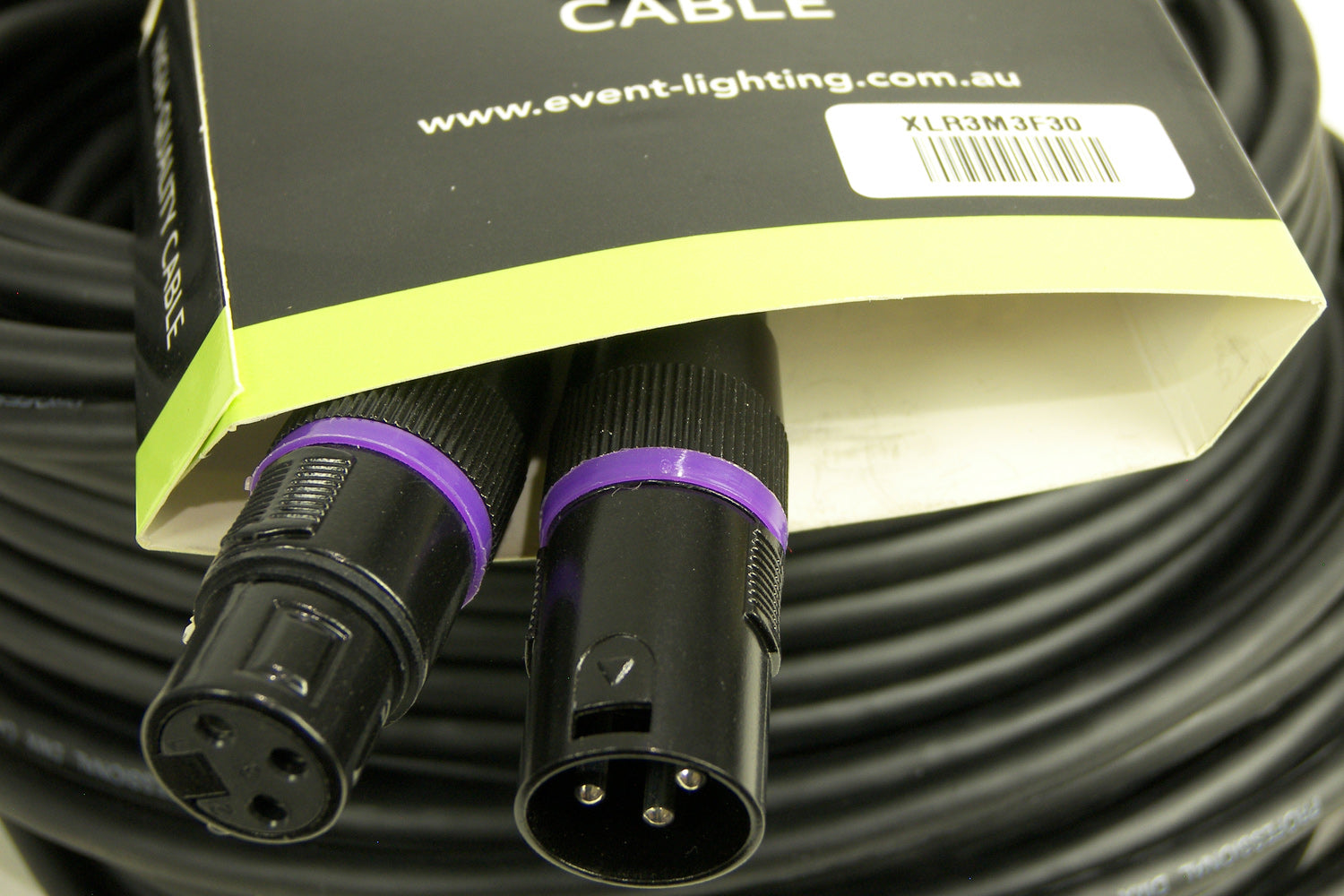

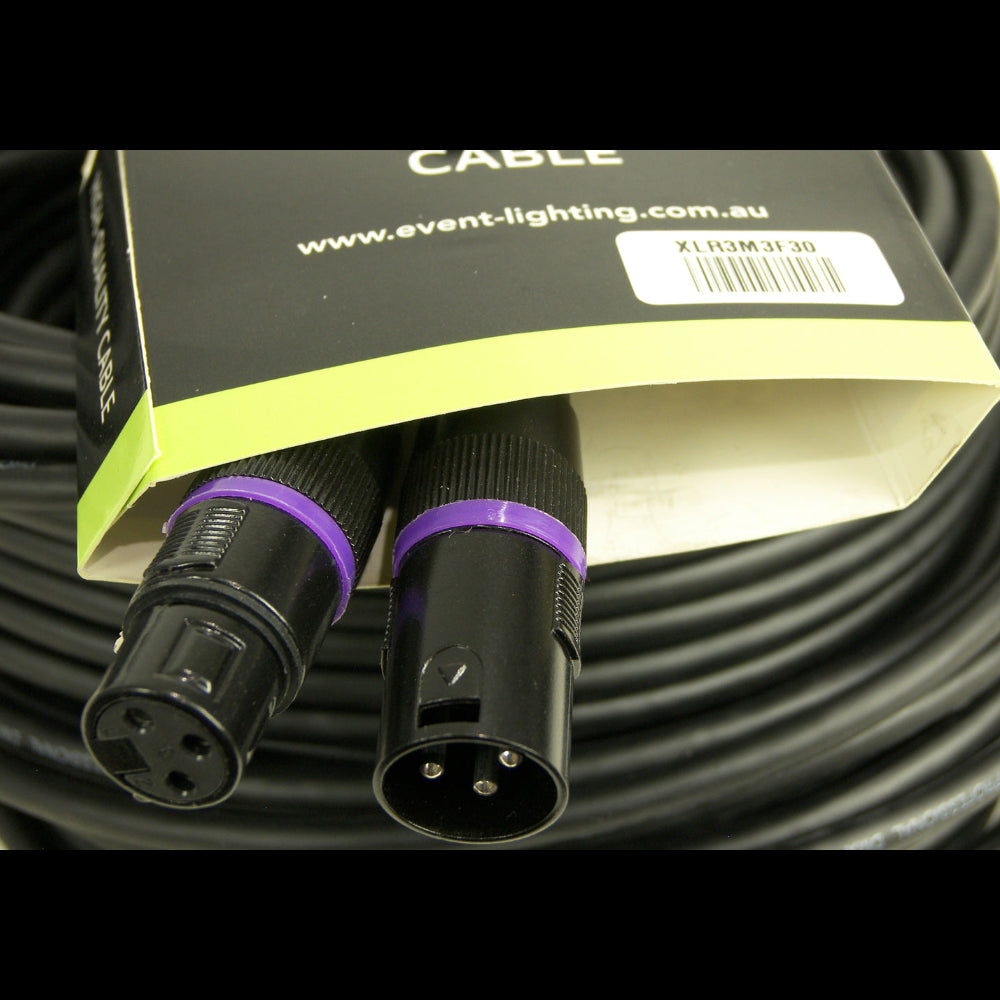

- Connector finish: Black metal with metal boot and rubber gland

- Shipping weight: 3 kg

- Packaging dimensions: 300 × 250 × 180 mm

Features

- Professional 3-pin XLR audio/control cable

- 30m length for medium-distance signal transmission

- Shielded construction for low-noise performance

- Heavy-duty metal XLR connectors

- Colour-coded identification for cable management

Ideal for

- Professional audio systems

- Stage and theatre production

- Live event sound setups

- Touring and installation applications
