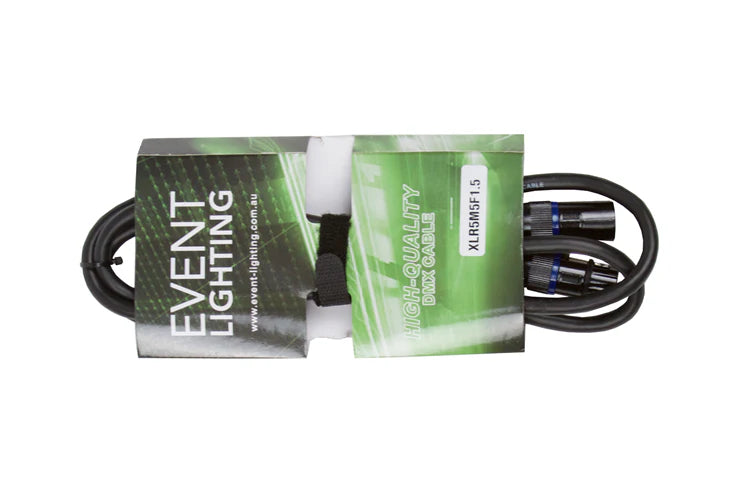

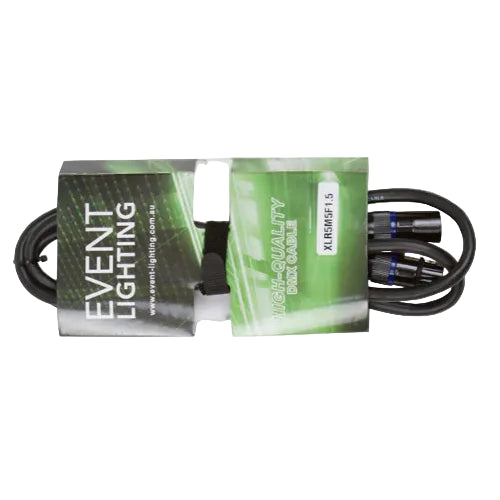

Event Lighting - XLR5M5F1.5 - Male 5 Pin XLR to Female 5 pin DMX cable - 1.5m Length

Event Lighting XLR5M5F1.5 5-Pin XLR DMX Cable – 1.5m

The Event Lighting XLR5M5F1.5 is a professional 5-pin XLR male to 5-pin XLR female DMX cable designed for precise, short-run lighting control connections. With a compact 1.5-metre length, it’s ideal for tight stage setups, rack patching, and close fixture linking.

Built for consistent DMX signal performance, the cable features a 0.34mm² conductor, PE insulation, and a 4-core twisted arrangement. Dual shielding with AL/PET foil plus braided shielding helps reduce interference and maintain stable data transmission. The durable PVC outer jacket (Ø7.5mm) provides protection suited to live production and touring environments.

Fitted with robust black metal 5-pin XLR connectors, complete with metal boots and rubber glands, this cable is designed for reliability under repeated use. Clear heat shrink and a blue identification ring make it easy to quickly distinguish within larger DMX systems.

Specifications

- Length: 1.5 metres (blue ring)

- Conductor: 0.34 mm²

- Core arrangement: 4 cores, twisted

- Insulation: PE

- Shielding: AL/PET + braided

 - Outer jacket: PVC Ø7.5mm

- Cable construction: 19 × 0.15mm core, 16 × 16 × 0.12 cotton filler, aluminium foil shield, 20 × 0.12 drain

- Connector type: 5-pin XLR male to 5-pin XLR female

- Connector finish: Black metal with metal boot and rubber gland

- Shipping weight: 0.47 kg

- Dimensions: 350 × 100 × 20 mm

Features

- Professional 5-pin DMX cable

- Short 1.5m length for neat installations

- Double shielding for reliable signal transmission

- Heavy-duty metal XLR connectors

- Colour-coded ring and clear heat shrink for easy identification

Ideal for

- Stage and theatre lighting systems

- Live event production

- Touring rigs and temporary installs

- Rack and control system patching
