Event Lighting - XLR3M3F3 - Male 3 Pin XLR to Female 3 pin XLR cable - 3m Length

Event Lighting XLR3M3F3 3-Pin XLR DMX Cable – 3m

The Event Lighting XLR3M3F3 is a professional 3-pin XLR male to 3-pin XLR female DMX cable designed for reliable signal transmission in lighting control systems. With a 3-metre length, this cable is ideal for short patch runs between controllers, splitters, and nearby stage lighting fixtures.

Constructed for stable DMX performance, the cable features 0.34mm² conductors, PE insulation, and a 2-core twisted arrangement to help maintain signal integrity. The combination of AL/PET foil shielding and braided shielding reduces electromagnetic interference, supporting consistent data transmission during live production use. The PVC outer jacket (Ø5.8mm) provides flexibility and durability for touring and installation environments.

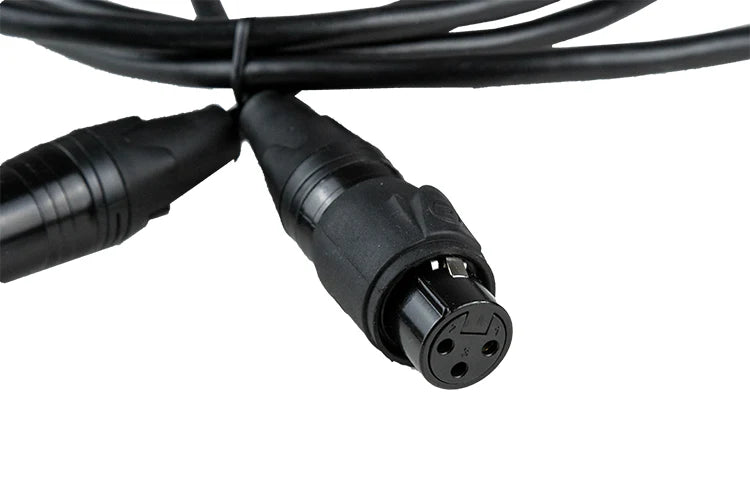

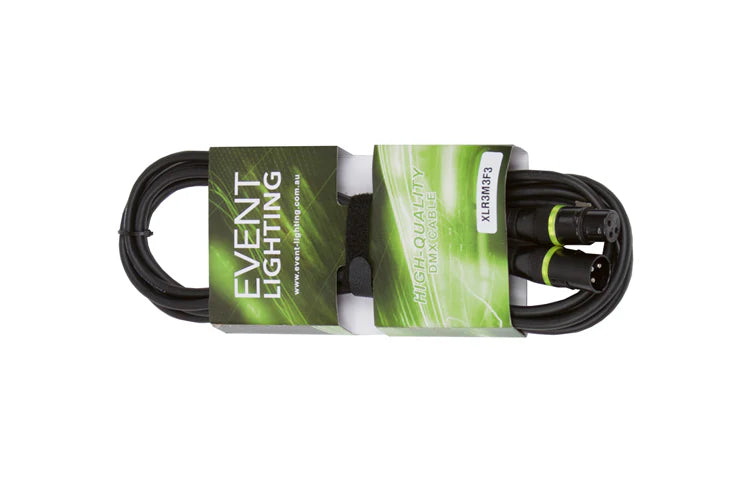

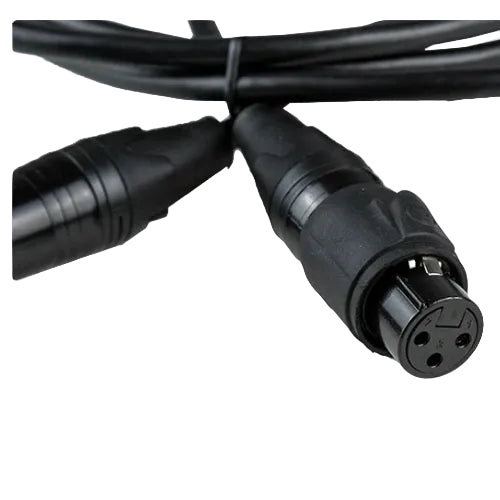

The cable is fitted with black metal 3-pin XLR connectors with metal boots and rubber glands for enhanced mechanical strength. Clear heat shrink and a yellow identification ring allow quick visual identification of DMX cables within larger systems.

Specifications

- Length: 3 metres (yellow ring)

- Connector type: 3-pin XLR male to 3-pin XLR female

- Conductor size: 0.34 mm²

- Core arrangement: 2 cores, twisted

- Shielding: AL/PET foil + braided shield

- Insulation: PE

- Outer jacket: PVC Ø5.8 mm

- Cable construction: 19 × 0.15mm core, 16 × 16 × 0.12 cotton filler, aluminium foil shield, 20 × 0.12 drain

- Connector finish: Black metal with metal boot and rubber gland

- Shipping weight: 0.21 kg

- Packaging dimensions: 300 × 100 × 30 mm

Features

- Professional 3-pin DMX cable

- 3m length for compact signal connections

- Shielded construction for stable signal transmission

- Heavy-duty metal XLR connectors

- Colour-coded identification for cable management

Ideal for

- Stage and theatre lighting control

- Live event production

- Touring lighting rigs

- Professional DMX network installations
