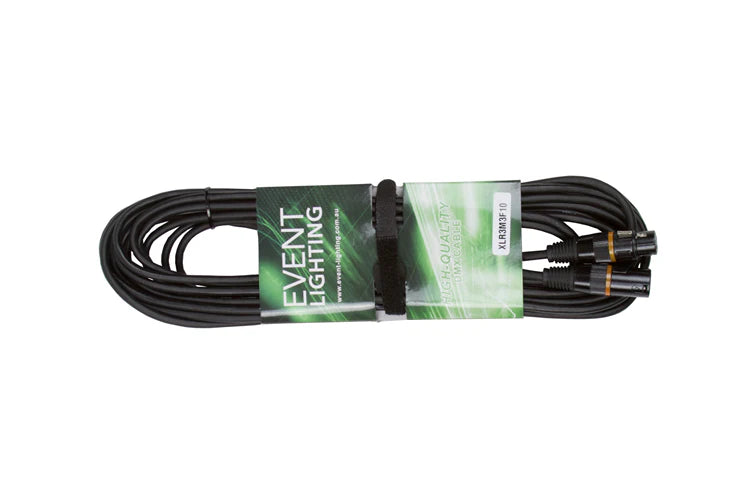

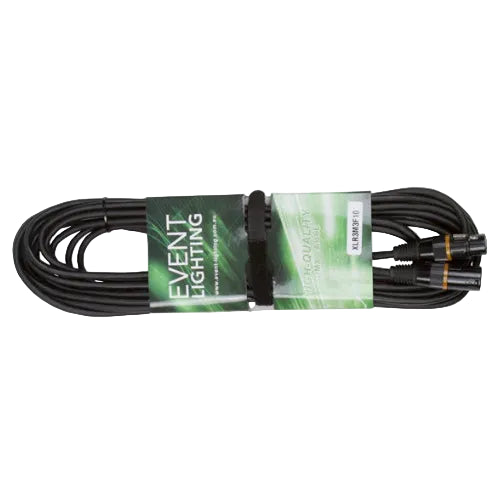

Event Lighting - XLR3M3F10 - Male 3 Pin XLR to Female 3 pin XLR cable - 10m Length

Event Lighting XLR3M3F10 3-Pin XLR DMX Cable – 10m

The Event Lighting XLR3M3F10 is a professional 3-pin XLR male to 3-pin XLR female DMX cable designed for reliable lighting control signal transmission in stage, theatre, and live production environments. With a 10-metre length, this cable is ideal for short-to-medium DMX runs between controllers, splitters, and lighting fixtures.

Built for stable data communication, the cable features 0.34mm² conductors, PE insulation, and a 2-core twisted arrangement to help maintain signal integrity. The combination of AL/PET foil shielding and braided shielding helps reduce electromagnetic interference, supporting consistent DMX performance. The outer PVC jacket (Ø5.8m, likely intended Ø5.8mm) provides flexibility and durability for touring and installation use.

The cable is fitted with black metal 3-pin XLR connectors with metal boots and rubber glands for enhanced mechanical strength. Clear heat shrink and an orange identification ring allow quick visual identification of DMX cables within larger lighting systems.

Specifications

- Length: 10 metres (orange ring)

- Connector type: 3-pin XLR male to 3-pin XLR female

- Conductor size: 0.34 mm²

- Core arrangement: 2 cores, twisted

- Shielding: AL/PET foil + braided shield

- Insulation: PE

- Outer jacket: PVC Ø5.8mm

- Cable construction: 19 × 0.15mm core, 16 × 16 × 0.12 cotton filler, aluminium foil shield, 20 × 0.12 drain

- Connector finish: Black metal with metal boot and rubber gland

- Shipping weight: 0.80 kg

- Packaging dimensions: 350 × 100 × 30 mm

Features

- Professional 3-pin DMX cable

- 10m length for short production runs

- Shielded construction for stable signal transmission

- Heavy-duty metal XLR connectors

- Colour-coded identification for cable management

Ideal for

- Stage and theatre lighting control

- Live event production

- Touring lighting systems

- Professional DMX network installations
