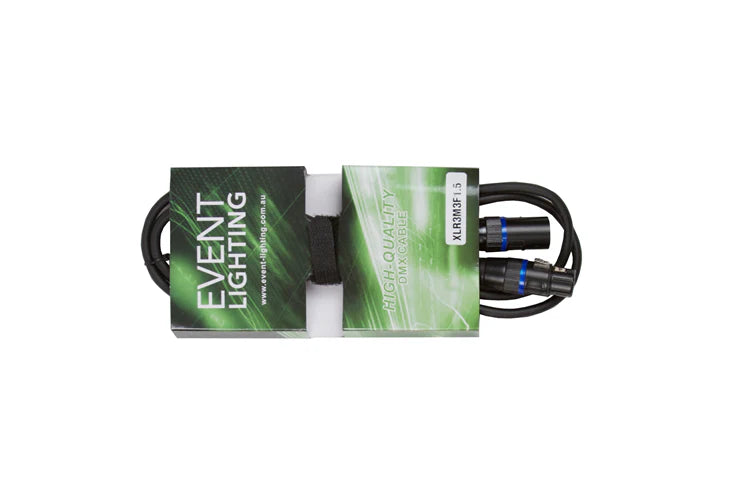

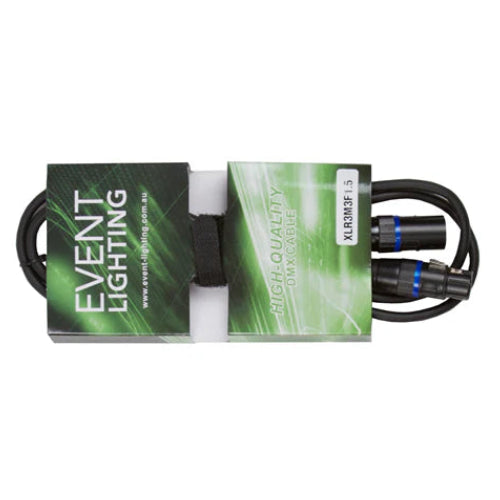

Event Lighting - XLR3M3F1.5 - Male 3 Pin XLR to Female 3 pin XLR cable - 1.5m Length

Event Lighting XLR3M3F1.5 3-Pin XLR DMX Cable – 1.5m

The Event Lighting XLR3M3F1.5 is a professional 3-pin XLR male to 3-pin XLR female DMX cable designed for reliable signal transmission in lighting control systems. With a compact 1.5-metre length, this cable is ideal for very short DMX patching between controllers, splitters, or nearby fixtures.

Built for stable data performance, the cable features 0.34mm² conductors, PE insulation, and a 2-core twisted arrangement to help maintain signal integrity. The combination of AL/PET foil shielding and braided shielding helps reduce electromagnetic interference and supports consistent DMX communication. The PVC outer jacket (Ø5.8mm) provides durability while maintaining flexibility for stage and production use.

The cable is fitted with black metal 3-pin XLR connectors with metal boots and rubber glands for improved mechanical strength. Clear heat shrink and a blue identification ring allow quick visual identification within larger DMX cable systems.

Specifications

- Length: 1.5 metres (blue ring)

- Connector type: 3-pin XLR male to 3-pin XLR female

- Conductor size: 0.34 mm²

- Core arrangement: 2 cores, twisted

- Shielding: AL/PET foil + braided shield

- Insulation: PE

- Outer jacket: PVC Ø5.8 mm

- Cable construction: 19 × 0.15mm core, 16 × 16 × 0.12 cotton filler, aluminium foil shield, 20 × 0.12 drain

- Connector finish: Black metal with metal boot and rubber gland

- Shipping weight: 0.15 kg

- Packaging dimensions: 250 × 100 × 30 mm

Features

- Professional 3-pin DMX cable

- Ultra-compact 1.5m length for neat patching

- Shielded construction for stable signal transmission

- Heavy-duty metal XLR connectors

- Colour-coded identification for cable management

Ideal for

- Stage and theatre lighting systems

- Live event production

- Touring lighting rigs

- Professional DMX installations
