THE DETAILS
Product information

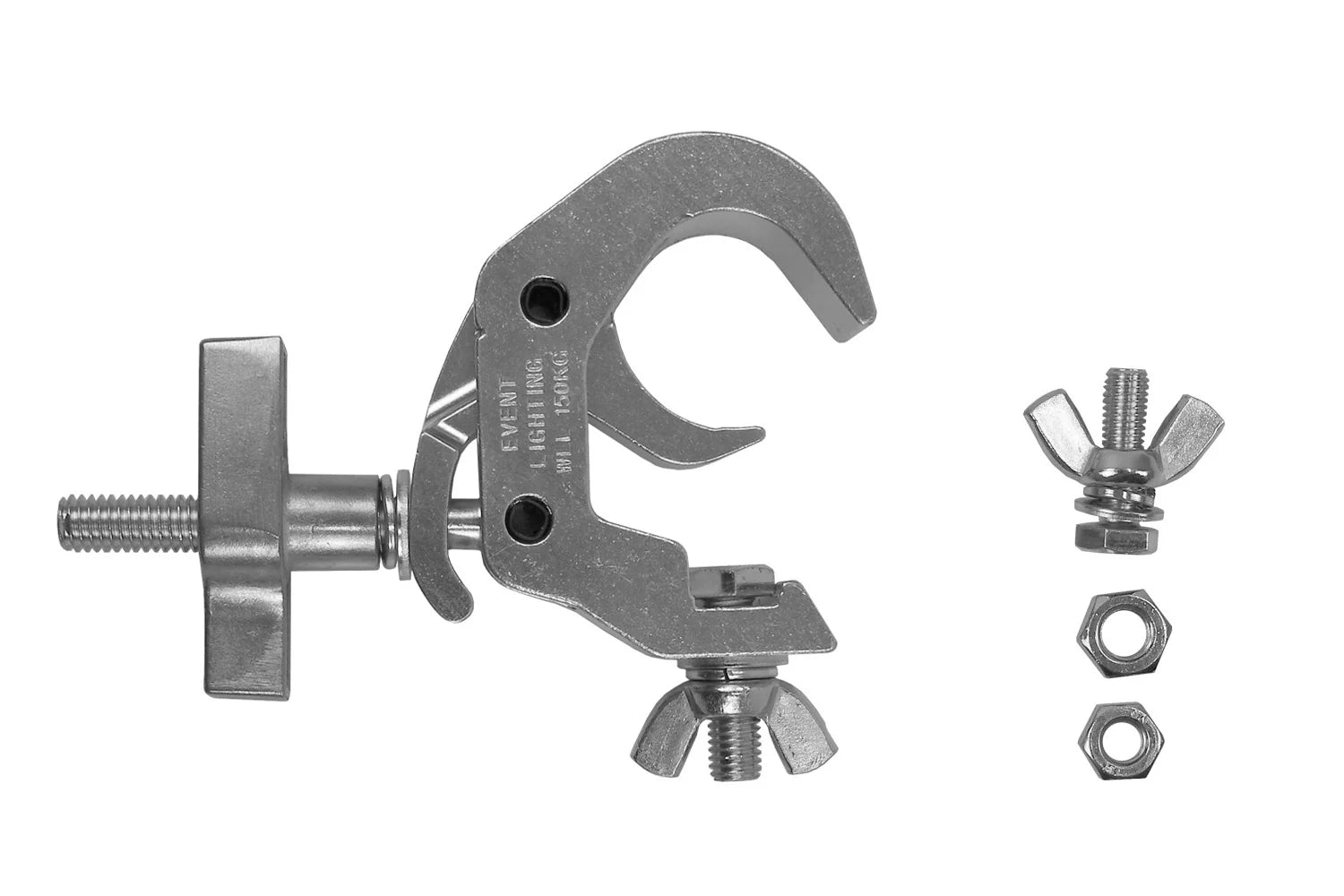

Event Lighting CLAMPT50S Aluminium Trigger Clamp – Silver (38–51mm)
The Event Lighting CLAMPT50S is a professional aluminium trigger clamp designed for secure and fast mounting on 38–51mm truss or tube systems. Built for stage, event, and production environments, this clamp offers a reliable and efficient rigging solution.
Manufactured from high-strength Aluminium 6061-T6, the clamp provides excellent durability while remaining lightweight for touring and installation use. It features a Working Load Limit (WLL) of 150kg, making it suitable for mounting lighting fixtures and production accessories.
The trigger-style mechanism allows for quick attachment and removal during setup and teardown, improving workflow efficiency in live event environments. The clamp is supplied with M12 x 30 and M10 x 30 bolts for flexible installation options.
Specifications
- Pipe size: Ø38–51mm tube
- Width: 30mm
- Working Load Limit (WLL): 150kg
- Bolt options: M12 x 30 & M10 x 30
- Material: Aluminium 6061-T6
- Weight: 0.48kg
- Colour: Silver
Features
- Trigger clamp design for fast installation
- Suitable for 38–51mm truss or pipe
- Lightweight yet strong aluminium construction
- 150kg WLL for professional lighting equipment
- Supplied with mounting bolts
Ideal for
- Stage and theatre lighting
- Live events and touring productions
- Exhibition and conference installations
- Professional rigging and production setups
