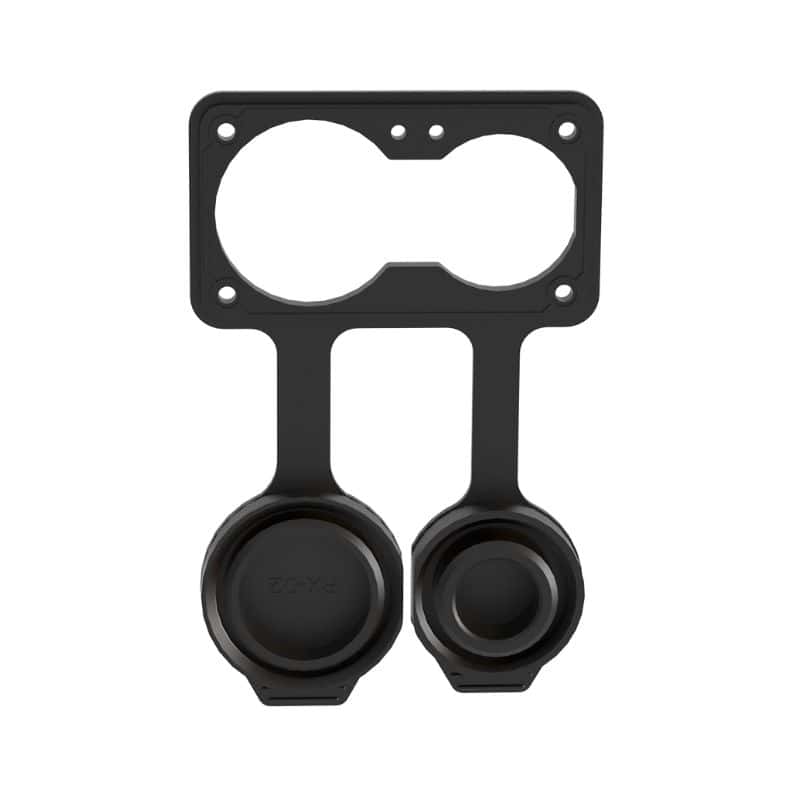

Seetronic CNAC-PX IP65 Protective Cover for SAC3PX
Protect the unused power input and power output connections of the Seetronic SAC3PX Combined Power IN/OUT Panel Connector with the Seetronic CNAC-PX Protective Cover.
Purpose-designed specifically for the SAC3PX, the CNAC-PX is a VMQ silicone-rubber sealing cover that provides IP65 protection against dust and water when correctly installed as part of the compatible Seetronic system.
Rather than improvising covers or leaving unused equipment power connections exposed to the surrounding environment, the CNAC-PX integrates directly into the SAC3PX panel installation and provides dedicated protective caps for the connector interfaces.
This makes it particularly useful for professional equipment used across:
- Live events
- Touring production
- Entertainment lighting
- LED fixtures
- Effects equipment
- Theatre
- Festivals
- Professional AV
- Broadcast
- Film and television
- Exhibitions
- Outdoor production equipment
- Touring racks
- Custom equipment
- Technical enclosures
- Equipment-hire fleets
The CNAC-PX is a small accessory, but in professional equipment design it can be an important part of maintaining the environmental protection of the overall connector installation.
Purpose-Built for the Seetronic SAC3PX
The CNAC-PX is designed specifically for:
Seetronic SAC3PX
combined Power IN / Power OUT panel connectors.
The SAC3PX incorporates both:
Power IN
and:
Power OUT
within one compact panel-mounted assembly.
The CNAC-PX complements that design by providing dedicated rubber sealing covers for the connector openings when they require protection.
This is not a universal connector cover.
For correct fit and environmental performance, it should be used with the Seetronic connector model for which it was designed.
Official Seetronic Protective Cover
Seetronic identifies the CNAC-PX product type as:
Protective Cover
and describes it as a:
Rubber sealing cover for SAC3PX.
This is a more accurate description than simply calling the product a loose waterproof gasket.
The accessory incorporates the sealing interface and protective covers required for the compatible SAC3PX installation.
IP65 Protection
Seetronic specifies the CNAC-PX at:
IP65
for protection against dust and water.
IP65 provides a useful level of environmental protection for appropriately designed professional equipment used in production environments where connectors may encounter:
- Dust
- Dirt
- Moisture
- Rain exposure
- Water spray
- Outdoor conditions
- Repeated transport
- Temporary installations
The IP rating should always be considered in the context of the complete installation.
Installing an IP65 cover does not automatically make an entire:
- Lighting fixture
- Rack
- Distribution enclosure
- AV product
- Electrical enclosure
IP65.
The complete equipment assembly must also correctly address:
- Panel sealing
- Enclosure joints
- Fasteners
- Cable entries
- Ventilation
- Drainage
- Other connectors
- Equipment construction
to achieve the required equipment-level environmental rating.
Dust Protection
Production equipment can encounter significant dust during:
- Outdoor festivals
- Touring
- Warehousing
- Transport
- Temporary installations
- Exhibition builds
- Dry event sites
Protecting unused connector interfaces helps reduce the opportunity for dirt and contaminants to enter the connection area.
The CNAC-PX provides a dedicated Seetronic solution for protecting the SAC3PX rather than relying on tape, temporary plastic covers or improvised caps.
Water Protection
Outdoor production environments can expose equipment to:
- Rain
- Moisture
- Splash
- Cleaning activity
- Condensation
- General event-site weather
The CNAC-PX helps provide the manufacturer-specified IP65 protection for the compatible SAC3PX installation.
As with any weather-resistant equipment system, the complete product must still be correctly designed and installed for the environmental conditions in which it will operate.
VMQ Silicone Rubber Construction
Seetronic specifies the CNAC-PX protective cover material as:
VMQ
which is a silicone-rubber material.
Silicone rubber is well suited to sealing applications because it provides the flexibility required for a protective cover to fit correctly around the compatible equipment interface.
The flexible construction allows the cover to be:
- Integrated into the panel assembly
- Opened when a connector is required
- Closed when the connector is not in use
while remaining permanently associated with the equipment.
Integrated Protective Caps
The CNAC-PX is designed around the dual-function architecture of the SAC3PX.
The SAC3PX provides both:
- Power input
- Power output
connections.
The CNAC-PX therefore provides protection around the combined connector assembly rather than protecting only one individual socket.
This keeps the protection system:
- Compact
- Integrated
- Purpose-built
- Neat
on the equipment panel.
Better Than Improvised Connector Protection
Professional equipment deserves professional protection.
Without a purpose-designed cover, technicians may be tempted to use temporary solutions such as:
- PVC tape
- Gaffer tape
- Plastic bags
- Loose caps
- Temporary covers
These methods may be inconvenient and are not necessarily designed to provide a defined environmental protection rating.
The CNAC-PX is engineered specifically for the SAC3PX and forms part of the intended Seetronic equipment architecture.
Ideal for Professional Lighting Fixtures
Entertainment lighting equipment frequently uses locking power connectors for:
- Power input
- Power linking
- Fixture daisy-chaining
The SAC3PX provides both power functions in a compact assembly.
Adding the CNAC-PX can be particularly useful on lighting products designed for:
- Festivals
- Outdoor stages
- Temporary installations
- Touring
- Corporate events
- Theatre
where unused power connections may otherwise be exposed.
LED Lighting Equipment
Professional LED fixtures commonly require:
- Incoming mains power
- Downstream power linking
while keeping rear-panel space to a minimum.
The SAC3PX combined connector is particularly suited to this architecture, and the CNAC-PX provides the corresponding environmental protective cover.
Potential applications include:
- LED wash fixtures
- Architectural fixtures
- Effects fixtures
- Outdoor production lighting
- Touring LED products
- Custom lighting equipment
Effects Equipment
Special-effects equipment is frequently installed:
- Side stage
- Behind scenic elements
- On outdoor stages
- In temporary technical areas
- Near atmospheric effects
where environmental contamination can be more significant than in a permanent indoor installation.
The CNAC-PX can provide a useful additional layer of protection around the compatible SAC3PX connector assembly.
Touring Equipment
Touring equipment experiences repeated:
- Bump-in
- Operation
- Pack-down
- Transport
- Storage
- Reinstallation
Connector interfaces may be exposed during any of these processes.
An integrated protective cover has the advantage of remaining attached to the equipment rather than requiring technicians to locate separate loose connector caps during every setup.
Equipment-Hire Inventory
Rental and production equipment needs to operate reliably across a wide variety of sites.
A connector cover that remains part of the equipment installation can help simplify:
- Preparation
- Deployment
- Pack-down
- Inspection
- Maintenance
for equipment-hire companies managing substantial production inventories.
Outdoor Festival Equipment
Festivals can expose technical systems to:
- Dust
- Wind
- Rain
- Moisture
- Mud
- Rapid weather changes
Equipment intended for these environments must be designed as a complete environmental system.
Where the SAC3PX forms part of that design, the CNAC-PX provides the dedicated Seetronic protective-cover solution for the connector.
Theatre Technical Systems
Theatre equipment may not experience the same weather exposure as an outdoor festival, but protective connector covers can still be valuable for:
- Touring racks
- Portable lighting equipment
- Stage machinery
- Temporary power equipment
- Touring productions
- Venue technical systems
particularly when equipment is frequently moved and stored.
Film and Television Production
Film and television systems often need to operate across:
- Studios
- Locations
- Outdoor shoots
- Temporary technical installations
- Mobile production systems
where dust and weather can vary significantly from day to day.
A sealed connector architecture can be particularly useful for equipment manufacturers and technical departments building equipment for location work.
Broadcast Equipment
Broadcast production equipment may be installed in:
- Outside-broadcast systems
- Temporary compounds
- Outdoor sporting events
- Touring broadcast infrastructure
- Mobile production racks
The CNAC-PX can form part of the protection strategy for suitably designed equipment using the SAC3PX power connector.
Exhibition and Trade-Show Equipment
Exhibition systems may be:
- Transported
- Reconfigured
- Installed
- Removed
- Stored
many times throughout their service life.
Protecting unused connector interfaces can reduce exposure to debris and contamination while equipment is not connected.
Custom Equipment Panels
The CNAC-PX is particularly relevant to technical builders creating custom:
- Rack panels
- Distribution boxes
- Lighting equipment
- AV equipment
- Touring systems
- Effects equipment
- Control systems
- Technical enclosures
using the Seetronic SAC3PX.
Because the cover installs as part of the connector assembly, it can be incorporated into the equipment design from the beginning rather than added as an afterthought.
Front-Panel Integration
Seetronic’s installation method positions the protective cover together with the SAC3PX panel connector.
The manufacturer describes the installation sequence as:
- Position the protective cover on the rear side of the SAC3PX socket.
- Install the connector assembly from the front of the equipment panel.
- Tighten the mounting screws correctly.
This integrates the sealing accessory into the panel connection rather than relying on a completely separate external cover.
Recommended Mounting Torque
Seetronic specifies a mounting-screw torque of:
0.5Nm
for the SAC3PX / CNAC-PX installation.
Correct mounting is important for:
- Connector retention
- Panel alignment
- Gasket compression
- Environmental sealing
- Long-term reliability
Excessive or insufficient tightening can compromise an otherwise correctly designed installation.
Always follow the current Seetronic installation information when integrating the connector into equipment.
Operating Temperature
Seetronic specifies the CNAC-PX for:
-30°C to +80°C
operation.
This broad temperature range supports professional equipment intended for a wide variety of production environments.
The overall equipment operating range must still be determined by the lowest-rated component in the complete product.
SAC3PX and CNAC-PX Are Separate Products
The protective cover is not included with the Seetronic SAC3PX connector.
Seetronic specifically lists:
CNAC-PX
as the separate protective rubber cover for the SAC3PX.
This means customers building environmentally protected SAC3PX installations should order the CNAC-PX separately when required.
CNAC-PX vs CNAC-PX-67
These are two different products and should not be confused.
CNAC-PX
Designed for:
SAC3PX
Protection:
IP65
CNAC-PX-67
Designed for:
SAC3PX-67
Protection:
IP67
The standard CNAC-PX should not be advertised as the IP67 cover simply because Seetronic also produces a visually similar IP67 accessory.
Select the accessory that matches the exact connector model.
SAC3PX vs SAC3PX-67
Seetronic also manufactures two distinct combined power connector versions.
SAC3PX
- X Series IP65
- Combined Power IN / Power OUT
- Uses CNAC-PX protective cover
SAC3PX-67
- X Series IP67
- Separate higher-protection connector model
- Uses CNAC-PX-67 protective cover
The components should not be mixed or described interchangeably.
X Series Accessory
The CNAC-PX belongs with Seetronic’s:
X Series IP65
power connector system.
It should be described using Seetronic’s own X Series terminology.
The compatible SAC3PX is a Seetronic locking combined power connector and should not be represented as belonging to another manufacturer’s proprietary connector family.
Not an Electrical Connector
The CNAC-PX contains no electrical contacts.
It is an:
Environmental protective accessory
for the SAC3PX.
Its purpose is not to:
- Carry current
- Make an electrical connection
- Convert connectors
- Adapt power systems
Its role is solely to provide environmental protection around the compatible connector installation.
No Electrical Rating Required
Because the CNAC-PX is a protective silicone-rubber accessory rather than an electrical connector, specifications such as:
- Current
- Voltage
- Contact resistance
- Dielectric strength
belong to the SAC3PX itself and should not be attributed to the CNAC-PX.
Keeping the electrical connector specification separate from the cover specification makes the product page clearer and technically more accurate.
Does the Cover Make Equipment Waterproof?
Not automatically.
The CNAC-PX is specified to provide:
IP65 dust and water protection
when correctly used with the compatible connector installation.
It does not independently determine the environmental rating of the entire piece of equipment.
A professional enclosure must also address:
- Panel openings
- Other connectors
- Fasteners
- Cable glands
- Equipment seams
- Ventilation
- Drainage
to achieve an overall equipment rating.
Not an IP67 Accessory
The CNAC-PX should not be described as:
IP67
The current manufacturer rating for CNAC-PX is:
IP65.
If an IP67 Seetronic combined connector system is required, the relevant products are:
SAC3PX-67 + CNAC-PX-67.
Correct Model Identification Matters
Seetronic manufactures a number of visually related sealing accessories.
Always confirm:
- Connector model
- Cover model
- Protection rating
before ordering.
For the standard SAC3PX, the matching accessory is:
CNAC-PX.
Professional Equipment Manufacturing
For equipment manufacturers, specifying the correct connector accessory during the original design stage can provide several advantages.
It enables:
- Correct panel layout
- Correct mounting-hole planning
- Proper environmental sealing
- Consistent production assembly
- Cleaner finished equipment
rather than trying to retrofit protection later.
Production Workshops
Technical production workshops building custom equipment can keep CNAC-PX covers alongside SAC3PX connectors as part of a complete component system.
This is particularly useful for:
- Rental companies
- Lighting manufacturers
- Touring technicians
- AV integrators
- Special-effects workshops
- Custom equipment builders
Installation Planning
Before installation:
- Confirm the connector is SAC3PX
- Confirm CNAC-PX is the required protection level
- Check panel dimensions
- Follow current Seetronic mounting instructions
- Use appropriate panel hardware
- Observe the specified 0.5Nm mounting torque
- Confirm the finished equipment meets its required electrical and environmental standards
Electrical Safety
The CNAC-PX is associated with equipment carrying mains power through the compatible SAC3PX connector.
Installation of the SAC3PX and associated equipment wiring should therefore only be carried out by appropriately competent persons and in accordance with the electrical requirements applicable to the finished product and installation.
The presence of an IP-rated connector cover does not remove the need for correct electrical design, earthing, wiring, enclosure construction and certification.
Product Specifications
Brand: Seetronic
Model: CNAC-PX
Product Type: Protective cover / rubber sealing cover
Compatible Connector: Seetronic SAC3PX
Connector Series: Seetronic X Series IP65
Material: VMQ silicone rubber
Protection Class: IP65
Protection Function: Dust and water protection for compatible SAC3PX installation
Temperature Range: -30°C to +80°C
Installation: Integrated with SAC3PX panel mounting
Recommended Mounting Torque: 0.5Nm
Electrical Contacts: None
Electrical Function: None – protective accessory only
SAC3PX Included: No
IP67 Version: Separate CNAC-PX-67 for SAC3PX-67
Key Features
- Genuine Seetronic accessory
- Specifically designed for SAC3PX
- VMQ silicone-rubber construction
- IP65 dust and water protection
- Dedicated Power IN / Power OUT protective caps
- Integrated panel installation
- -30°C to +80°C operating range
- Suitable for professional lighting and AV equipment
- Useful for touring and outdoor production systems
- Ideal for custom equipment and technical enclosures
- Purpose-designed alternative to improvised connector covers
- Separate accessory for the SAC3PX combined power connector
Why Choose the Seetronic CNAC-PX?
Choose the CNAC-PX when a Seetronic SAC3PX installation requires:
- Purpose-designed connector protection
- IP65 environmental protection
- Dust protection
- Water protection
- Flexible VMQ silicone-rubber construction
- Integrated protective caps
- Professional equipment-panel installation
- Compatibility with the standard SAC3PX
- A manufacturer-designed solution rather than an improvised cover
It is a simple but valuable accessory for equipment intended to operate reliably across professional touring, live-event and technical production environments.
Why Buy Seetronic CNAC-PX from GigLife?
GigLife supplies professional connectors, cables, adaptors, consumables and technical accessories specifically for the entertainment and production industries.
With more than 25 years of hands-on live entertainment industry experience, GigLife understands that building reliable production equipment is often about getting the small details right.
A connector may only be one component of a piece of equipment, but:
- Correct protection
- Correct strain relief
- Correct sealing
- Correct installation
- Correct mating components
all contribute to how equipment performs in the real world.
GigLife works with the requirements of:
- Lighting technicians
- Audio technicians
- Production technicians
- Theatre departments
- Touring crews
- Production companies
- AV integrators
- Equipment manufacturers
- Film and television departments
- Broadcast operations
- Festivals
- Exhibition contractors
- Equipment-hire companies
- Schools and performing arts centres
- Technical workshops
Whether you are manufacturing a lighting fixture, building a touring rack, repairing hire inventory or designing a custom production enclosure, GigLife supplies professional components selected by people who understand how production equipment is actually used.
Orders are dispatched from Brisbane, with Australia-wide shipping available.
GigLife is proudly by the professionals… for the professionals.
