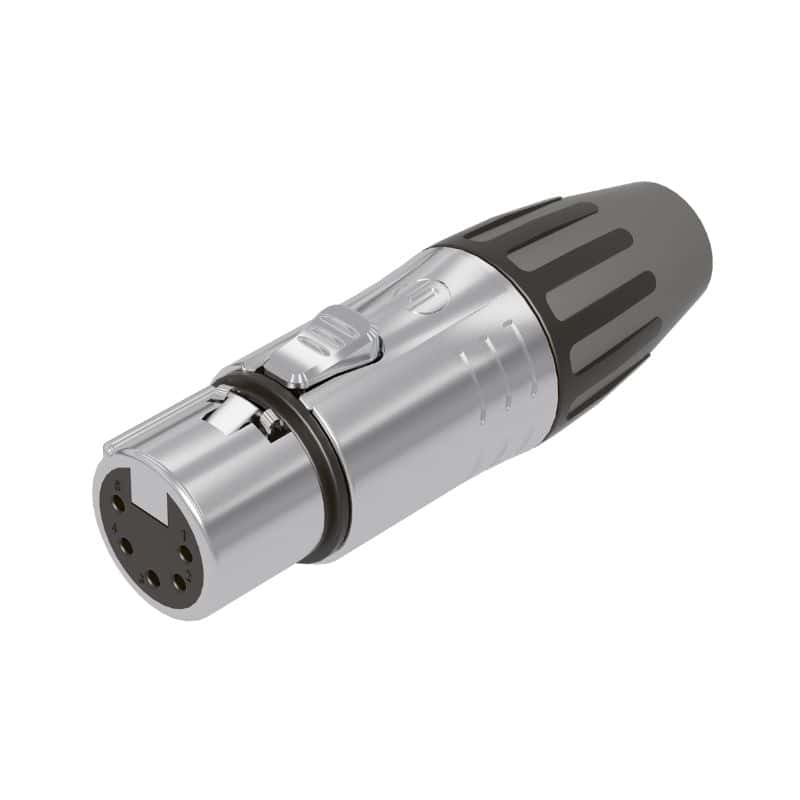

Why choose the Seetronic SCMF5 Female 5-Pin XLR Connector?
Reliable control and signal connections are essential across theatre, concerts, touring productions, audiovisual systems, film, television, broadcast and professional installations. The Seetronic SCMF5 Female 5-Pin XLR Connector is designed for constructing, repairing and maintaining professional five-core control and signal cables.
The SCMF5 combines a chrome-plated metal housing with silver-plated electrical contacts, delivering a familiar professional connector format suitable for regularly handled production equipment. Its cable-mounted female configuration can be used with compatible male five-pin XLR connectors and chassis sockets across lighting-control, communications and specialist low-voltage systems.
A secure latch-locking interface helps maintain a positive connection until deliberately released. The connector also includes two cable clamps for different cable diameters, a compact no-ring housing and an integrated polyurethane sleeve designed to reduce bending stress where the cable exits the connector.
Designed for Professional Lighting-Control Systems
Five-pin XLR connectors are commonly used throughout professional lighting-control systems. When assembled using correctly specified data cable, the Seetronic SCMF5 can be used to build or repair leads connecting lighting consoles, data splitters, dimmers, intelligent fixtures and other compatible control equipment.
Potential applications include:
- Five-pin DMX control cables
- Lighting-console connections
- DMX splitters and distribution equipment
- Intelligent lighting fixtures
- LED lighting systems
- Dimmer and relay equipment
- Theatre lighting networks
- Touring lighting packages
- Architectural lighting-control systems
- Film and television lighting equipment
- Conference and exhibition systems
- Compatible special-effects equipment
The female connector is typically installed at the corresponding end of a five-pin cable assembly according to the direction and configuration required by the connected equipment. Connector gender, wiring and signal flow should always follow the equipment manufacturer’s instructions.
A five-pin XLR connector does not determine the performance of the complete cable. For DMX and other digital-control applications, the cable itself must have the correct electrical characteristics, shielding and impedance for the intended data system.
Female Five-Pin XLR Configuration
The SCMF5 is a cable-mounted female XLR connector containing five electrical contacts. Its enclosed female contact arrangement mates with a compatible five-pin male XLR connector or chassis socket.
This format may be used throughout:
- Theatre lighting departments
- Concert touring systems
- Festival production packages
- Film and television studios
- Broadcast facilities
- Conference centres
- Exhibition installations
- Performing arts venues
- Schools and universities
- Production-company cable fleets
- Lighting-hire inventory
- Permanent control installations
The latch-locking mechanism helps prevent accidental separation caused by routine cable movement or vibration. Seetronic specifies insertion and withdrawal forces of no more than 20N and a service life exceeding 1,000 mating cycles.
These characteristics support frequent professional use when the connector is correctly assembled, handled and maintained.
Chrome-Plated Metal Housing
The Seetronic SCMF5 features a zinc-alloy housing with chrome plating. The metal shell protects the internal contact insert and cable terminations while providing the traditional polished appearance associated with professional XLR connectors.
The chrome-bodied connector is suitable for:
- Lighting-control racks
- Touring cable packages
- Theatre technical systems
- Broadcast studios
- Film and television facilities
- Equipment cases
- Conference and exhibition installations
- Production workshops
- Venue cable inventory
- Permanent AV systems
Seetronic uses an internal-thread housing design intended to provide mechanical stability during routine handling and use in demanding production environments.
For stages, black-box theatres or camera-facing environments where a less reflective finish is preferred, the black-bodied Seetronic SCMF5-B may be a more suitable alternative.
Silver-Plated Contacts
The SCMF5 uses copper-alloy contacts with silver-plated contact surfaces. Seetronic publishes a contact resistance of no more than 3mΩ, initial insulation resistance greater than 10GΩ and capacitance between contacts of no more than 7pF.
Published electrical specifications include:
- Connection type: five-contact XLR
- Connector gender: female
- Rated current per contact: 7.5A
- Rated voltage: below 50V
- Contact resistance: no more than 3mΩ
- Capacitance between contacts: no more than 7pF
- Dielectric strength: 1.5kV DC
- Initial insulation resistance: greater than 10GΩ
- Maximum conductor size: 1.0mm² or 18 AWG
These specifications support professional low-voltage data, signal and control applications when the connector is assembled using appropriate cable and installed within a compatible system.
The published current rating does not make the SCMF5 suitable for AC mains power. It is an XLR signal and control connector and must not be substituted for a dedicated mains power connector.
Dual Cable Clamps for Different Cable Sizes
The Seetronic SCMF5 is supplied with two cable clamps to accommodate different cable outside diameters:
- Black cable clamp: 3.5mm to 6mm
- White cable clamp: 6mm to 8mm
This allows technicians to use the connector with a range of compact data cables, installation cables and flexible professional production cables.
Selecting the correct cable clamp is important because the strain-relief system should grip the cable’s outer jacket securely without placing unnecessary pressure directly on the internal conductors or solder joints.
Cable that is too small may move inside the connector and transfer mechanical stress to the terminations. Cable that is too large may prevent the clamp, boot or housing from assembling correctly.
The selected cable must also have the correct conductor arrangement, electrical performance, shielding, flexibility and environmental suitability for the intended application.
Compact No-Ring Housing Design
The SCMF5 incorporates a compact no-ring housing intended to reduce the connector’s overall footprint. This can be useful in equipment racks, data splitters and other technical systems where several connectors may be positioned close together.
Potential applications include:
- Lighting-control racks
- DMX distribution equipment
- High-density patching systems
- Touring cable looms
- Custom installation panels
- Lighting fly racks
- Theatre control systems
- Broadcast wiring
- AV equipment packages
- Production workshop cable builds
The streamlined design also reduces the number of separate external components that technicians need to manage during assembly.
Enough clearance should still be provided around the completed connection so the latch can be operated and the cable can exit without excessive bending.
Cable-Bend Protection and Strain Relief
The connector boot incorporates a polyurethane sealing sleeve designed to reduce bending pressure where the cable exits the connector. This area can experience considerable mechanical stress when production cables are repeatedly coiled, transported and deployed.
Effective strain relief can help reduce:
- Movement at soldered terminations
- Cable-jacket damage
- Sharp bending near the connector
- Stress created during cable coiling
- Damage from frequent setup and pack-down
- Premature cable failure
- Intermittent signal or control faults
The polyurethane sleeve provides bend-stress protection but does not make the SCMF5 waterproof.
Completed cables should still be coiled correctly, protected during transport and inspected regularly for loose housings, damaged jackets, worn strain-relief components or intermittent operation.
Built for Theatre, Touring and Live Events
Lighting-control and production cables may be connected, disconnected, coiled and transported hundreds of times throughout their working life. Seetronic specifies the SCMF5 for more than 1,000 mating cycles, supporting repeated use when it is correctly assembled and maintained.
The connector is suitable for cable inventories maintained by:
- Theatre companies
- Concert touring productions
- Lighting-hire suppliers
- Festival production teams
- Performance venues
- Schools and performing arts centres
- Conference centres
- AV production companies
- Exhibition contractors
- Production workshops
The locking interface helps maintain a reliable connection during performances, rehearsals, presentations and installations where cables may be exposed to routine movement.
Connectors should be inspected regularly for damaged latches, loose housings, contaminated contacts, worn plating, cable movement or damaged strain-relief components.
Designed for Film, Television and Broadcast Environments
Film, television and broadcast departments use five-pin XLR connections throughout compatible studio-lighting, location-lighting, communications and specialist production systems.
The SCMF5 may be incorporated into suitable cable assemblies supporting:
- Studio-lighting control
- Film and television lighting consoles
- Location-lighting systems
- DMX distribution
- Broadcast studio lighting
- Production-control equipment
- Lighting equipment racks
- Mobile production systems
- Special-effects control equipment
- Temporary studio installations
- Outside-broadcast lighting packages
- Custom technical equipment
Its compact format can be useful inside mobile racks, equipment cases and production workboxes where space is limited.
Reliable cable construction and effective strain relief are particularly important in location-production environments where equipment is frequently transported and expected to operate under tight production schedules.
Professional Audio and Communications Applications
Five-pin XLR connectors may also be used by compatible professional audio, communications and intercom systems.
Potential applications may include:
- Compatible intercom headsets
- Production communications systems
- Stereo microphone connections
- Specialist audio equipment
- Control and tally systems
- Custom low-voltage equipment
Pin assignments can vary considerably between equipment manufacturers and system types. A five-pin XLR cable wired for lighting control should not automatically be connected to an audio, headset or communications system.
Completed cables should be clearly labelled with their intended purpose, pin configuration and compatible equipment to reduce the risk of incorrect patching.
Indoor IP40 Protection
The Seetronic SCMF5 carries an IP40 protection classification and is intended for indoor or otherwise protected professional environments. It is not a waterproof or weather-resistant connector.
Suitable protected environments include:
- Indoor theatres
- Broadcast facilities
- Lighting-control racks
- Conference centres
- Exhibition halls
- Production workshops
- Indoor concert venues
- Film and television studios
- Recording facilities
- Protected technical areas
For outdoor events, exposed filming locations or applications where connectors may encounter rain, moisture or significant dust, an appropriately rated weather-resistant XLR connector should be selected.
Seetronic specifies an operating-temperature range from -30°C to +80°C, although the complete cable assembly must also remain within the operating limits of the selected cable and connected equipment.
Professional Cable Assembly and Testing
The SCMF5 uses solder terminations and accepts conductors up to 1.0mm² or 18 AWG. Seetronic lists its solderability as compliant with IEC 68-2-20.
Correct assembly should include:
- Sliding the boot and cable clamp onto the cable before soldering
- Carefully stripping the outer cable jacket
- Preserving shielding and conductor insulation
- Preparing conductors to the correct length
- Following the required pin assignment
- Creating clean and mechanically secure solder joints
- Preventing loose strands or exposed conductors
- Selecting the correct cable clamp
- Securing the connector housing
- Confirming the strain relief grips the outer jacket
Before entering service, the completed cable should be tested for continuity, correct pin wiring, shorts between contacts and shielding integrity.
For DMX and other control applications, the cable construction and pin configuration should follow the requirements of the connected equipment and applicable system standards.
Colour-Coded Boots for Cable Identification
Seetronic offers compatible replacement boots in multiple colours, including red, orange, yellow, green, blue, grey, brown, black, white and purple. These accessories can support cable identification and inventory management across venues, touring productions and technical departments.
Colour coding may be used to identify:
- Cable lengths
- Different stages
- Lighting departments
- Signal or control types
- Equipment owners
- Touring packages
- Tested cable groups
- Venue inventory
- Production destinations
- Separate technical systems
There is no universal meaning assigned to every boot colour, so each organisation’s cable-identification system should be documented and communicated to its crew.
