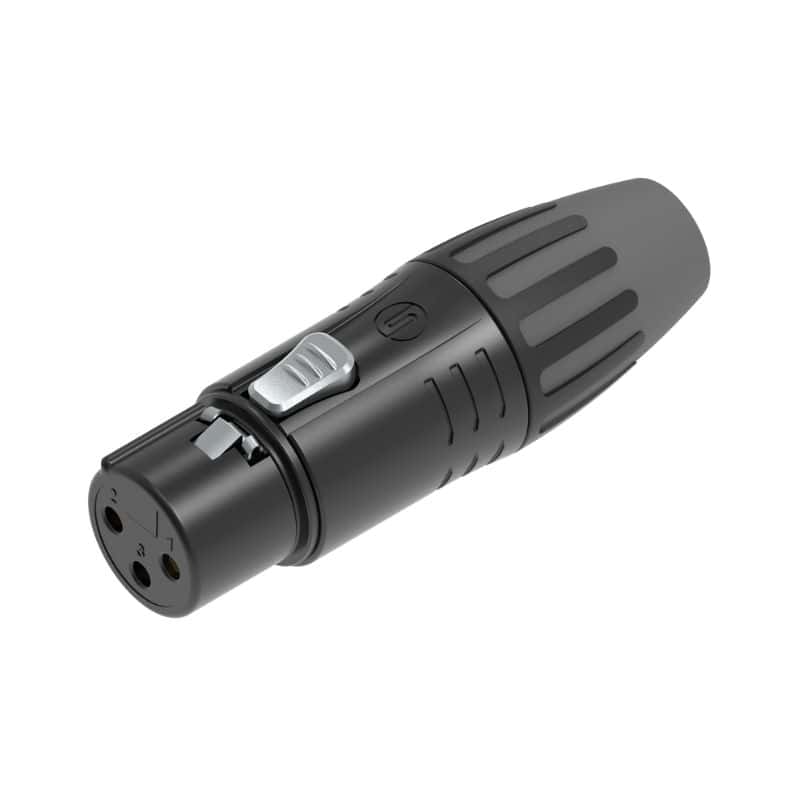

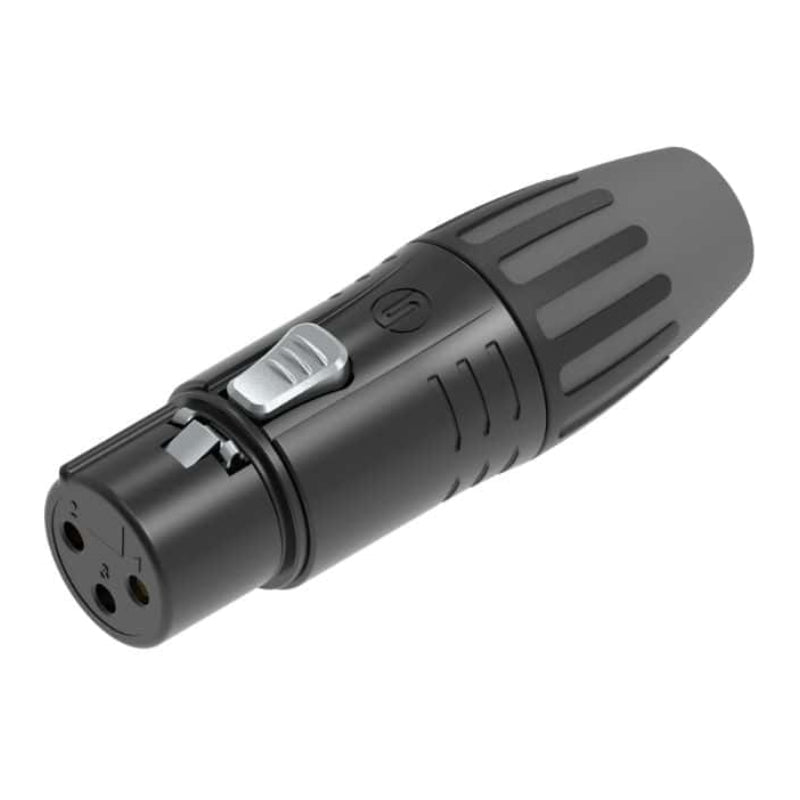

Seetronic - SCMF3B - Female 3 pin XLR connector (black body & silver contacts)

Seetronic SCMF3B Female 3-Pin XLR Connector (Black Body, Silver Contacts)

The Seetronic SCMF3B is a professional 3-core female XLR cable connector featuring a black plated metal housing and silver-plated contacts, designed for reliable signal transmission in professional audio and lighting control systems.

This connector is built with a durable internal-thread metal shell design, providing strong mechanical stability and resistance to mechanical stress in demanding stage, touring, and installation environments. The internal threading improves structural strength and helps the connector withstand vibration and load stress under real-world operating conditions.

The SCMF3B includes two cable clamps to support different cable diameters: a black clamp for 3.5mm–6mm cables and a white clamp for 6mm–8mm cables, allowing flexible and efficient assembly during installation.

The connector features a compact no-ring housing design, helping reduce connector footprint and making it suitable for high-density wiring systems where space optimisation is important. The boot is fitted with a polyurethane sealing sleeve, providing enhanced protection against cable bending stress and helping improve cable longevity during repeated movement.

Coloured boots are available for identification and cable coding, supporting organised system configuration and maintenance workflows.

Specifications

- Connector type: 3-pin female XLR

- Housing: Black plated metal shell

- Contact material: Silver-plated contacts

- Cable diameter compatibility: 3.5mm – 8mm

Features

- Internal-thread metal housing for improved durability

- Dual cable clamp system for flexible cable sizing

- Compact no-ring ergonomic design

- Polyurethane sealing sleeve for bend stress protection

- Colour coding boot compatibility

Ideal for

- Professional audio signal distribution

- DMX lighting control networks

- Stage, theatre, and touring production

- Broadcast and studio installations

- Permanent and temporary wiring setups
