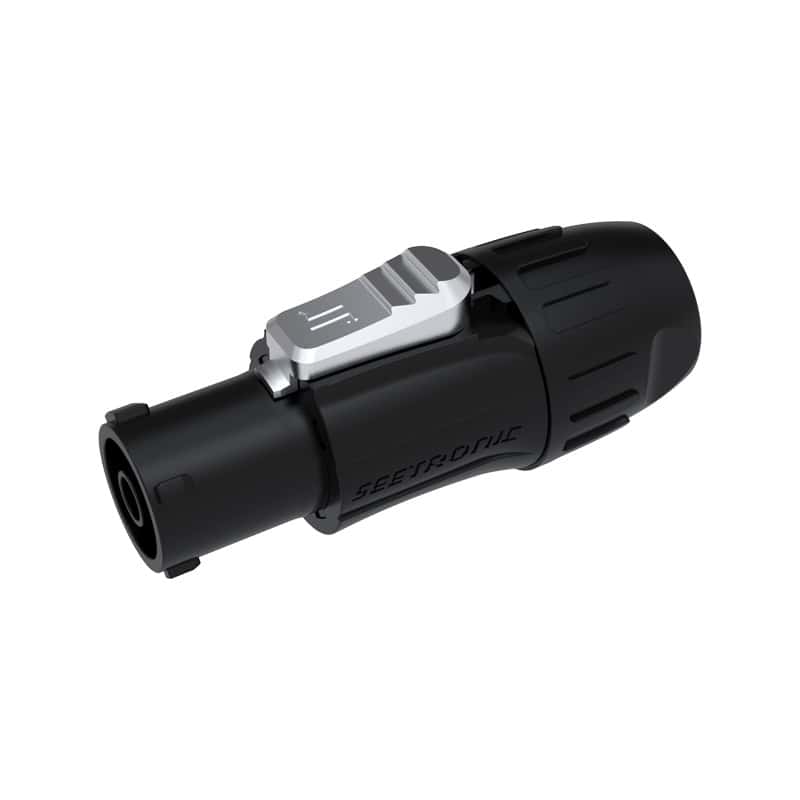

Why the Seetronic SAC3FX Is a Professional Power Connector
Secure power connections are essential across live events, theatre, touring, audiovisual production, film, television and broadcast environments. The Seetronic SAC3FX IP65 Power Connector is a lockable three-core female cable connector designed for reliable power transmission in demanding indoor and outdoor applications.
The connector carries line, neutral and protective earth through a locking format that helps prevent accidental disconnection during operation. Its positive latch mechanism provides a secure connection for professional power leads that may be handled, transported and redeployed regularly.
With an IP65 protection rating, the SAC3FX is designed for appropriate outdoor electrical connections where protection against dust and water ingress is required. This makes it a practical option for outdoor stages, festivals, touring systems, film locations and temporary production infrastructure.
Designed for Live Events, Theatre and Touring Production
Entertainment industry equipment is regularly installed, operated, packed down, transported and reinstalled. Power connectors used in these environments must provide dependable electrical contact while tolerating frequent professional handling.
The Seetronic SAC3FX is suitable for professionally assembled power leads used with compatible equipment across:
- Theatre lighting systems
- Touring production equipment
- Concert and festival infrastructure
- Professional audiovisual systems
- Film and television location equipment
- Broadcast and studio installations
- Conference and exhibition systems
- Production-company cable inventory
- Venue technical systems
- Equipment racks and custom assemblies
The locking connection helps prevent the connector from being unintentionally pulled apart, making it useful around stages, technical compounds and equipment areas where ordinary friction-fit connections may be vulnerable to movement.

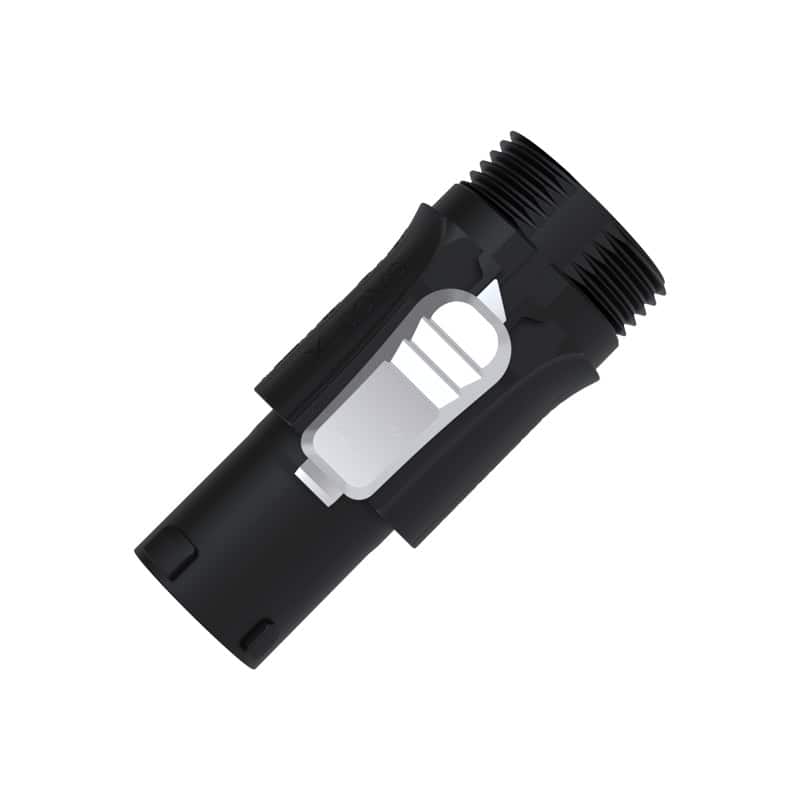

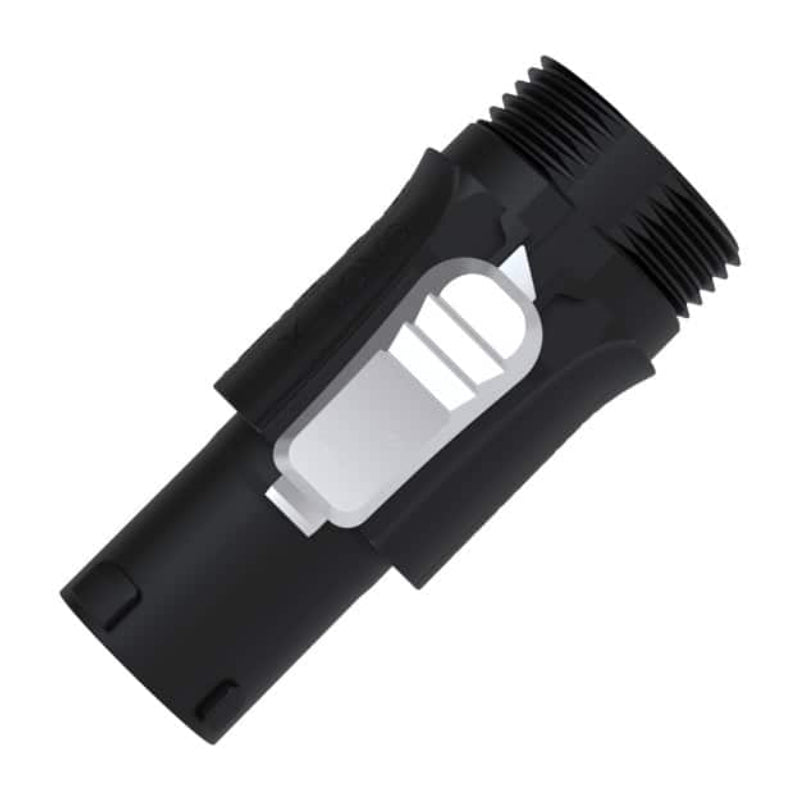

Lockable Three-Core Female Cable Connector
The SAC3FX is a female cable connector containing contacts for line, neutral and protective earth. It is designed to mate with the Seetronic SAC3MX male cable connector and specified SAC3MPX or SAC3MPX-LY panel-mount sockets.
The fast-locking mechanism creates a firm mechanical connection rather than relying on insertion pressure alone. Once correctly mated, the connector remains engaged until the locking system is intentionally released.
This makes the SAC3FX useful for cable assemblies supporting:
- Stage-lighting equipment
- Powered AV equipment
- Temporary production systems
- Touring technical inventory
- Outdoor event equipment
- Studio and broadcast systems
- Conference and exhibition installations
- Venue power infrastructure
- Film and TV equipment packages
- Custom equipment and rack builds
Compatibility should always be checked against the exact mating connector or equipment socket. Similar-looking locking power connectors are not necessarily electrically or mechanically interchangeable.
IP65 Protection for Outdoor Production Environments
The SAC3FX carries an IP65 protection rating when correctly assembled and mated with compatible Seetronic components.
IP65 indicates protection against dust ingress and resistance to water jets under the conditions covered by the rating. This can make the connector suitable for appropriate applications including:
- Outdoor concerts and festivals
- Open-air theatre productions
- Film and television locations
- Temporary stage-lighting systems
- Outdoor broadcast equipment
- Production compounds
- Exhibition infrastructure
- Touring equipment exposed during loading
- Temporary venue power systems
- Outdoor audiovisual installations
An IP65 rating does not remove the need for proper weather protection, cable routing, drainage, inspection or electrical safety procedures. The connector must be correctly assembled, completely engaged and used with compatible components for its intended environmental protection to be maintained.
Damaged seals, loose housings, unsuitable cable diameters, incomplete mating or poor assembly may reduce the level of ingress protection.
Professional Electrical Capacity
The Seetronic SAC3FX is rated at:
- 16A at 250V AC under TÜV Rheinland certification
- 20A at 300V AC under UL certification
- Three contacts: 2 + PE
- Contact resistance: no more than 5 mΩ
- Dielectric strength: 4000V DC
- Insulation resistance: greater than 1000 MΩ
These specifications make it suitable for many professional lighting, audiovisual and production power applications when assembled into an appropriately designed and compliant cable.
The permissible current of the completed assembly will also depend on:
- The cable conductor size
- The cable temperature rating
- The connected equipment
- Circuit protection
- Installation conditions
- Connector compatibility
- Applicable Australian electrical requirements
The connector’s published maximum rating should not automatically be treated as the permitted load for every completed cable or installation.
Built for Repeated Professional Use
Touring and production connectors may be connected and disconnected hundreds of times throughout their working life. The Seetronic SAC3FX is rated for more than 1000 mating cycles, supporting repeated use in professional environments when correctly handled and maintained.
Its construction includes:
- Durable polyamide housing
- Copper-alloy contacts
- Silver-plated contact surfaces
- Flame-retardant UL94-V0 material
- Integrated strain-relief components
- Screw-type conductor terminals
- Waterproof sealing components
The manufacturer specifies an operating-temperature range of -30°C to +80°C. The finished cable assembly must still be assessed according to the ratings of the cable, mating connector and connected equipment.
Suitable for Film, Television and Broadcast Production
Film, television and broadcast crews operate technical power systems across studios, sound stages, outside-broadcast environments and temporary locations.
The Seetronic SAC3FX may be integrated into suitable power assemblies for:
- Studio-lighting equipment
- Location-lighting systems
- Video and broadcast equipment
- Production monitors
- Equipment racks
- Technical control systems
- Mobile production packages
- Temporary power distribution
- Outside-broadcast infrastructure
- Film and television workshop equipment
Its locking interface helps maintain a secure connection during production, while the IP65 design supports appropriate outdoor and location applications.
The connector should only be assembled by suitably skilled and authorised persons familiar with conductor identification, protective earthing, termination torque, strain relief, electrical testing and applicable regulations.

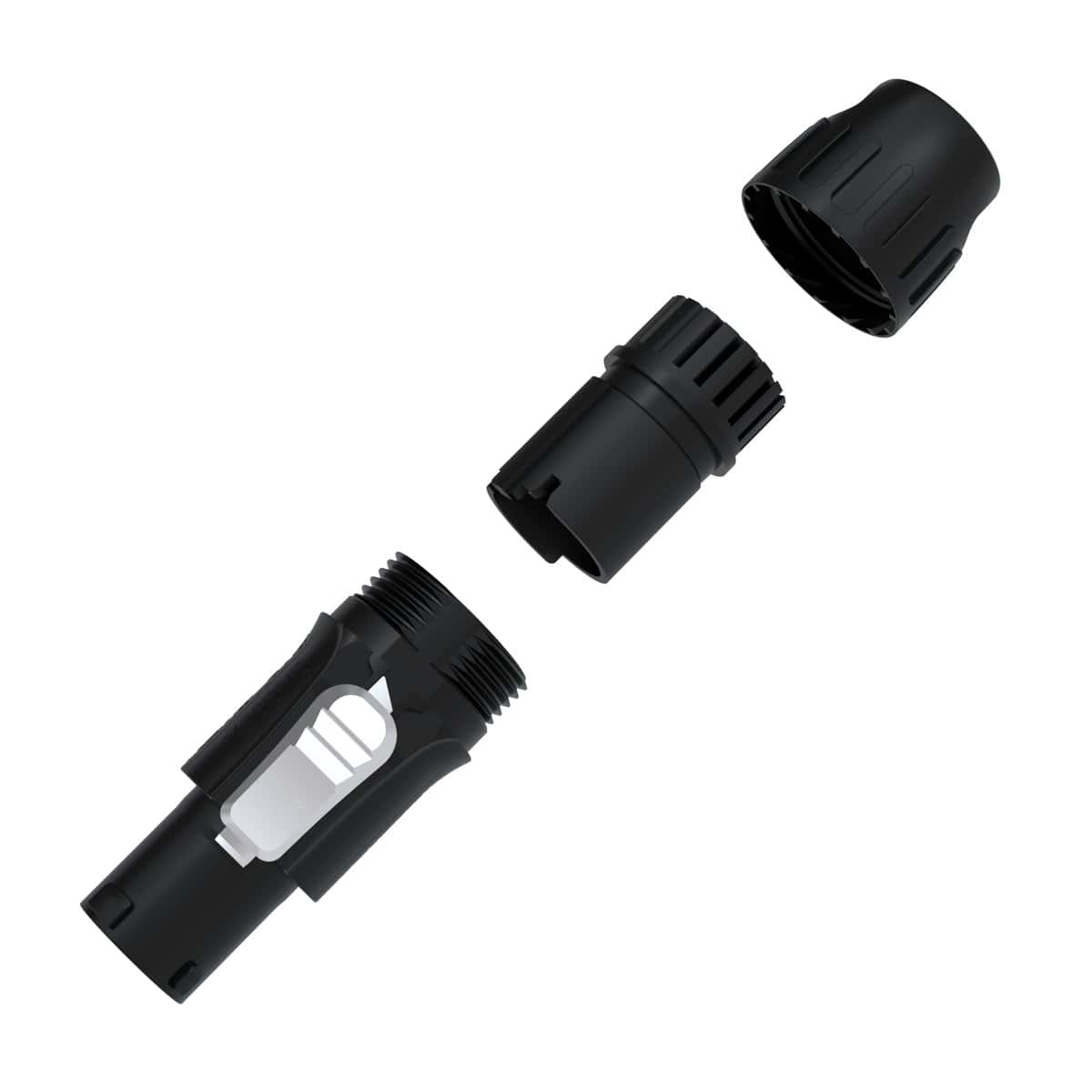

Cable and Assembly Requirements
The Seetronic SAC3FX supports cable with conductors up to 2.5mm² or 12 AWG and an overall cable diameter between 7mm and 11mm.
The connector uses screw terminals, and Seetronic specifies a terminal-tightening torque of 0.7Nm. The rear bushing is specified to be tightened to 2.0Nm during assembly.
Correct assembly is essential to:
- Maintain protective-earth continuity
- Prevent loose conductor terminations
- Support the cable strain relief
- Maintain environmental sealing
- Prevent exposed copper
- Reduce conductor movement
- Ensure the housing closes correctly
- Support reliable electrical operation
The cable diameter must suit the supplied seal, bushing and strain-relief components. Cable outside the specified range may prevent the connector from closing or sealing correctly.
Useful for Venue Workshops and Cable Assembly
The SAC3FX is a practical component for venues, production companies and AV suppliers building or maintaining professional cable inventory.
Suitable workshop applications include:
- Constructing compatible power extension leads
- Repairing damaged cable assemblies
- Maintaining touring cable inventory
- Building custom equipment leads
- Preparing festival power packages
- Stocking venue technical workshops
- Supporting custom rack construction
- Maintaining film and television equipment
- Replacing worn compatible connectors
- Standardising cable fleets
Keeping compatible SAC3FX and SAC3MX connectors in technical stock can help production departments complete cable repairs and custom assemblies without waiting for an urgent component order.
Important Electrical Safety Considerations
The SAC3FX is a mains power connector and must not be treated like a low-voltage audio or signal connector.
Assembly, testing, repair and modification must be completed in accordance with applicable Australian electrical regulations, workplace requirements and equipment-manufacturer instructions.
Before a completed cable assembly enters service, appropriate checks may include:
- Visual inspection
- Protective-earth continuity testing
- Insulation-resistance testing
- Polarity verification
- Strain-relief inspection
- Connector compatibility checks
- Functional testing
- Electrical safety tagging where required
Do not connect or disconnect the SAC3FX while carrying load unless the complete connector system is specifically approved for that operating method.
Power must be isolated before connector assembly, conductor termination, inspection or repair. Connectors showing contamination, cracked housings, damaged seals, overheating, loose components or contact damage should be removed from service.
