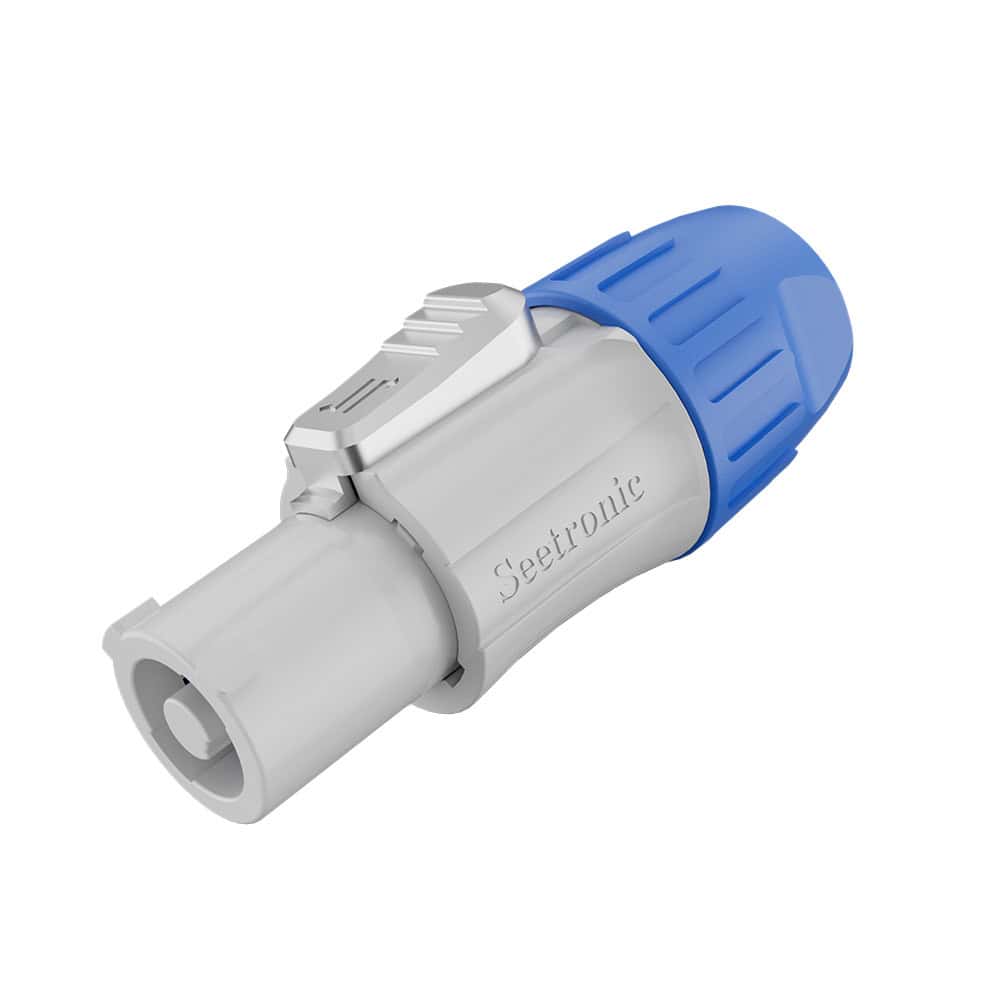

Why the Seetronic SAC3FCB Is a Professional Power-Out Connector
Reliable power connections are essential across theatre, live events, audiovisual systems, touring productions, film, television and professional installation environments. The Seetronic SAC3FCB is a lockable three-core power-out cable connector designed to provide secure AC power connections in suitable indoor applications.
The connector carries line, neutral and protective earth through a positive locking format that helps prevent accidental disconnection during operation. Its firm latch system provides a dependable mechanical connection for power cables that may be connected, disconnected, transported and redeployed regularly.
Rated at 20A and 250V AC, the SAC3FCB provides the electrical capacity required for many professional lighting, audio, video and technical equipment applications. It is specifically classified as a non-waterproof indoor connector, so it should not be substituted for an IP-rated power connector in outdoor, wet or exposed environments.
Designed for Power-Out Cable Applications
The SAC3FCB is a power-out cable connector intended for the output side of compatible power-linking systems. It is designed to mate with the Seetronic SAC3MCB cable connector or compatible SAC3MPB and SAC3MPB-M panel sockets.
Typical applications may include power-linking cables used between compatible:
- Stage-lighting fixtures
- Powered loudspeakers
- Video and display equipment
- Professional AV equipment
- Equipment racks
- Theatre technical systems
- Conference and exhibition equipment
- Film and television studio equipment
- Production-company cable inventory
- Custom indoor technical installations
Power-out connectors form part of a directional power system. The correct connector must be installed at the correct end of the cable and matched with the appropriate compatible inlet, outlet or cable connector.
Similar-looking locking power connectors are not automatically interchangeable. Compatibility, keying and power direction should always be confirmed before assembling or connecting a cable.
Secure Locking Connection
Ordinary friction-fit power connectors may become loose if cables are pulled, moved or disturbed. The SAC3FCB uses a locking mechanism that helps the completed connection remain engaged until the latch is intentionally released.
This can be particularly useful across:
- Theatre stages
- Indoor concert venues
- Film and television studios
- Broadcast facilities
- Conference centres
- Exhibition halls
- Production warehouses
- Rehearsal rooms
- Equipment racks
- Touring systems used indoors
The locking format helps reduce the risk of an accidental disconnection caused by routine movement around equipment, technical areas and cable routes.
The connector should always be inserted fully and locked correctly before the connected equipment is energised.
Professional Electrical Performance
The Seetronic SAC3FCB is designed for professional AC power applications and has the following published electrical specifications:
- Number of contacts: 2 + PE
- Rated current: 20A
- Rated voltage: 250V AC
- Contact resistance: no more than 5mΩ
- Dielectric strength: 4000V DC
- Insulation resistance: greater than 1000MΩ
- Conductor capacity: up to 2.5mm²
- Terminal type: screw terminals
These specifications support many professional entertainment and audiovisual applications when the connector is installed as part of an appropriately designed and compliant power cable.
The permissible operating load of the completed cable assembly will also depend on:
- The conductor size and cable type
- Cable length
- Cable temperature rating
- Connected equipment
- Circuit protection
- Installation conditions
- Mating connector ratings
- Applicable Australian electrical requirements
The connector’s maximum published rating should not automatically be treated as the permitted load for every completed cable or installation.
Indoor, Non-Waterproof Construction
The SAC3FCB belongs to Seetronic’s indoor, non-waterproof power connector series. It does not carry an IP65 or IP67 ingress-protection rating and should be protected from rain, water, excessive moisture and unsuitable environmental exposure.
Appropriate applications may include:
- Theatre stages and backstage areas
- Indoor concert venues
- Film and television studios
- Broadcast control rooms
- Equipment racks
- Production workshops
- Conference rooms
- Exhibition halls
- Rehearsal facilities
- Indoor AV installations
For outdoor concerts, festivals, exposed film locations or weather-sensitive installations, an appropriately rated Seetronic IP65 or IP67 connector system should be selected instead.
The SAC3FCB should not be described as waterproof, weatherproof or suitable for exposed outdoor use.
Built for Repeated Professional Use
Power connectors used in production environments may be connected and disconnected hundreds of times throughout their working life. Seetronic specifies a service life of more than 1,000 mating cycles, supporting repeated professional use when the connector is correctly assembled, operated and maintained.
Construction features include:
- Durable polyamide housing
- Copper-alloy contacts
- Silver-plated contact surfaces
- UL94-V0 flame-retardant material
- Integrated strain-relief components
- Screw-type conductor terminals
- Firm locking latch mechanism
The manufacturer specifies an operating-temperature range from -30°C to +80°C. The completed cable assembly must still be assessed according to the temperature ratings of the cable, mating connector and connected equipment.
Connectors should be inspected regularly for damaged housings, worn latches, loose components, contamination, overheating, discolouration or damaged contacts.
Cable Size and Strain-Relief Options

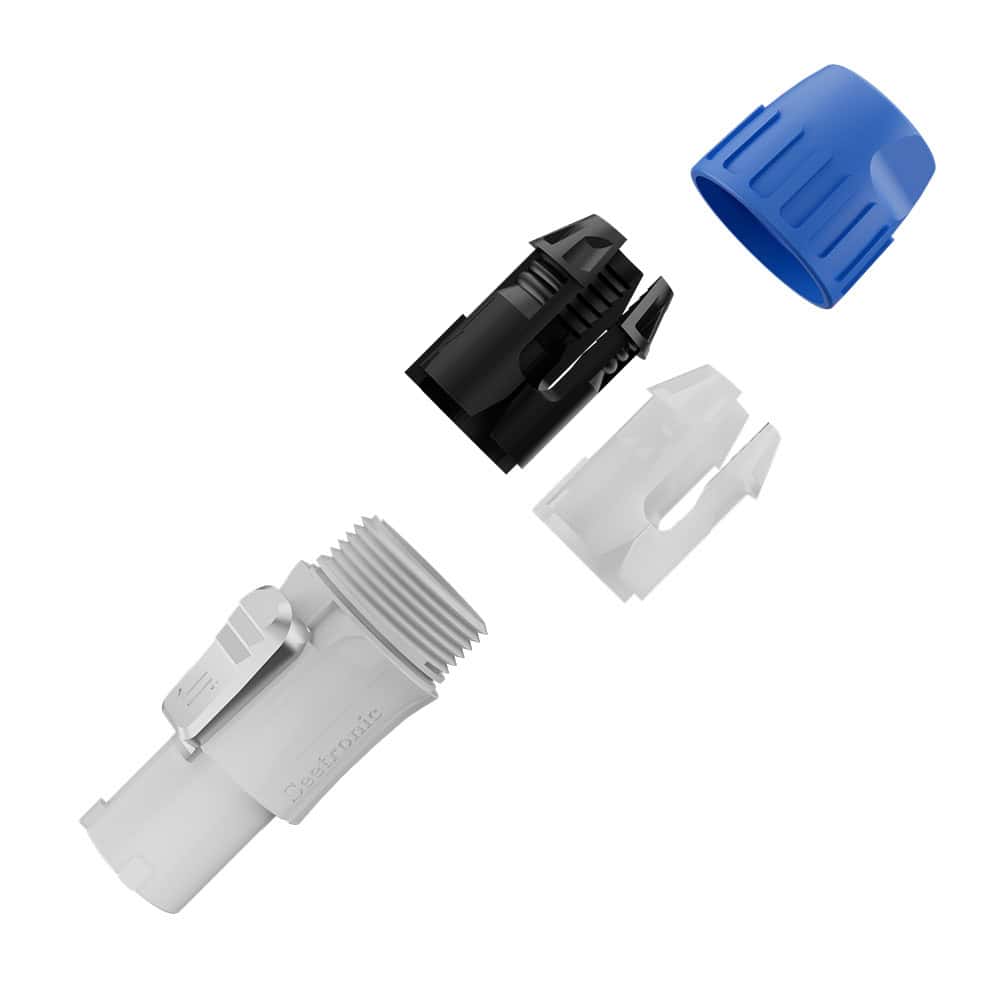

The SAC3FCB supports conductors up to 2.5mm² and includes strain-relief options for two cable outside-diameter ranges:
- White strain relief: 8–11mm cable diameter
- Black strain relief: 11–12mm cable diameter
Correct strain-relief selection is important because the strain relief must grip the cable’s outer jacket securely without placing mechanical pressure directly on the insulated conductors.
Cable that is too small may not be held securely. Cable that is too large may prevent the connector from assembling or closing correctly.
The selected cable must also be suitable for the required current, voltage, flexibility, operating temperature and intended indoor environment.
Screw-Terminal Cable Assembly
The SAC3FCB uses screw terminals to secure the line, neutral and protective-earth conductors. Seetronic’s current assembly guidance specifies a terminal-tightening torque of 0.5Nm and a rear-bushing torque of 2.0Nm.
Correct assembly is essential to:
- Maintain protective-earth continuity
- Prevent loose conductor terminations
- Avoid exposed copper
- Maintain reliable contact pressure
- Support the cable strain relief
- Prevent conductor movement
- Ensure the housing closes correctly
- Reduce the risk of overheating
Cable stripping lengths, conductor placement and connector assembly order should follow Seetronic’s current instructions.
The connector requires suitable tools for conductor termination and assembly. The fast-locking description refers to mating and releasing the completed connector, not tool-free cable construction.
Suitable for Theatre and Live Event Production
The SAC3FCB is useful for indoor production systems that require secure power-out connections between compatible equipment.
Potential applications include:
- Indoor stage-lighting systems
- Theatre technical equipment
- Touring lighting packages
- Powered AV systems
- Production equipment racks
- Conference-room installations
- Exhibition equipment
- Rehearsal venues
- Production-company power cables
- Performing arts centres
The locking connection can help maintain reliable power during rehearsals, performances, presentations and indoor events where technical cables may be exposed to routine movement.
For temporary touring use, connectors and cables should be inspected during preparation and again after bump-out to identify damage before the next production.
Suitable for Film, Television and Broadcast
Film, television and broadcast departments regularly operate technical equipment across sound stages, studios, control rooms, production workshops and temporary indoor facilities.
The SAC3FCB may be incorporated into suitable power assemblies for:
- Studio-lighting equipment
- Production monitors
- Video and broadcast equipment
- Technical control systems
- Equipment racks
- Playback systems
- Film and television workshop equipment
- Indoor location-production facilities
- Custom production equipment
- Mobile studio packages used indoors
Its locking interface helps maintain a secure connection during production, while its cable-mounted design makes it useful for custom power-linking leads and equipment assemblies.
For outdoor filming or exposed location work, an appropriate IP-rated connector should be used instead.
Compatible with Professional Equipment Systems
Seetronic specifically lists the SAC3FCB as compatible with equipment from Luminex and Barnfind, subject to the exact equipment model and connector configuration.
Compatibility should always be verified before purchase or installation. A connector that fits physically may still have different keying, wiring, electrical ratings or intended power direction.
When standardising cable inventory, production teams should clearly label:
- Connector type
- Power direction
- Cable length
- Conductor size
- Current rating
- Intended equipment
- Inspection or test status
Clear identification helps reduce incorrect patching during equipment preparation, installation and troubleshooting.
Important Electrical Safety Considerations
The SAC3FCB is a mains power connector and must not be treated as a low-voltage signal, loudspeaker or data connector.
Assembly, testing, repair and modification must be completed by suitably skilled and authorised persons in accordance with applicable Australian electrical regulations, workplace procedures and equipment-manufacturer requirements.
Before a completed cable assembly enters service, appropriate checks may include:
- Visual inspection
- Protective-earth continuity testing
- Insulation-resistance testing
- Polarity verification
- Strain-relief inspection
- Connector compatibility checks
- Functional testing
- Electrical safety tagging where required
Power must be isolated before connector assembly, conductor termination, inspection or repair.
Connectors displaying overheating, damaged contacts, contamination, loose components, cracked housings or defective strain relief should be removed from service.
Why Buy the Seetronic SAC3FCB from GigLife?
GigLife supplies professional connectors and production consumables backed by more than 25 years of hands-on live entertainment industry experience.
Products are selected by people who understand the practical requirements faced by production managers, technical managers, stage managers, lighting crews, audiovisual technicians, film and television departments, venues and touring professionals.
Alongside the Seetronic SAC3FCB Indoor Power-Out Connector, GigLife stocks compatible Seetronic power-in connectors, panel sockets, locking power connectors, professional cables, adaptors, tools and other essential technical accessories.
Orders are dispatched from Brisbane, with Australia-wide shipping available for:
- Production companies
- Film and television crews
- Theatres and performance venues
- AV suppliers
- Schools and performing arts centres
- Conference centres
- Exhibition contractors
- Festivals
- Touring productions
- Broadcast and studio facilities
GigLife is proudly by the professionals… for the professionals.
