Seetronic - SAC3MX - IP65 Power Connector

Seetronic SAC3MX IP65 Power Connector

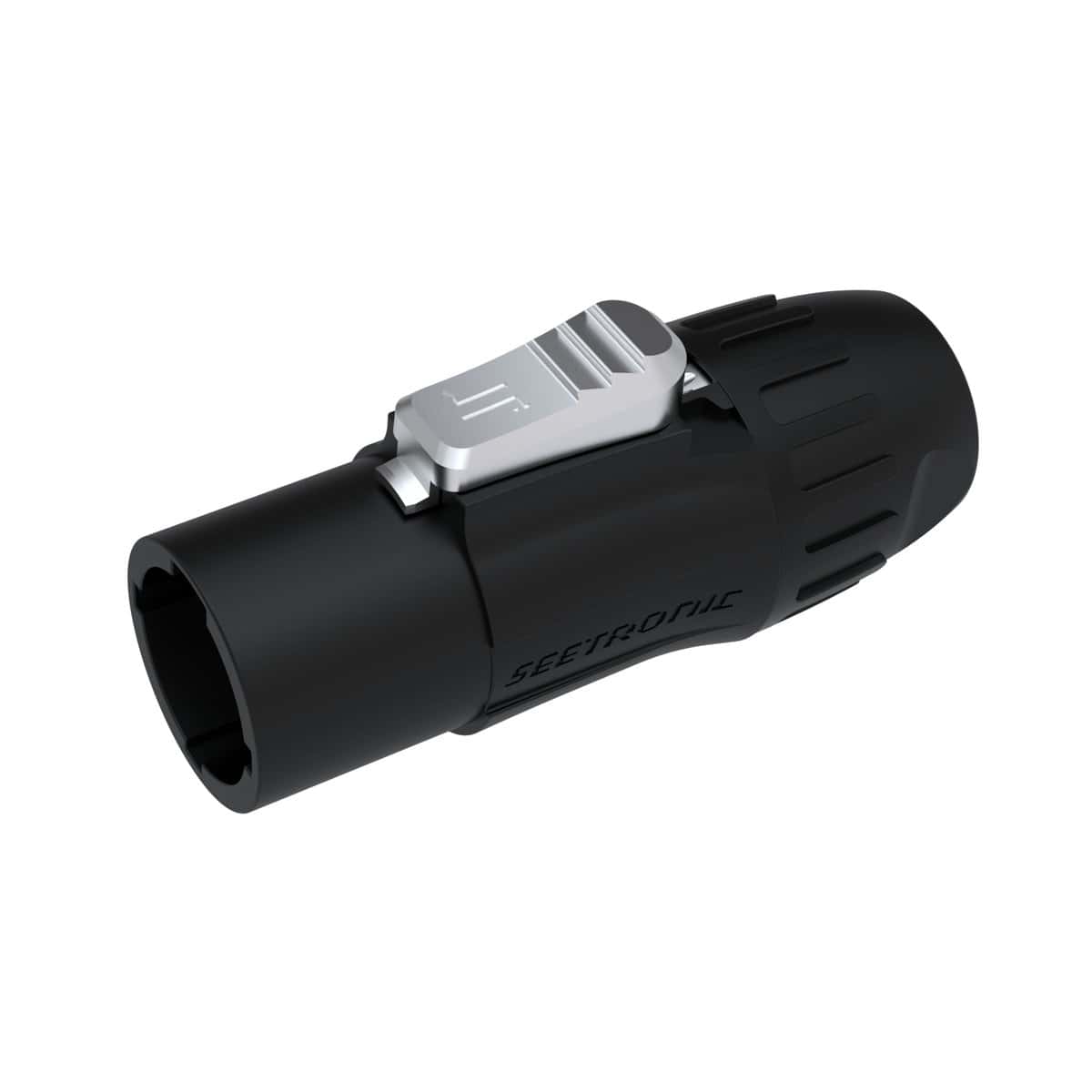

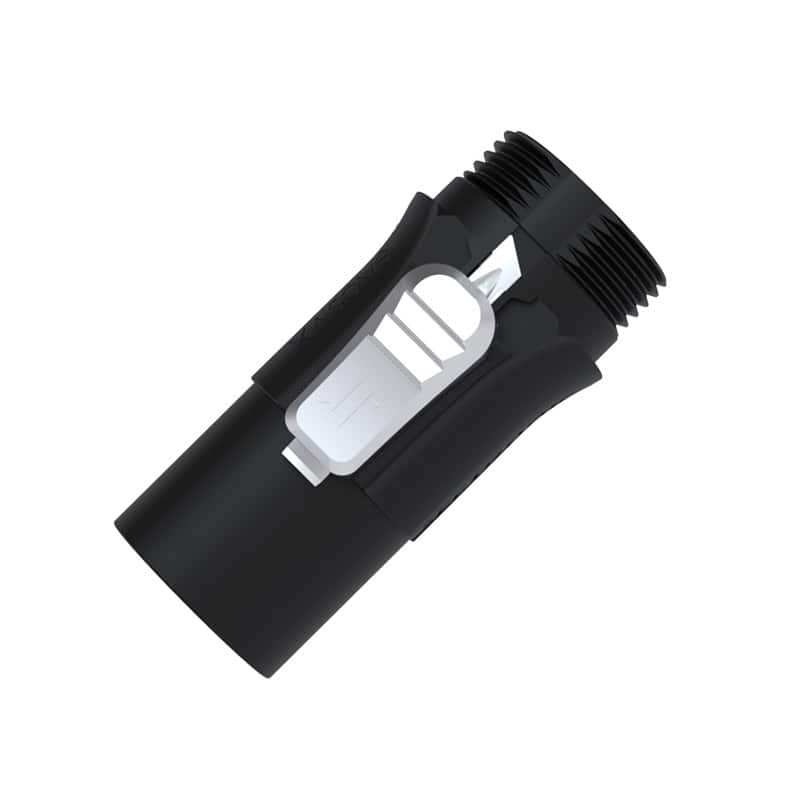

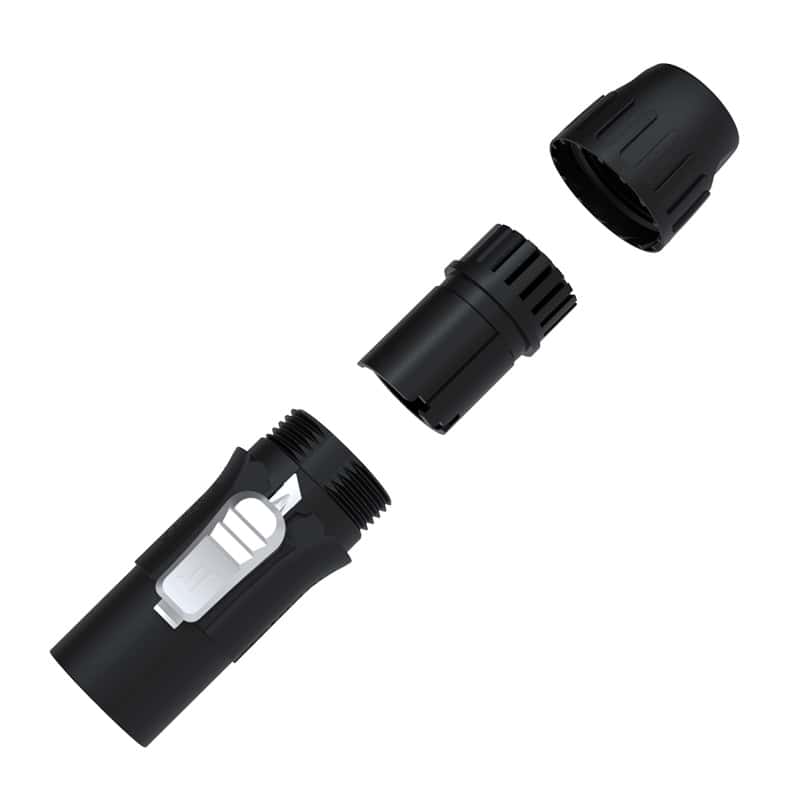

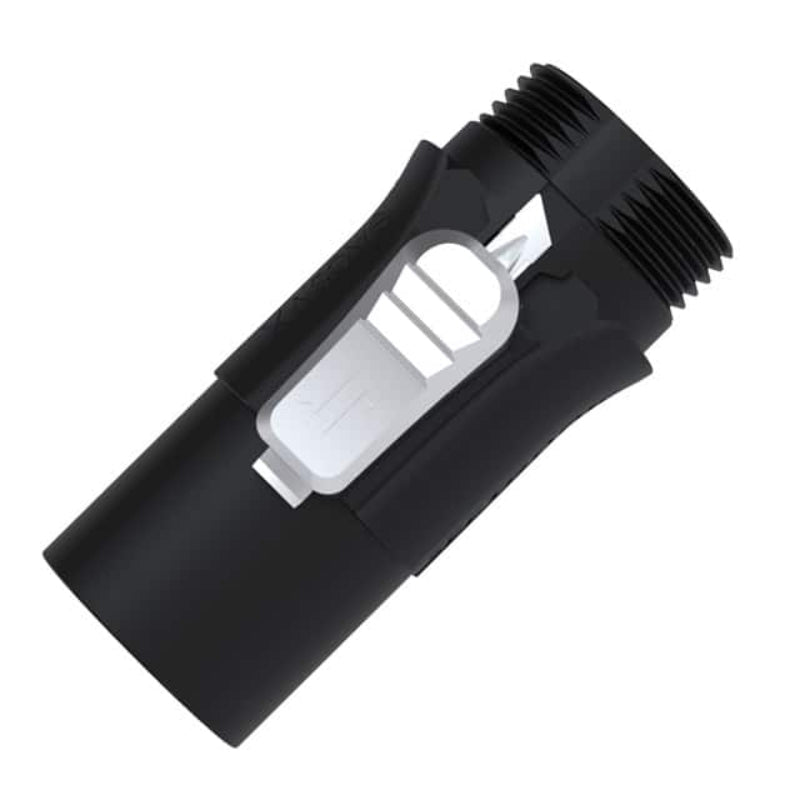

The Seetronic SAC3MX is a professional IP65-rated lockable three-core male power connector designed for reliable outdoor electrical connections in demanding production, touring, and installation environments. Engineered for durability and safety, this connector provides secure transmission of line, neutral, and pre-adapted safety grounding.

The connector features a fast-locking latch system that ensures a firm connection and prevents accidental disconnection during operation. Its IP65 protection rating offers strong resistance to dust and water ingress, making it suitable for outdoor stage and event applications.

Rated for 16A / 250V AC (TUV RH) and 20A / 300V AC (UL), the SAC3MX supports high-current professional equipment. The connector is built with PA housing, copper alloy contacts, and silver-plated contact surfaces to provide low-resistance, high-performance power transfer. It supports 2.5 mm² (12 AWG) cable with an outer cable diameter of 7–11 mm.

Designed for long-term professional use, the connector is rated for over 1000 mating cycles and operates reliably across a wide temperature range from -30°C to +80°C.

Specifications

- Number of contacts: 2 + PE

- Rated current: 16A (TUV RH) / 20A (UL)

- Rated voltage: 250V AC (TUV RH) / 300V AC (UL)

- Contact resistance: ≤ 5 mΩ

- Dielectric strength: 4000V DC

- Insulation resistance: > 1000 MΩ

- Service life: > 1000 mating cycles

- Cable size: 2.5 mm²

- Cable outer diameter: 7–11 mm

- Terminal type: Screw terminals

- Protection rating: IP65

- Flame retardant rating: UL94-V0

Features

- IP65-rated protection for outdoor environments

- Lockable latch mechanism for secure connection

- High current capacity for professional power distribution

- Silver-plated copper alloy contacts for reliable conductivity

- Tool-free fast-locking design

- Touring-grade durable construction

Ideal for

- Outdoor stage and lighting power systems

- Concerts, festivals, and live events

- Touring production equipment

- Professional audio and lighting installations

- Temporary and permanent outdoor power setups
