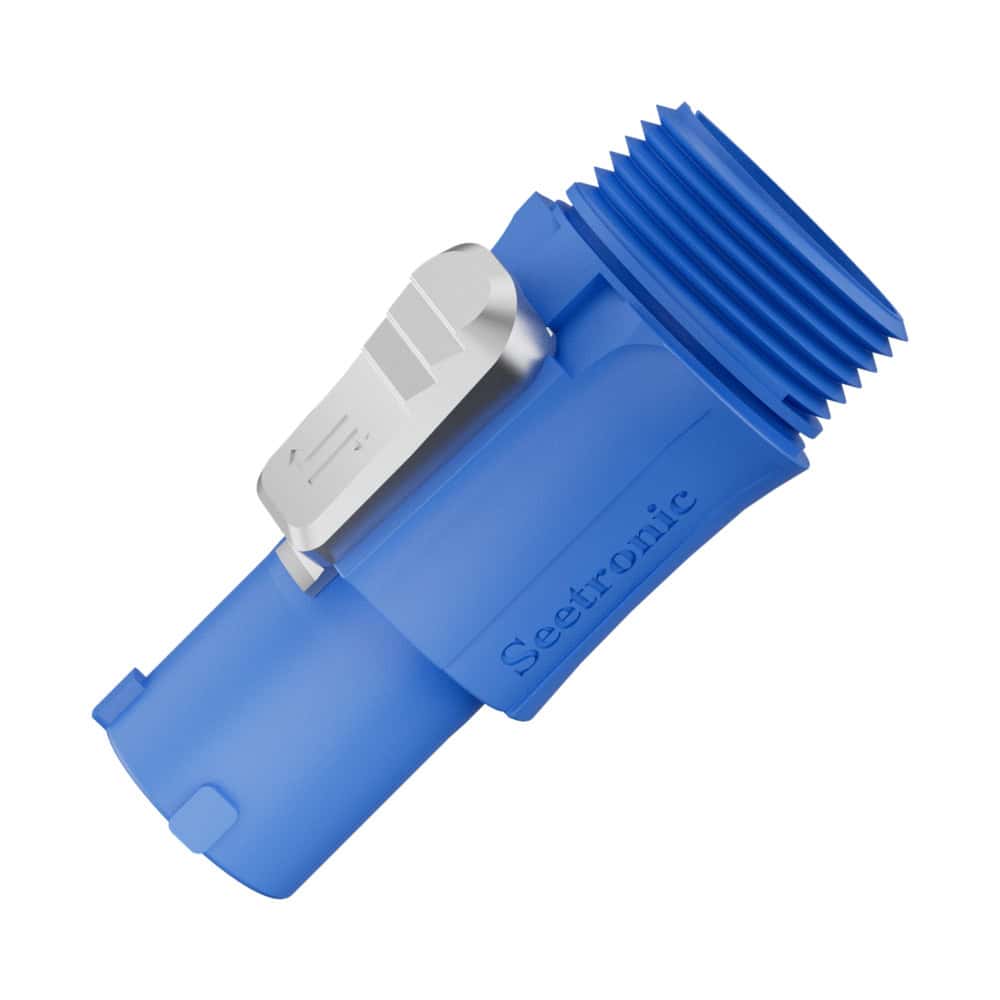

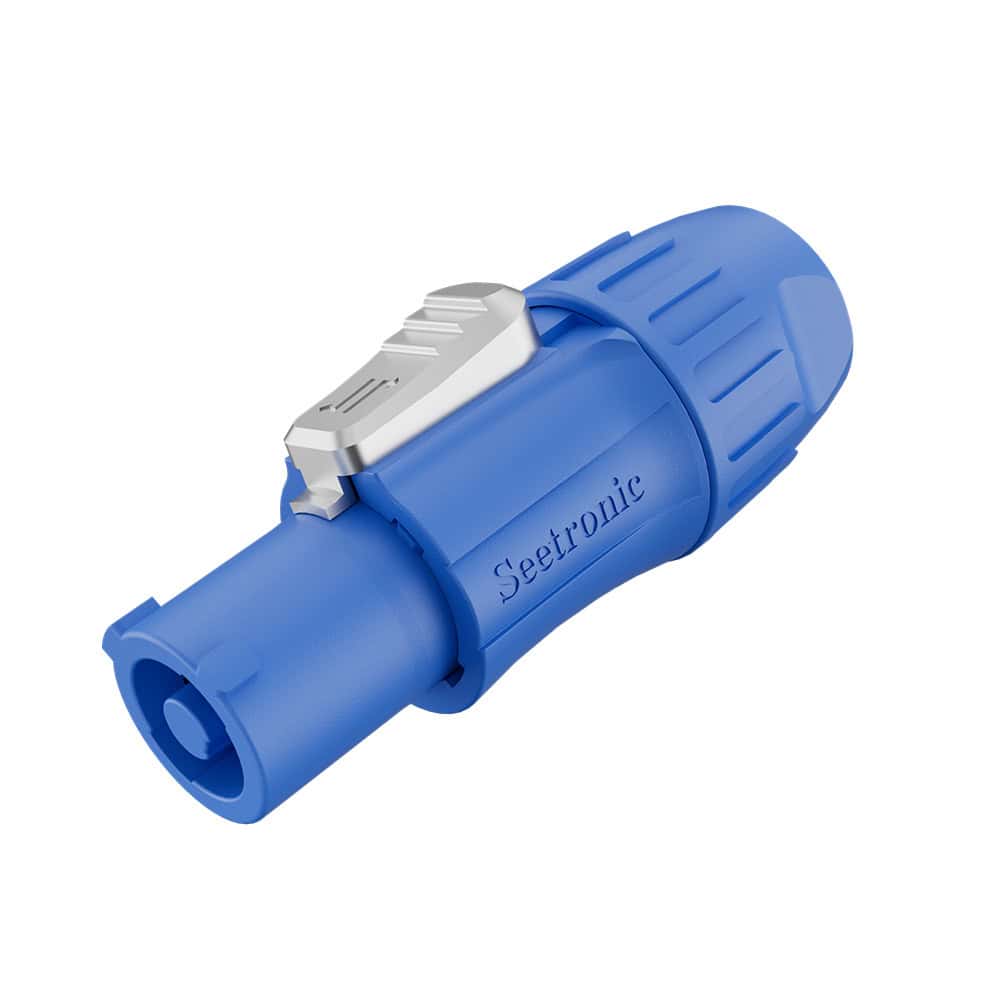

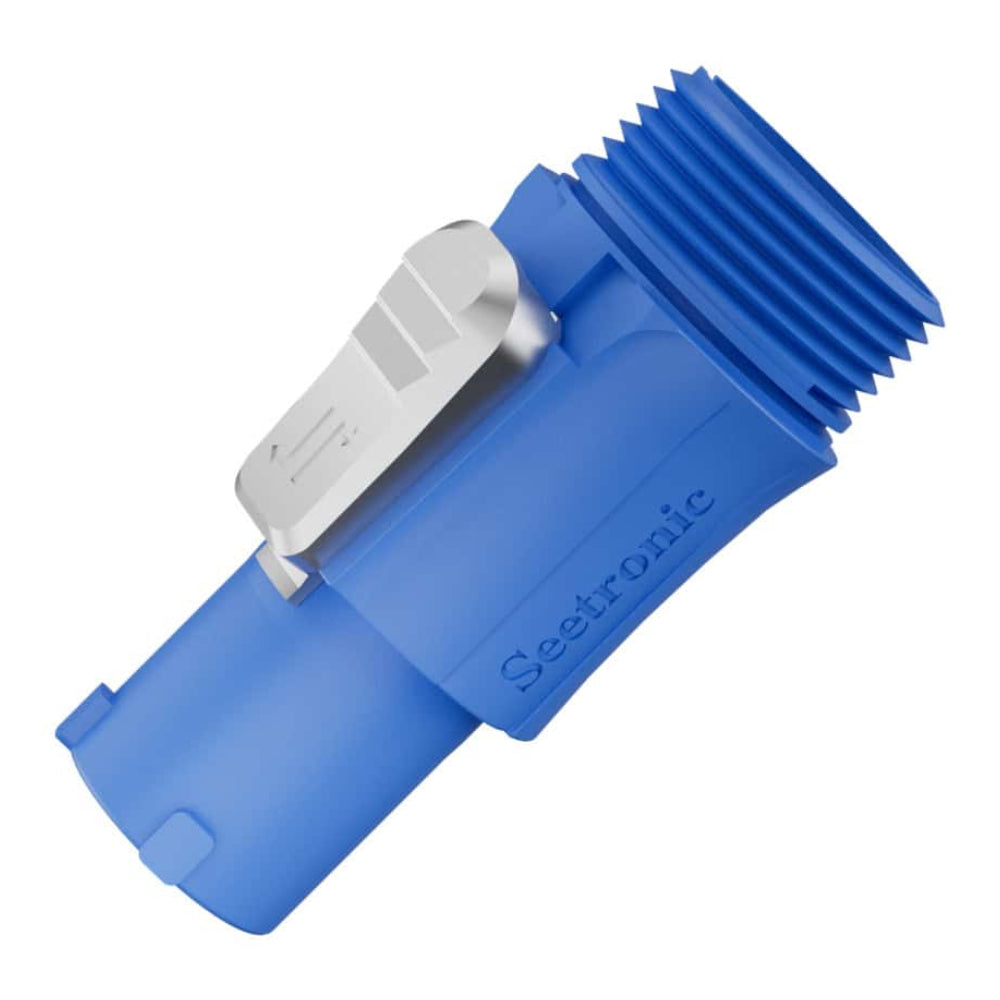

Why the Seetronic SAC3FCA Is a Professional Power Connector
Reliable power connections are essential across theatre, live events, audiovisual systems, touring productions, film, television and professional installation environments. The Seetronic SAC3FCA is a lockable three-core power-in cable connector designed to provide secure AC power connections in suitable indoor applications.
The connector carries line, neutral and protective earth through a locking format that helps prevent accidental disconnection during operation. Its fast-locking latch system provides a positive mechanical connection, making it suitable for equipment and cable assemblies that may be connected, disconnected, transported and redeployed regularly.
Rated at 20A and 250V AC, the SAC3FCA provides the current capacity required for many professional lighting, audio, video and technical equipment applications. It is specifically classified as a non-waterproof indoor connector and should not be substituted for an IP-rated connector in outdoor or exposed environments.
Designed for Theatre, Live Events and Touring Production
Professional entertainment equipment is frequently installed, operated, packed down and transported between productions. Power connectors used in these environments must provide dependable electrical contact while remaining practical for technicians to handle.
The Seetronic SAC3FCA may be used within appropriately designed indoor power cable assemblies for:
- Theatre lighting equipment
- Indoor concert and stage systems
- Professional audiovisual equipment
- Touring production inventory
- Film and television studios
- Broadcast and control-room equipment
- Conference and exhibition systems
- Production-company cable stock
- Venue technical installations
- Equipment racks and custom assemblies
The locking connection helps prevent a compatible connector from being unintentionally pulled apart, making it useful around stages, equipment racks, control positions and technical areas where cables may be disturbed during operation.
Lockable Three-Core Power-In Cable Connector
The SAC3FCA is a three-core power-in cable connector with contacts for line, neutral and protective earth. It is designed to mate with the Seetronic SAC3MCA cable connector and compatible SAC3MPA or SAC3MPA-M panel sockets.
The locking system provides a firm mechanical connection rather than relying on friction alone. Once correctly inserted and locked, the connector remains engaged until the latch is deliberately released.
This makes it suitable for professionally assembled power leads used throughout:
- Theatre technical systems
- Indoor touring productions
- Concert venues
- Television studios
- Film sound stages
- Broadcast facilities
- AV installations
- Conference centres
- Exhibition environments
- Production workshops
Compatibility should always be confirmed against the exact mating connector or equipment socket. Similar-looking locking power connector systems are not automatically mechanically or electrically interchangeable.
Indoor, Non-Waterproof Connector
The Seetronic SAC3FCA is part of the manufacturer’s indoor non-waterproof power connector range. It does not carry an IP65 or IP67 ingress-protection rating and should be used only where it is protected from rain, water, excessive moisture and other unsuitable environmental exposure.
Appropriate indoor applications may include:
- Theatre stages and technical areas
- Indoor concert venues
- Film and television studios
- Broadcast control rooms
- Equipment racks
- Production warehouses
- Conference rooms
- Exhibition halls
- Rehearsal spaces
- Indoor AV installations
For festivals, outdoor stages, exposed film locations or weather-sensitive installations, an appropriately rated Seetronic IP65 or IP67 connector system should be selected instead.
The SAC3FCA should not be described as waterproof, weatherproof or suitable for exposed outdoor use.
Professional Electrical Performance
The SAC3FCA is designed for professional AC power applications and has the following published electrical specifications:
- Number of contacts: 2 + PE
- Rated current: 20A
- Rated voltage: 250V AC
- Contact resistance: no more than 5mΩ
- Dielectric strength: 4000V DC
- Insulation resistance: greater than 1000MΩ
- Conductor capacity: 2.5mm²
- Terminal type: screw terminals
These specifications support many professional lighting, audio, video and production applications when the connector is installed as part of a properly designed and compliant cable assembly.
The permitted load of the completed cable will also depend on the cable conductor size, cable temperature rating, connected equipment, circuit protection, installation conditions and applicable Australian electrical requirements.
The connector’s maximum published rating should not automatically be treated as the permitted operating load for every cable assembly or installation.
Built for Repeated Professional Use
Touring and production power connectors may be connected and disconnected hundreds of times throughout their working life. The SAC3FCA is rated for more than 1,000 mating cycles, supporting repeated professional use when correctly assembled, operated and maintained.
Its construction includes:
- Durable polyamide housing
- Copper-alloy electrical contacts
- Silver-plated contact surfaces
- UL94-V0 flame-retardant material
- Integrated cable strain-relief components
- Screw-type conductor terminals
- Firm locking latch mechanism
The manufacturer specifies an operating-temperature range of -30°C to +80°C. The completed cable assembly must still be assessed according to the ratings of the cable, mating connector and connected equipment.
Connectors should be inspected regularly for cracked housings, damaged latches, loose components, contamination, overheating, discolouration or worn contact surfaces.

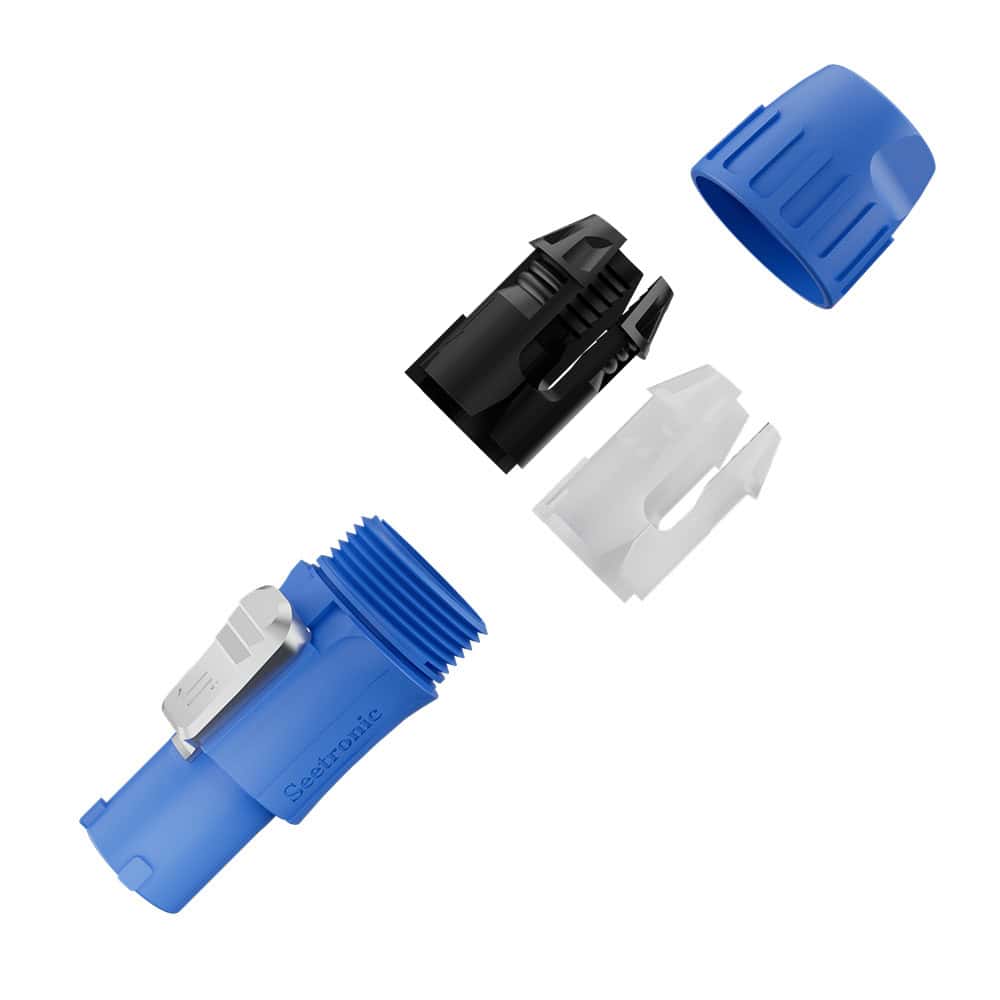

Cable Size and Strain-Relief Options
The SAC3FCA supports conductors up to 2.5mm² and is supplied with strain-relief options for different cable outside diameters.
The published cable ranges are:
- White strain relief: 8–11mm cable outside diameter
- Black strain relief: 11–12mm cable outside diameter
Correct strain-relief selection is essential. The strain relief should grip the cable’s outer jacket securely without damaging it or placing mechanical pressure directly on the internal conductors.
A cable that is too small may not be held securely, while a cable that is too large may prevent the connector from closing or assembling correctly.
The cable type must also be suitable for the intended current, voltage, environment and application.
Screw-Terminal Cable Assembly
The SAC3FCA uses screw terminals to secure the line, neutral and protective-earth conductors. Seetronic’s current assembly guidance specifies a conductor-terminal torque of 0.5Nm and a rear-bushing torque of 2.0Nm.
Correct assembly is important to:
- Maintain protective-earth continuity
- Prevent loose electrical connections
- Avoid exposed conductor strands
- Maintain reliable contact pressure
- Support the cable strain relief
- Prevent conductor movement
- Ensure the housing closes correctly
- Reduce the risk of overheating
Cable stripping lengths, conductor placement and assembly order should follow the manufacturer’s instructions.
This connector requires tools for conductor termination and cable assembly. The fast-locking description refers to mating and releasing the completed connector, not tool-free cable termination.
Suitable for Film, Television and Broadcast Production
Film, television and broadcast departments often operate technical equipment across sound stages, studios, control rooms, production workshops and temporary indoor facilities.
The SAC3FCA may be incorporated into appropriately designed power assemblies for:
- Studio-lighting equipment
- Production monitors
- Video and broadcast equipment
- Technical control systems
- Equipment racks
- Mobile indoor production packages
- Film and television workshop equipment
- Rehearsal and playback systems
- Indoor location-production facilities
- Custom technical equipment
Its locking interface helps maintain a secure connection during production, while the compact cable-mounted design makes it practical for professional equipment leads and extension assemblies.
For outdoor filming or exposed location work, an appropriate IP-rated connector from Seetronic’s weather-resistant range should be used instead.
Important Electrical Safety Considerations
The SAC3FCA is a mains power connector and must not be treated as a low-voltage signal, loudspeaker or data connector.
Assembly, testing, repair and modification must be completed by suitably skilled and authorised persons in accordance with applicable Australian electrical regulations, workplace procedures and equipment-manufacturer requirements.
Before a completed cable assembly enters service, appropriate checks may include:
- Visual inspection
- Protective-earth continuity testing
- Insulation-resistance testing
- Polarity verification
- Strain-relief inspection
- Connector compatibility checks
- Functional testing
- Electrical safety tagging where required
Power must be isolated before connector assembly, conductor termination, inspection or repair.
Do not connect or disconnect the SAC3FCA while carrying load unless the entire connector system is specifically approved for that operating procedure.
Connectors displaying overheating, damaged contacts, contamination, loose components, cracked housings or defective strain relief should be removed from service.
