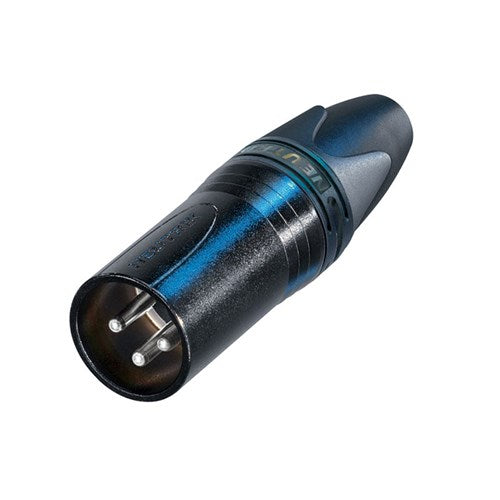

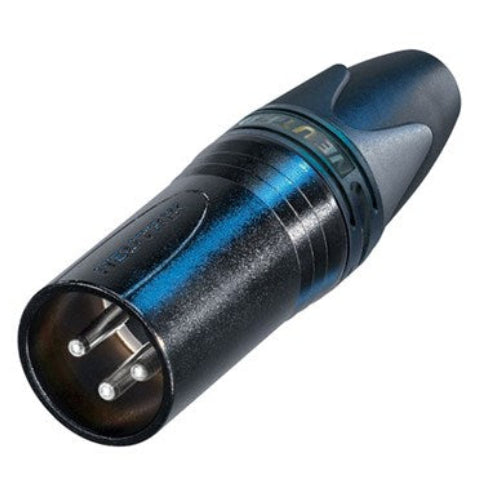

Neutrik - NC3MXXBAG - Male 3 Pin XLR connector (black body & silver contacts)

Neutrik NC3MXXBAG Male 3-Pin XLR Connector (Black Body, Silver Contacts)

The Neutrik NC3MXXBAG is a professional 3-pole male XLR cable connector featuring a black zinc die-cast housing with silver-plated contacts, engineered for reliable signal transmission in professional audio and lighting systems.

This next-generation X-series connector improves durability, assembly efficiency, and mechanical locking performance compared to earlier standards. The upgraded locking recess design (without the traditional window cut-out) creates a stronger and more rigid shell structure, enhancing connector longevity during heavy touring and production use.

The connector includes an advanced chuck-style strain relief system, providing higher cable pull-out resistance while simplifying assembly and installation. The polyurethane gland boot protects cables from bending stress and mechanical fatigue, helping extend cable life in demanding stage, broadcast, and installation environments.

Built with a rugged zinc die-cast metal shell, the NC3MXXBAG is designed for long-term professional use. The internal thread protection design reduces wear from repeated mating cycles. Each connector is marked with a holographic authenticity seal to verify genuine Neutrik manufacturing quality.

Specifications

- Connector type: 3-pin male XLR

- Housing: Black nickel-finished zinc die-cast metal

- Contact material: Silver-plated contacts

- Design: Professional ergonomic connector body

Features

- Locking recess housing design for improved durability

- High-strength chuck strain relief mechanism

- Polyurethane cable gland boot for bend stress protection

- Internal thread wear protection

- Ergonomic handling design

- Authenticity hologram verification

Ideal for

- Professional audio signal systems

- DMX lighting control networks

- Stage, theatre, and touring production

- Broadcast and studio installations

- Permanent and temporary wiring setups
