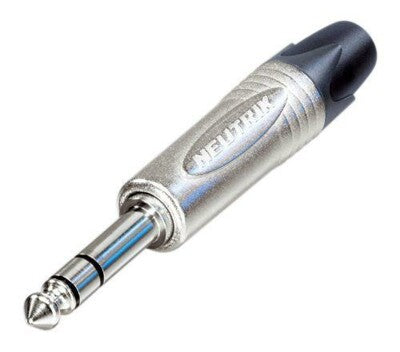

Neutrik - NP3X - 6.35mm TRS Stereo Jack Plug (Nikel Shell & Nickel Contacts)

Neutrik NP3X 6.35mm Stereo Jack Plug – Nickel Shell, Nickel Contacts

The Neutrik NP3X is a professional 3-pole 6.35mm (¼") TRS stereo jack plug featuring a nickel-plated metal shell and nickel-plated contacts, designed to deliver outstanding reliability, durability, and signal integrity for professional audio applications. As part of Neutrik's industry-leading Plug X Series, the NP3X improves on the popular C Series with a slimmer profile, superior strain relief, and enhanced mechanical performance for demanding live and studio environments.

Trusted by audio engineers, musicians, rental companies, installers, and equipment manufacturers worldwide, the NP3X is ideal for balanced audio cables, insert leads, patch cables, headphones, mixing consoles, audio interfaces, stage boxes, amplifiers, and professional signal interconnects.

Its extra-slim 14.5mm housing makes it one of the thinnest professional A-gauge ¼" connectors available, allowing it to fit modern high-density jackfields with 15.88mm jack spacing. The connector features a precision-machined one-piece tip contact, eliminating riveted construction that can wear over time or catch inside sockets, resulting in smoother insertion and exceptional long-term reliability.

Neutrik's proven chuck-type strain relief securely grips cable diameters from 4mm to 7mm, protecting solder joints from mechanical stress while providing excellent cable retention. Combined with the rugged nickel-plated zinc die-cast shell, the NP3X is built to withstand years of professional use in touring, broadcast, studio, and permanent installation environments.

Applications

• Balanced TRS audio cables
• Patch leads and studio patch bays
• Mixing consoles and audio interfaces
• Stage boxes and audio snakes
• Headphone extension cables
• Amplifiers and signal processors
• Live sound and touring systems
• Broadcast and recording studios
• Professional AV installations

Specifications

• Model: NP3X
• Connector type: 6.35mm (¼") 3-pole TRS stereo jack plug
• Gender: Male
• Housing finish: Nickel-plated zinc die-cast
• Contact plating: Nickel (2µm Ni)
• Cable diameter: 4mm – 7mm
• Maximum conductor size: 1.0mm² (18 AWG)
• Wiring method: Solder contacts
• Contact resistance: Dependent on mating connector
• Insulation resistance: >2GΩ (initial)
• Dielectric strength: 1kV DC
• Rated voltage: <50V
• Operating temperature: -20°C to +65°C
• Lifetime: >1,000 mating cycles

Features

• Professional 6.35mm TRS stereo jack plug with nickel-plated housing
• Industry-leading Neutrik Plug X Series design
• Extra-slim 14.5mm shell for high-density patch bays and jackfields
• Precision-machined one-piece contacts eliminate rivets for greater reliability
• Proven chuck-type strain relief provides outstanding cable retention
• Rugged zinc die-cast housing with durable nickel plating
• Ergonomic design for comfortable handling and simple assembly
• Designed for balanced audio and professional signal applications
• Built to Neutrik's renowned quality standards for long-term reliability

Benefits

• Reliable signal transmission for critical professional audio applications
• Slim housing fits tightly spaced equipment and patch panels
• One-piece contact construction reduces wear and prevents connector failure
• Superior cable retention extends cable life in touring environments
• Fast and reliable assembly for cable manufacturers and technicians
• Trusted worldwide by professional audio, broadcast, and entertainment industries

Ideal for

• Live sound engineers and production companies
• Professional musicians and touring artists
• Recording and broadcast studios
• Theatre and performing arts venues
• AV integrators and installers
• Audio equipment manufacturers
• Rental companies
• Custom cable assembly and repair workshops
