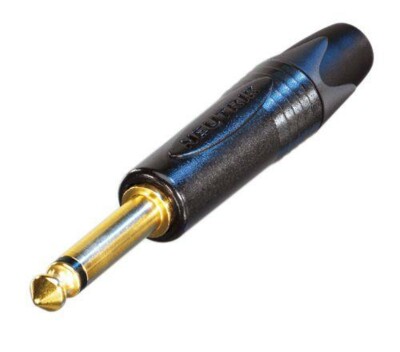

Neutrik - NP2X-B - 6.35mm Mono Jack Plug (black shell & gold contacts)

Neutrik NP2X-B 6.35mm Mono Jack Plug – Black Shell, Gold Contacts

The Neutrik NP2X-B is a professional 2-pole 6.35mm (¼") mono jack plug featuring a black die-cast metal shell and gold-plated contacts, engineered to deliver exceptional reliability, durability, and signal integrity for professional audio applications. As part of Neutrik's renowned Plug X Series, the NP2X-B builds upon the industry's trusted C Series design with a slimmer profile, improved strain relief, and enhanced mechanical performance.

Designed for musicians, audio engineers, rental companies, installers, and touring professionals, the NP2X-B is ideal for instrument cables, patch leads, speaker cables, snakes, mixing consoles, amplifiers, pedalboards, and professional audio systems.

Its extra-slim 14.5mm shell diameter makes it one of the slimmest A-gauge ¼" jack connectors available, allowing it to fit modern high-density jackfields with 15.88mm jack spacing. The precision-machined one-piece tip contact eliminates rivets found in traditional connectors, reducing the risk of tip failure or snagging inside sockets and providing superior long-term reliability.

Neutrik's proven chuck-type strain relief securely grips cable diameters from 4mm to 7mm, providing exceptional cable retention while protecting solder joints from mechanical stress. Combined with the rugged black KTL-coated zinc die-cast housing and corrosion-resistant gold-plated contacts, the NP2X-B is built to withstand the demands of professional touring, live production, and permanent installations.

Applications

• Guitar and bass instrument cables
• Patch leads and pedalboards
• Mixing consoles and audio interfaces
• Professional amplifier connections
• Audio snakes and multicore systems
• Studio patch bays
• Live sound and touring systems
• Theatre and broadcast installations
• General professional audio interconnects

Specifications

• Model: NP2X-B
• Connector type: 6.35mm (¼") 2-pole mono jack plug
• Gender: Male
• Housing finish: Black KTL-coated zinc die-cast
• Contact plating: Gold (0.2µm Au)
• Cable diameter: 4mm – 7mm
• Maximum conductor size: 1.0mm² (18 AWG)
• Wiring method: Solder contacts
• Contact resistance: Dependent on mating connector
• Insulation resistance: >2GΩ (initial)
• Dielectric strength: 1kV DC
• Rated voltage: <50V
• Operating temperature: -20°C to +65°C
• Lifetime: >1,000 mating cycles

Features

• Professional 6.35mm mono jack plug with black metal shell
• Gold-plated contacts for outstanding conductivity and corrosion resistance
• Extra-slim 14.5mm housing for high-density jackfields and patch panels
• Precision-machined one-piece tip contact eliminates rivets and improves durability
• Proven Neutrik chuck-type strain relief for superior cable retention
• Rugged zinc die-cast housing with durable black KTL coating
• Ergonomic design for comfortable handling and fast assembly
• Compatible with cable diameters from 4mm to 7mm
• Built to Neutrik's renowned professional quality standards

Benefits

• Reliable signal transmission for critical professional audio applications
• Gold-plated contacts resist corrosion and maintain excellent conductivity over time
• Slim design fits tightly spaced equipment and patch bays
• One-piece tip design reduces wear and prevents tip snagging or failure
• Outstanding strain relief extends cable life in demanding touring environments
• Quick, reliable assembly for cable manufacturers and technicians

Ideal for

• Professional musicians and touring artists
• Live sound engineers and production companies
• Recording and broadcast studios
• Theatre and performing arts venues
• AV integrators and installers
• Audio equipment manufacturers
• Rental companies
• Custom cable assembly and repair workshops
