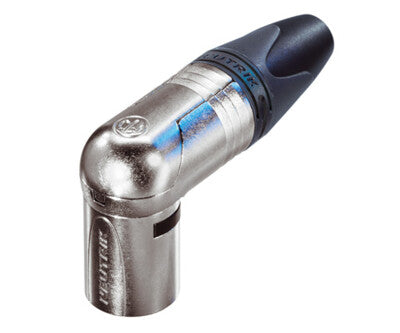

Neutrik - NC3MRX - Right Angle Male 3 Pin XLR connector (chrome body & silver contacts)

Neutrik NC3MRX Right Angle Male 3-Pin XLR Connector – Silver Body, Silver Contacts

The Neutrik NC3MRX is a professional right-angle 3-pin male XLR cable connector featuring a nickel-plated metal housing and silver-plated contacts. Part of Neutrik's industry-leading RX Series, this connector is specifically designed for applications where space is limited or cable routing needs to be carefully managed. Its ultra-slim right-angle design makes it ideal for microphones, stage boxes, audio racks, pedalboards, broadcast equipment, and installations where conventional straight connectors are impractical.

Built on the proven XX Series platform, the RX Series combines Neutrik's renowned reliability with enhanced flexibility. The NC3MRX features seven selectable cable outlet positions, allowing technicians to orient the cable to suit virtually any installation. This helps reduce cable stress, improve cable management, and minimise the connector's profile behind equipment.

The connector incorporates Neutrik's redesigned windowless locking recess, providing a stronger housing with improved durability compared to previous designs. An enhanced chuck-type strain relief securely grips cable diameters from 3.5mm to 8.0mm, while the polyurethane gland protects against cable bending stresses commonly encountered in touring and production environments.

Manufactured from rugged nickel-plated zinc die-cast components with silver-plated contacts, the NC3MRX delivers outstanding conductivity, long service life, and reliable performance. With a rated lifetime exceeding 1,000 mating cycles, it is built to meet the demands of professional audio, broadcast, and entertainment applications.

Applications

• Professional microphone cables
• Audio signal interconnects
• Live sound and touring systems
• Broadcast and recording studios
• Stage boxes and patch systems
• Pedalboards and musical instruments
• Equipment racks and confined installations
• Theatre and performing arts venues
• Film and television production
• Permanent AV installations

Specifications

• Model: NC3MRX
• Connector type: Right-angle 3-pin male XLR cable connector
• Housing finish: Nickel-plated zinc die-cast
• Contact plating: Silver (2µm Ag)
• Cable diameter: 3.5mm – 8.0mm
• Maximum conductor size: 2.5mm² (14 AWG)
• Wiring method: Solder contacts
• Locking mechanism: Latch lock
• Rated current: 16A per contact
• Rated voltage: <50V
• Contact resistance: ≤3mΩ
• Insulation resistance: >2GΩ (initial)
• Dielectric strength: 1.5kV DC
• Operating temperature: -30°C to +80°C
• Protection class: IP40
• Lifetime: >1,000 mating cycles

Features

• Extra slim right-angle connector for compact installations
• Seven selectable cable outlet positions for maximum routing flexibility
• Industry-leading Neutrik RX Series design
• Improved windowless locking recess for increased housing strength and durability
• Enhanced chuck-type strain relief for superior cable retention
• Polyurethane cable gland reduces cable bending stress and extends cable life
• Silver-plated contacts for outstanding conductivity and signal integrity
• Rugged nickel-plated zinc die-cast housing for long-term reliability
• Compatible with coloured rings and boots for fast cable identification
• Ergonomic design for easy assembly and handling

Benefits

• Ideal for installations where space behind equipment is limited
• Improves cable routing and reduces cable strain
• Exceptional reliability for demanding touring and production environments
• Strong mechanical construction designed for professional use
• Fast and straightforward assembly for cable manufacturers and technicians
• Trusted worldwide by the professional audio and entertainment industry

Ideal for

• Live sound and touring professionals
• Recording and broadcast studios
• Film and television production
• Theatre and performing arts venues
• Audio equipment manufacturers
• AV integrators and installers
• Pedalboard and instrument cable assemblies
• Custom cable assembly and repair workshops
