Neutrik - NC3FRX - Right Angle Female 3 Pin XLR connector (silver body & silver contacts)

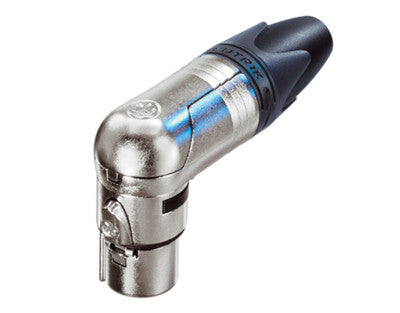

Neutrik NC3FRX Right Angle Female 3-Pin XLR Connector – Silver Body, Silver Contacts

The Neutrik NC3FRX is a professional right-angle 3-pin female XLR cable connector featuring a nickel-plated metal housing and silver-plated contacts. Part of Neutrik's acclaimed RX Series, this connector is specifically designed for applications where space is limited or cable management is critical, making it an ideal solution for microphones, stage equipment, broadcast systems, racks, pedalboards, and production equipment.

Based on the proven XX Series platform, the RX Series introduces an extra slim right-angle design combined with five selectable cable outlet positions, allowing technicians to optimise cable routing for virtually any installation. This reduces cable strain, minimises clutter, and helps protect connectors and equipment in demanding professional environments.

The connector incorporates Neutrik's unique female contact cage design, providing exceptionally low contact resistance and outstanding signal integrity. An integrated solder barrier prevents solder from entering the contact mating area during assembly, while additional ground spring contacts improve shell grounding continuity for enhanced shielding performance.

The redesigned solid metal latch is stronger, larger, and easier to operate, while the improved chuck-type strain relief securely grips cable diameters from 3.5mm to 8.0mm, helping protect against cable pull-out and bending stress. Combined with the polyurethane gland, the NC3FRX is engineered for long service life in demanding touring, broadcast, and installation environments.

With a rugged nickel-plated zinc die-cast housing and a rated lifetime exceeding 1,000 mating cycles, the NC3FRX delivers the durability and reliability expected from genuine Neutrik connectors.

Applications

• Professional microphone cables
• Broadcast and recording studios
• Stage boxes and audio patch systems
• Live sound and touring systems
• Pedalboards and musical instruments
• Equipment racks and confined installations
• Theatre and performing arts venues
• Film and television production
• Permanent AV installations

Specifications

• Model: NC3FRX
• Connector type: Right-angle 3-pin female XLR cable connector
• Housing finish: Nickel-plated zinc die-cast
• Contact plating: Silver (2µm Ag)
• Cable diameter: 3.5mm – 8.0mm
• Maximum conductor size: 2.5mm² (14 AWG)
• Wiring method: Solder contacts
• Rated current: 16A per contact
• Rated voltage: <50V
• Contact resistance: ≤3mΩ
• Insulation resistance: >2GΩ (initial)
• Dielectric strength: 1.5kV DC
• Operating temperature: -30°C to +80°C
• Protection class: IP40
• Lifetime: >1,000 mating cycles

Features

• Extra slim right-angle connector for compact installations
• Five selectable cable outlet positions for flexible cable routing
• Industry-leading Neutrik RX Series design
• Unique female contact cage design for superior signal integrity and low contact resistance
• Integrated solder barrier prevents solder contamination of contact surfaces
• Improved solid metal latch for enhanced durability and ease of use
• Additional ground spring contacts improve shell grounding continuity
• Enhanced chuck-type strain relief for superior cable retention
• Polyurethane cable gland protects against cable bending stress
• Rugged nickel-plated zinc die-cast housing for long service life
• Compatible with coloured rings and boots for quick cable identification

Benefits

• Ideal for installations with limited space behind equipment
• Reduces cable strain and improves cable management
• Exceptional electrical performance and signal reliability
• Built to withstand demanding touring and production environments
• Fast and straightforward assembly for cable manufacturers and technicians
• Trusted worldwide throughout the professional audio and entertainment industry

Ideal for

• Live sound and touring professionals
• Recording and broadcast studios
• Film and television production
• Theatre and performing arts venues
• Audio equipment manufacturers
• AV integrators and installers
• Pedalboard and instrument cable assemblies
• Custom cable assembly and repair workshops
