Neutrik - NBNC75BLP9 - BNC Rear Twist 75 ohm Connector

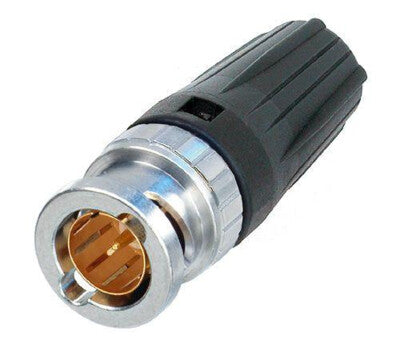

Neutrik NBNC75BLP9 rearTWIST HD BNC 75Ω Connector

The Neutrik NBNC75BLP9 is a professional 75Ω rearTWIST HD BNC male cable connector engineered for broadcast, digital video, and professional AV applications where superior signal integrity and reliability are essential. Featuring Neutrik's patented rearTWIST® locking system, this connector allows installers to securely connect and disconnect cables from the rear of the connector, making it ideal for high-density patch panels, recessed bulkheads, and equipment racks where access is limited.

Designed with a true 75Ω impedance, the NBNC75BLP9 meets the demanding performance requirements of SDI, HD-SDI, 3G-SDI, HDTV, and other professional digital video systems. Precision Swiss-machined brass components, a gold-plated centre contact, and PTFE insulation ensure exceptional electrical performance, minimal signal loss, and long-term durability.

The connector incorporates Neutrik's advanced shield and jacket crimp technology, preventing exposed grounding braid while providing excellent cable retention and mechanical strength. Rated for more than 1,000 mating cycles, the NBNC75BLP9 is built to withstand the rigours of broadcast facilities, touring productions, rental inventories, and permanent AV installations.

Designed for 6.3mm professional broadcast coaxial cable, this connector is compatible with a wide range of industry-standard cables including Belden, Canare, Clark Wire, Draka, Gepco, Sommer, Proel, CommScope, and many others.

Applications

• Broadcast television systems
• SDI, HD-SDI and 3G-SDI digital video networks
• Video routing systems and patch bays
• OB trucks and mobile broadcast facilities
• Film and television production
• Live event video production
• Professional AV installations
• High-density equipment racks and recessed connector panels

Specifications

• Model: NBNC75BLP9
• Connector type: BNC 75Ω male
• Impedance: True 75Ω
• Locking system: Patented rearTWIST® bayonet locking
• Cable O.D.: 6.3mm
• Crimp size (shield): 6.47mm Hex
• Crimp size (centre pin): 1.6mm Square
• Contact resistance: ≤3mΩ (centre), ≤2mΩ (outer)
• Insulation resistance: >5GΩ
• Rated voltage: <50V
• Dielectric strength: 1.5kV DC
• Operating temperature: -30°C to +85°C
• Lifetime: >1,000 mating cycles

Features

• Patented rearTWIST® locking mechanism for easy access in confined installations
• True 75Ω impedance for broadcast-quality video transmission
• Optimised for HDTV, SDI, HD-SDI and 3G-SDI applications
• Precision Swiss-machined brass construction for outstanding durability
• Gold-plated centre contact for superior conductivity and corrosion resistance
• Shield and jacket crimp technology eliminates exposed grounding braid
• Snug-fit centre pin provides positive tactile feedback during connection
• Secure bayonet locking mechanism for fast and reliable installation
• Compatible with optional colour-coded boots for quick cable identification
• Excellent cable strain relief and retention for demanding professional environments

Compatible Cable Types

• Argosy Image 720
• Belden 1505A (ANH)
• Belden 4505R
• Belden 8241F
• CAE HD08370LSZH
• Canare L-4CFB
• Clark Wire CD7559-0
• Clark Wire CD7559F-0
• CommScope 5565
• Draka 0.8/3.7 AF
• Draka 755-801, 755-803, 755-804
• Gepco VPM2000
• Proel HPC 810
• Suhner S0426
• Sommer 600-0451
• Sommer 600-162(F)
• Percon VK6

Ideal for

• Broadcast and television facilities
• Film and television production
• Live event video systems
• Professional AV installations
• Video patch bays and routing equipment
• Touring and rental companies
• Permanent broadcast infrastructure
