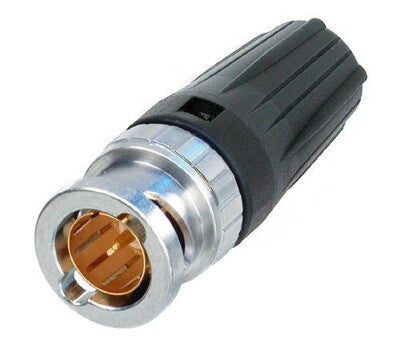

Neutrik NBNC75BLP7 rearTWIST HD BNC 75Ω Connector

The Neutrik NBNC75BLP7 is a professional 75Ω rearTWIST HD BNC male cable connector designed for broadcast, digital video, and professional AV applications where uncompromising signal integrity and reliability are essential. Featuring Neutrik's patented rearTWIST® locking system, this connector allows installers to securely connect and disconnect cables from the rear of the connector, making it ideal for high-density patch panels, recessed bulkheads, and tightly packed equipment racks.

Built with a true 75Ω impedance, the NBNC75BLP7 meets the demanding requirements of SDI, HD-SDI, 3G-SDI, HDTV, and other professional digital video formats. Precision Swiss-machined brass components, a gold-plated centre contact, and PTFE insulation ensure outstanding electrical performance, low return loss, and exceptional long-term durability.

The connector incorporates Neutrik's advanced shield and jacket crimp technology, preventing exposed grounding braid while providing superior cable retention and mechanical strength. With a rated service life of more than 1,000 mating cycles, the NBNC75BLP7 is engineered to withstand the demands of broadcast facilities, rental inventories, touring productions, and permanent AV installations.

Designed for 6.3mm professional broadcast coaxial cable, the NBNC75BLP7 is compatible with a wide range of industry-standard RG59 and equivalent video cables.

Applications

• Broadcast television systems
• SDI, HD-SDI and 3G-SDI digital video infrastructure
• Video routing systems and patch bays
• OB trucks and mobile broadcast facilities
• Film and television production
• Live event video production
• Professional AV installations
• High-density equipment racks and recessed connector panels

Specifications

• Model: NBNC75BLP7
• Connector type: BNC 75Ω male
• Impedance: True 75Ω
• Locking system: Patented rearTWIST® bayonet locking
• Cable O.D.: 6.3mm
• Crimp size (shield): 6.47mm Hex
• Crimp size (centre pin): 1.6mm Square
• Contact resistance: ≤3mΩ (centre), ≤2mΩ (outer)
• Insulation resistance: >5GΩ
• Rated voltage: <50V
• Dielectric strength: 1.5kV DC
• Operating temperature: -30°C to +85°C
• Lifetime: >1,000 mating cycles

Features

• Patented rearTWIST® locking system for easy installation in confined spaces
• True 75Ω impedance for professional broadcast-quality signal transmission
• Optimised for HDTV, SDI, HD-SDI and 3G-SDI applications
• Precision Swiss-machined brass construction for exceptional durability
• Gold-plated centre contact for superior conductivity and corrosion resistance
• Shield and jacket crimp technology eliminates exposed grounding braid
• Snug-fit centre pin provides positive tactile feedback during connection
• Secure bayonet locking mechanism for fast and dependable installation
• Compatible with optional colour-coded boots for quick cable identification
• Excellent cable strain relief and retention for demanding professional use

Compatible Cable Types

• Belden 8241
• CAE KX6A
• Canare LV-61S
• Cordial CVI (CVM) 06-37
• CommScope 5563
• Draka 0.6/3.7
• Draka 0.6L/3.7
• Proel HPC 805
• RG59B/U
• Sommer 600-0051 (M, L, S)
• Sommer 600-0054 (M, L, S)
• Klotz V06/37
• Nexans HF 75 0,6/3,7 2YCY
• Percon VK95

Ideal for

• Broadcast and television facilities
• Film and television production
• Live event video systems
• Professional AV installations
• Video patch bays and routing equipment
• Touring and rental companies
• Permanent broadcast infrastructure
