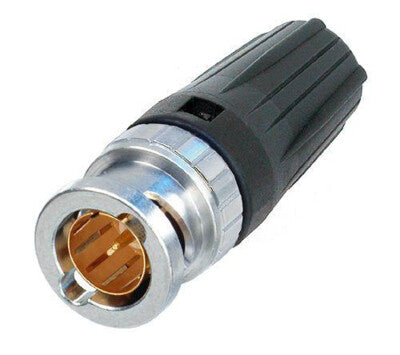

Neutrik NBNC75BDD6 rearTWIST HD BNC 75Ω Connector

The Neutrik NBNC75BDD6 is a professional 75Ω rearTWIST HD BNC male cable connector engineered for high-definition broadcast, digital video, and professional AV applications. Designed with Neutrik's patented rearTWIST® locking system, this connector provides effortless connection and disconnection in high-density patch panels, recessed bulkheads, and tightly packed equipment racks, where conventional BNC connectors can be difficult to access.

Featuring a true 75Ω impedance design, the NBNC75BDD6 delivers the precision required for SDI, HD-SDI, 3G-SDI, HDTV, and other professional digital video formats. Precision Swiss-machined brass components, a gold-plated centre contact, and PTFE insulation ensure excellent electrical performance, low signal loss, and outstanding long-term reliability.

The connector incorporates Neutrik's advanced shield and jacket crimp system, eliminating exposed grounding braid while providing exceptional cable retention and mechanical strength. Rated for more than 1,000 mating cycles, it is designed to withstand the demanding conditions of broadcast studios, touring productions, rental inventories, and permanent AV installations.

The NBNC75BDD6 is specifically designed for smaller diameter professional broadcast coaxial cables, including Belden 1855A, Clark Wire CD7523-7, and CommScope 7538.

Applications

• Broadcast television systems
• HD-SDI, SDI and 3G-SDI video infrastructure
• Video routing systems and patch panels
• OB trucks and mobile broadcast units
• Film and television production
• Live event video systems
• Professional AV installations
• High-density equipment racks and recessed connector panels

Specifications

• Model: NBNC75BDD6
• Connector type: BNC 75Ω male
• Impedance: True 75Ω
• Locking system: Patented rearTWIST® bayonet locking
• Cable O.D.: 4.3mm
• Crimp size (shield): 4.53mm Hex
• Crimp size (centre pin): 1.6mm Square
• Contact resistance: ≤3mΩ (centre), ≤2mΩ (outer)
• Insulation resistance: >5GΩ
• Rated voltage: <50V
• Dielectric strength: 1.5kV DC
• Operating temperature: -30°C to +85°C
• Lifetime: >1,000 mating cycles

Features

• Patented rearTWIST® locking mechanism for simple access in confined spaces
• True 75Ω impedance for broadcast-quality digital video transmission
• Optimised for HDTV, SDI, HD-SDI and 3G-SDI applications
• Precision Swiss-machined brass construction for exceptional durability
• Gold-plated centre contact for superior conductivity and corrosion resistance
• Shield and jacket crimp technology prevents exposed grounding braid
• Snug-fit centre pin provides positive tactile feedback during connection
• Secure bayonet locking system for dependable performance
• Compatible with optional colour-coded boots for fast cable identification
• Excellent cable retention and strain relief for long service life

Compatible Cable Types

• Belden 1855A
• Clark Wire CD7523-7
• CommScope 7538

Ideal for

• Broadcast and television facilities
• Film and television production
• Live event video systems
• Professional AV installations
• Video patch bays and routing equipment
• Touring and rental companies
• Permanent broadcast infrastructure
