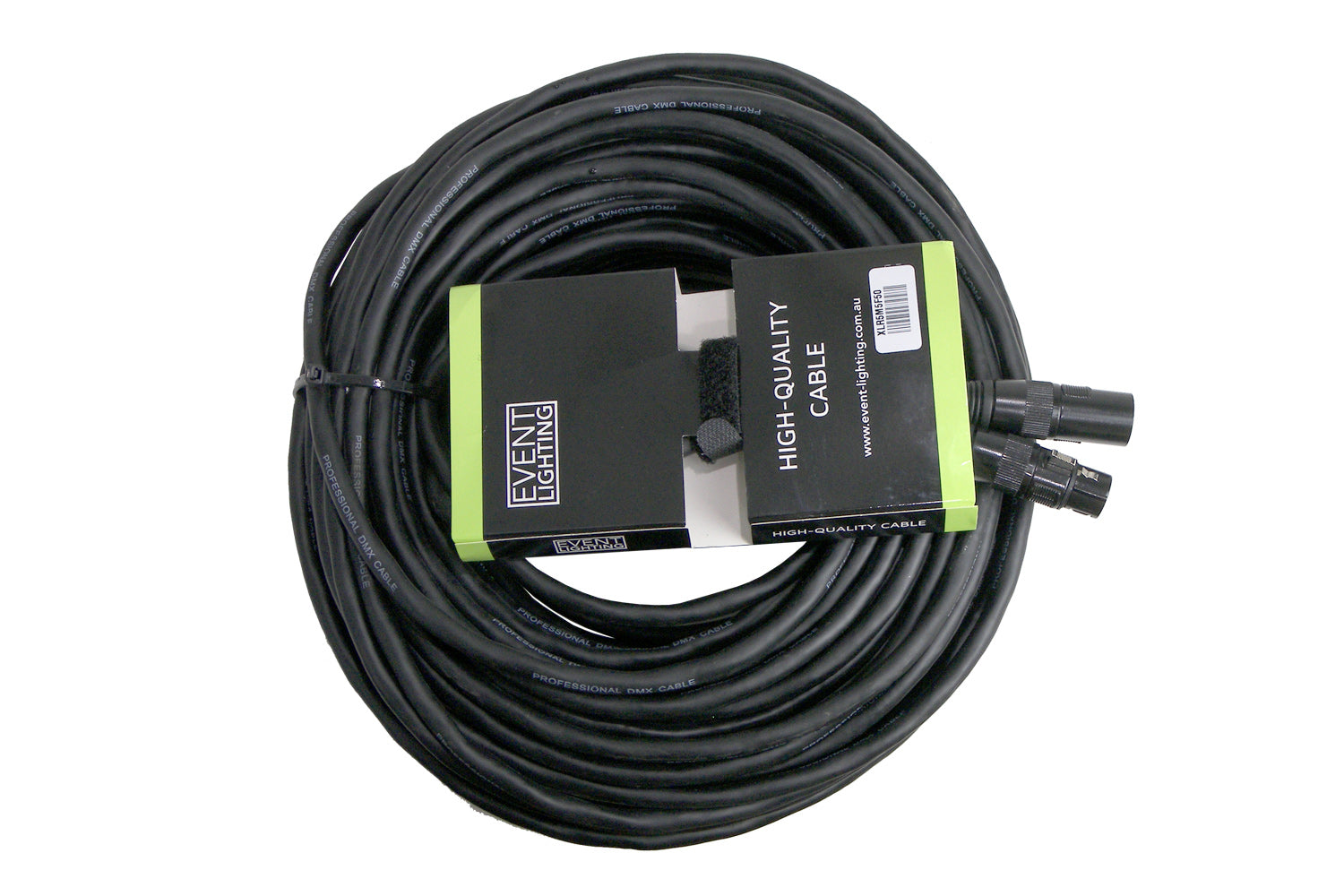

Event Lighting - XLR5M5F50 - Male 5 Pin XLR to Female 5 pin DMX cable - 50m Length

Event Lighting XLR5M5F50 5-Pin XLR DMX Cable – 50m

The Event Lighting XLR5M5F50 is a professional 5-pin XLR male to 5-pin XLR female DMX cable designed for reliable long-distance DMX signal transmission in stage, theatre, and live production environments. With a 50-metre length, this cable is ideal for large venues, outdoor events, and extended lighting control runs.

Engineered for stable data transmission, the cable features 2 twisted cores (0.34 mm² conductor) with AL/PET foil and braided shielding, helping to reduce interference and maintain signal integrity over longer distances. The durable PVC outer jacket (Ø5.8 mm) provides flexibility and protection for touring and installation use.

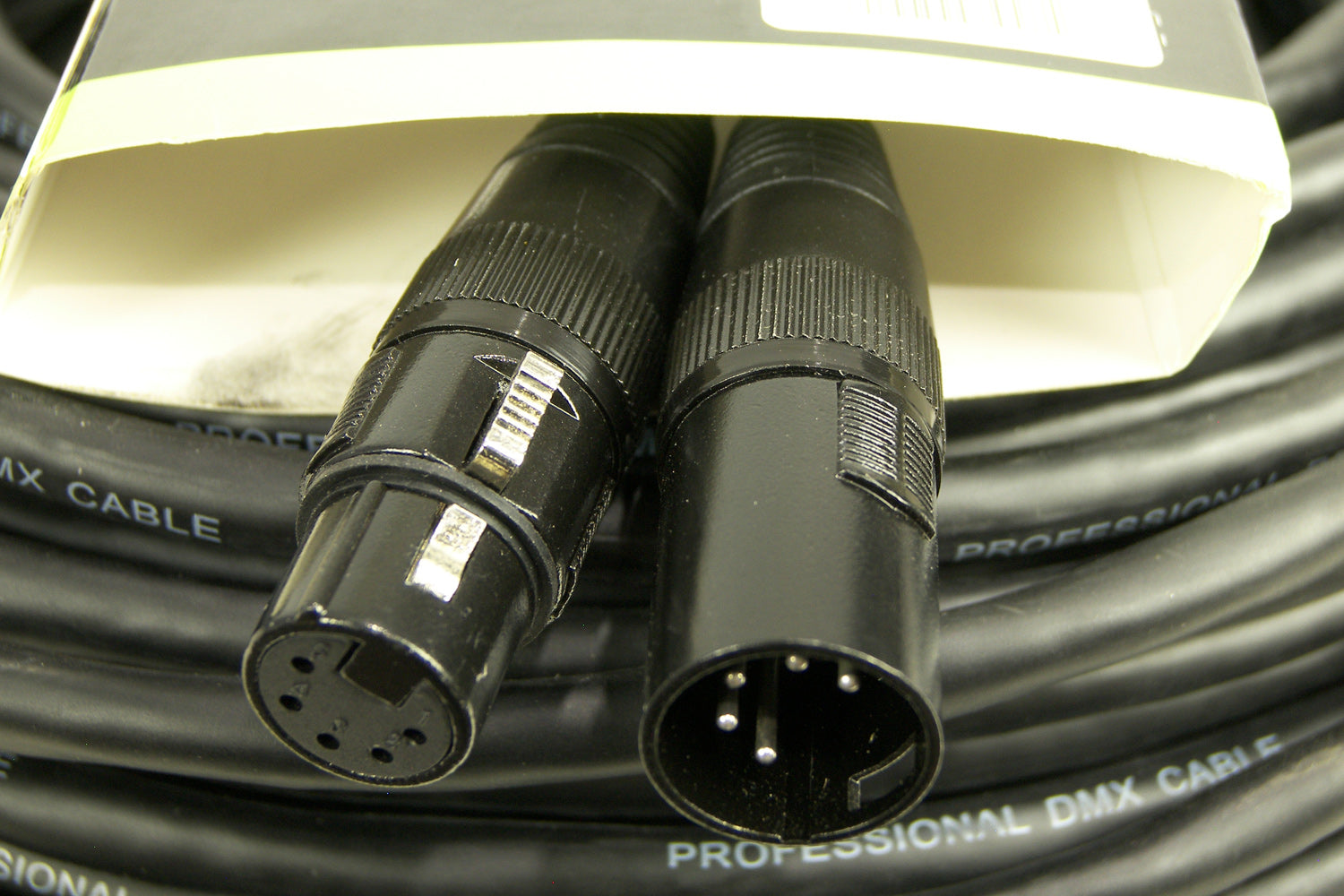

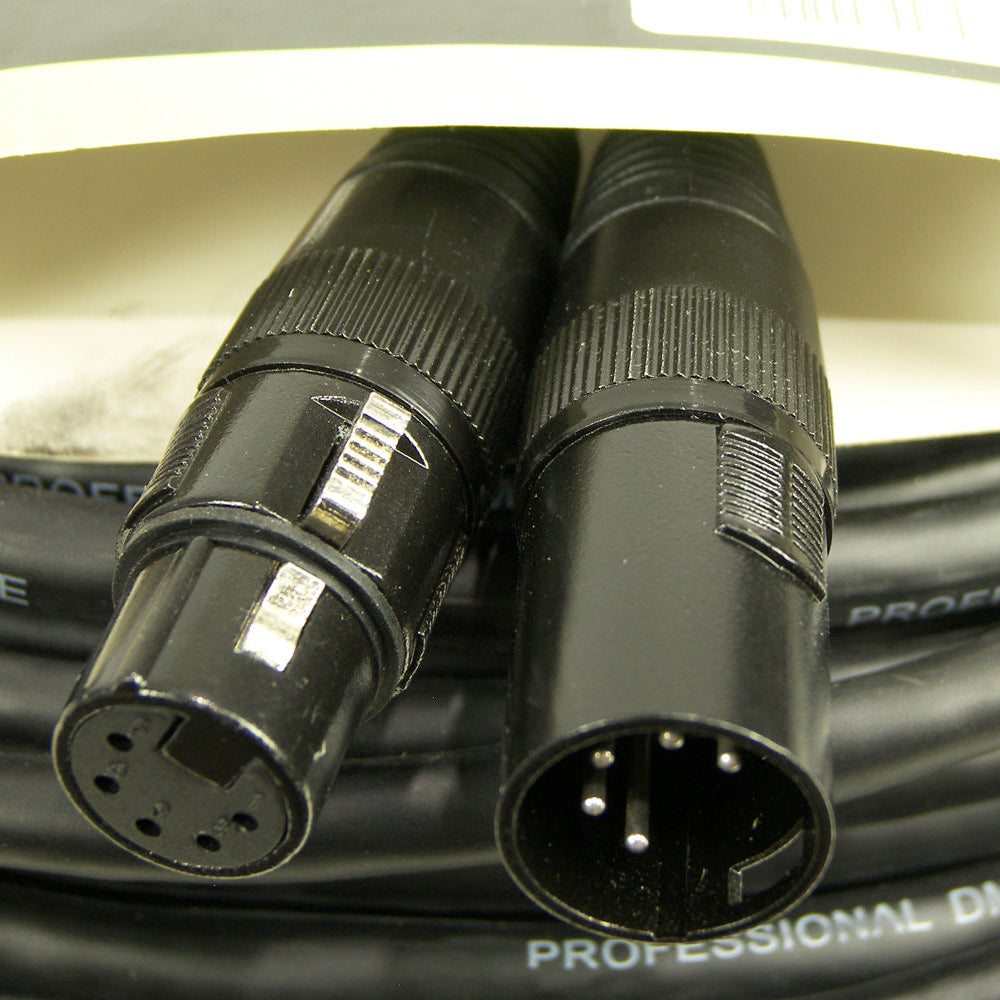

The cable is fitted with black metal 5-pin XLR connectors, complete with metal boots and rubber glands for enhanced durability. Clear heat shrink and colour coding at each end help easily identify DMX cables within complex production setups.

Specifications

- Length: 50 metres

- Connector type: 5-pin XLR male to 5-pin XLR female

- Conductor size: 0.34 mm²

- Core arrangement: 2 cores, twisted

- Shielding: AL/PET foil + braided shield

- Insulation: PE

- Outer jacket: PVC Ø5.8 mm

- Cable construction: 19 × 0.15 mm core, 16 × 16 × 0.12 cotton, aluminium foil shield, 20 × 0.12 drain

- Connector finish: Black metal with metal boot and rubber gland

- Identification: 50m length, black ring

- Shipping weight: 4 kg

- Packaging dimensions: 390 × 220 × 100 mm

Features

- Professional 5-pin DMX cable for lighting control

- Long 50m run for large venue installations

- Foil and braided shielding for signal stability

- Heavy-duty metal XLR connectors

- Colour-coded and heat-shrink identification

Ideal for

- Large stage and theatre lighting systems

- Live event and touring productions

- Outdoor festival lighting control

- Professional DMX network installations
