Event Lighting - XLR5M5F30 - Male 5 Pin XLR to Female 5 pin DMX cable - 30m Length

Event Lighting XLR5M5F30 5-Pin XLR DMX Cable – 30m

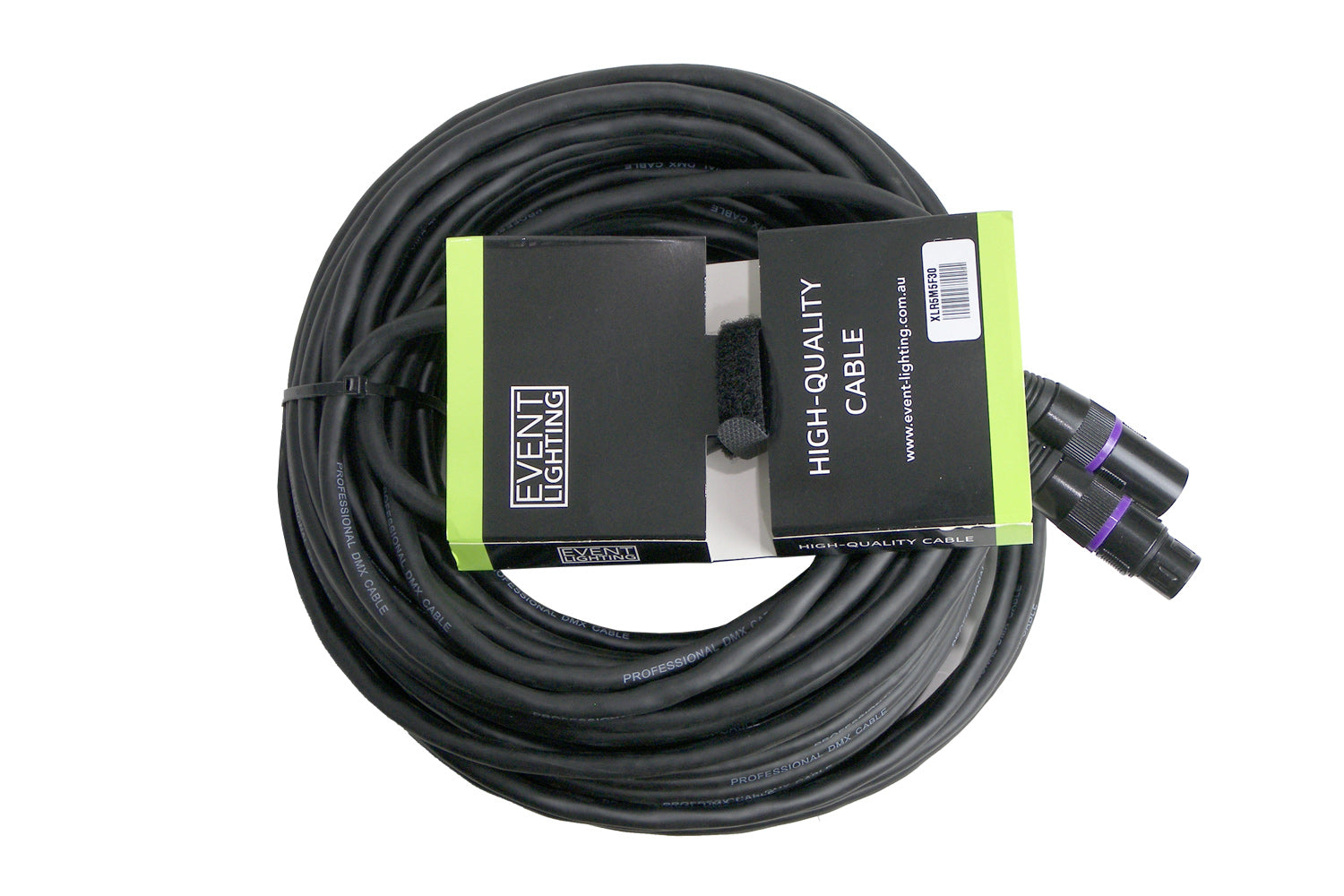

The Event Lighting XLR5M5F30 is a professional 5-pin XLR male to 5-pin XLR female DMX cable built for reliable signal transmission across medium-to-long lighting control runs. With a 30-metre length, this cable is ideal for stage productions, theatres, touring rigs, and event installations.

Designed for stable DMX performance, the cable features 2 twisted cores (0.34 mm² conductor) with AL/PET foil and braided shielding to minimise interference and ensure consistent data transmission. The durable PVC outer jacket (Ø5.8 mm) offers flexibility and protection for demanding production environments.

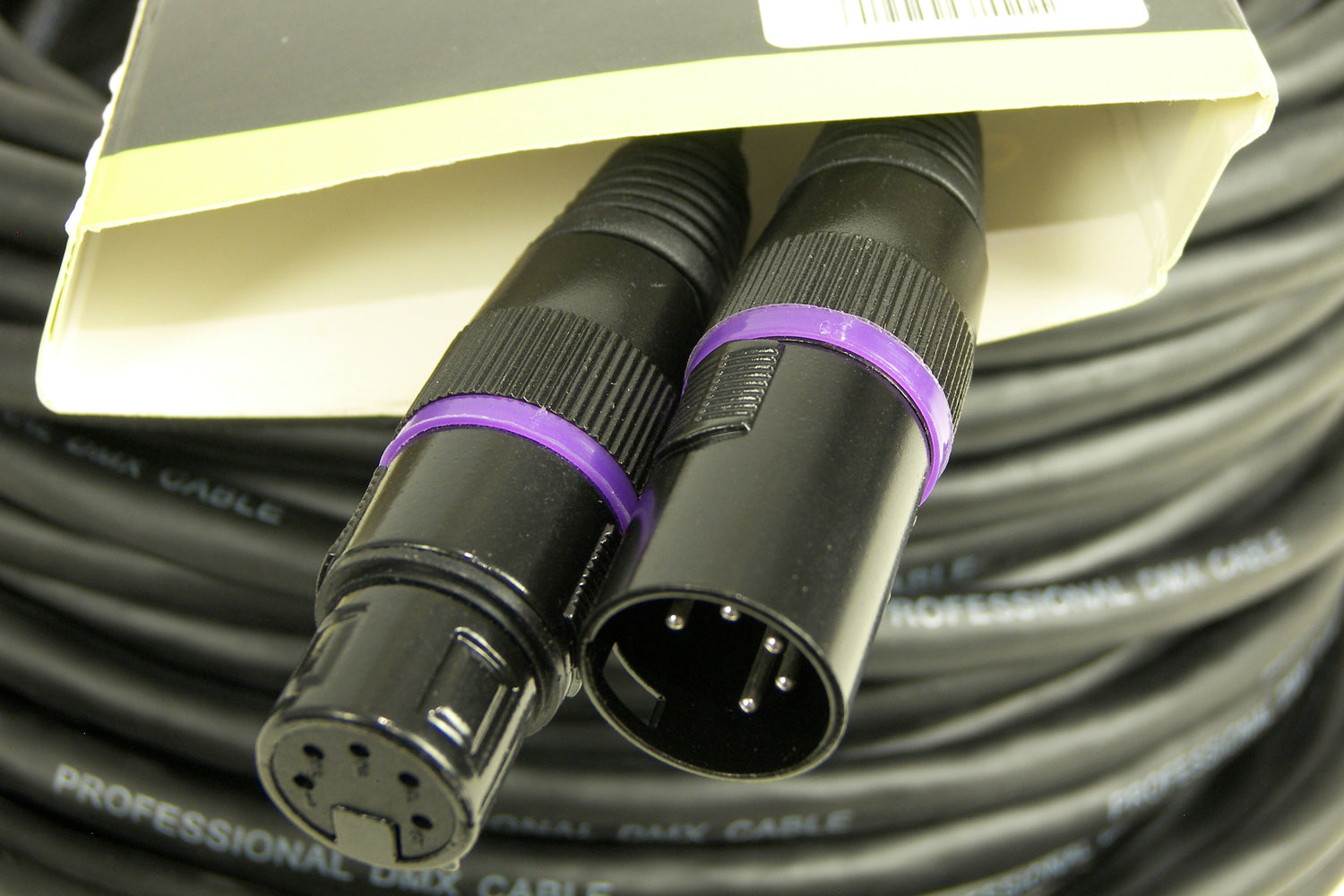

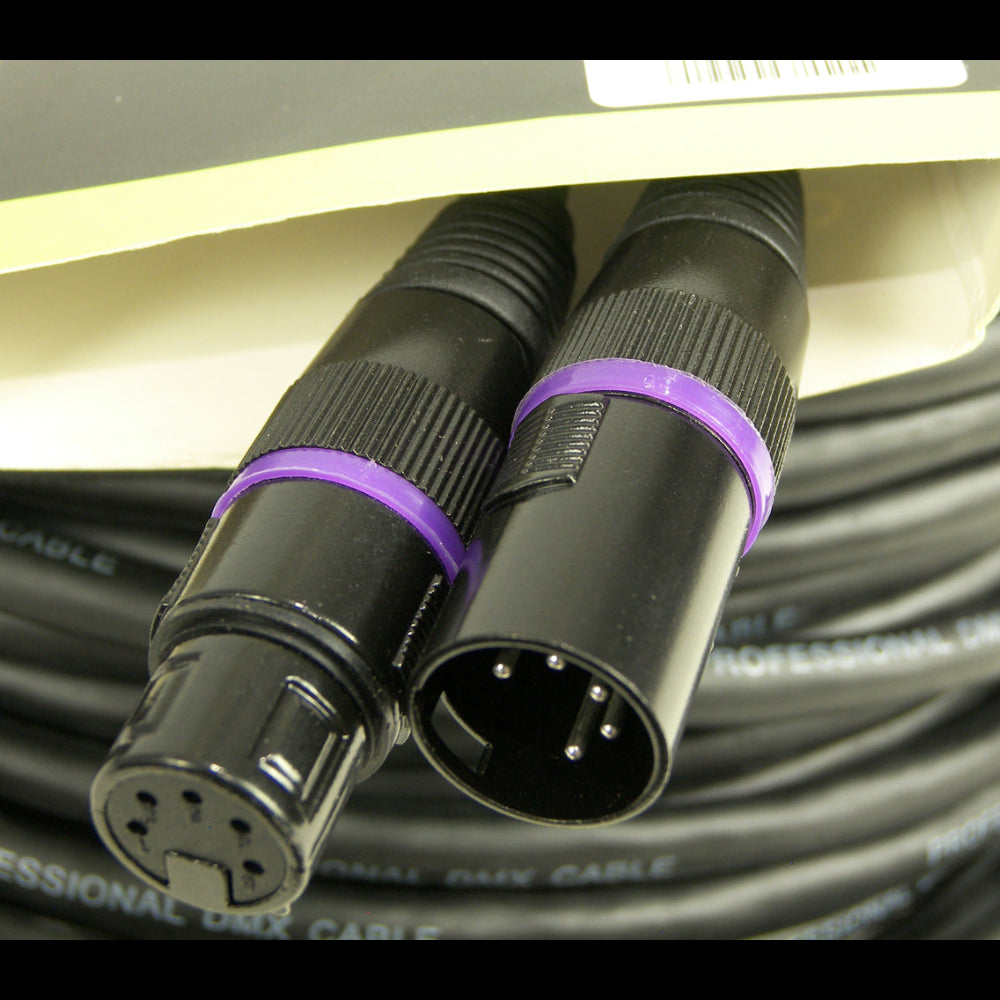

Fitted with black metal 5-pin XLR connectors complete with metal boots and rubber glands, the cable is built for touring durability. Clear heat shrink and a purple identification ring make it easy to distinguish within complex DMX setups.

Specifications

- Length: 30 metres

- Connector type: 5-pin XLR male to 5-pin XLR female

- Conductor size: 0.34 mm²

- Core arrangement: 2 cores, twisted

- Shielding: AL/PET foil + braided shield

- Insulation: PE

- Outer jacket: PVC Ø5.8 mm

- Cable construction: 19 × 0.15 mm core, 16 × 16 × 0.12 cotton, aluminium foil shield, 20 × 0.12 drain

- Connector finish: Black metal with metal boot and rubber gland

- Identification: 30m length, purple ring

- Shipping weight: 3 kg

- Packaging dimensions: 300 × 250 × 180 mm

Features

- Professional 5-pin DMX cable

- 30m length for medium to large venue runs

- Foil and braided shielding for signal stability

- Heavy-duty metal XLR connectors

- Colour-coded and heat-shrink identification for quick setup

Ideal for

- Stage and theatre lighting control

- Live event and touring productions

- DMX network extensions

- Professional lighting system installations
