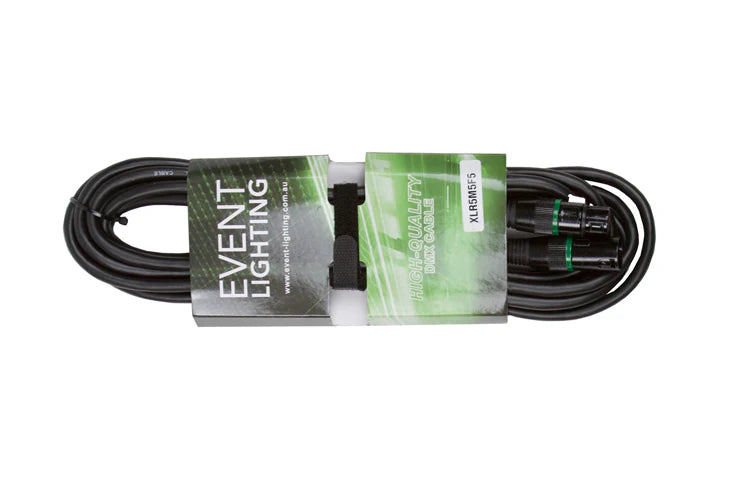

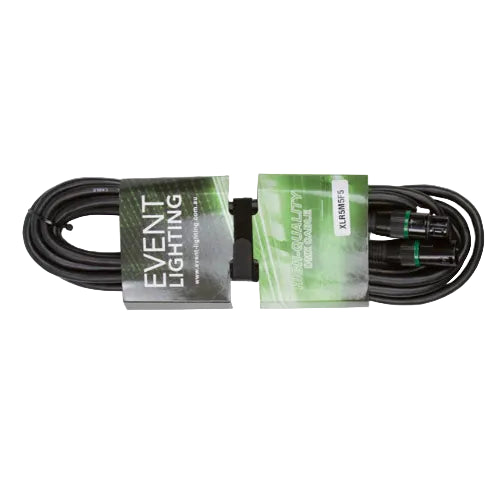

Event Lighting - XLR5M5F5 - Male 5 Pin XLR to Female 5 pin DMX cable - 5m Length

Event Lighting XLR5M5F5 5-Pin XLR DMX Cable – 5m

The Event Lighting XLR5M5F5 is a professional 5-pin XLR male to 5-pin XLR female DMX cable designed for reliable lighting control in live production, theatre, and installation environments. With a 5-metre length, it’s ideal for short runs between fixtures, truss sections, and control equipment.

Built for stable DMX signal transmission, the cable features a 0.34mm² conductor, PE insulation, and a 4-core twisted arrangement. Shielding includes AL/PET foil plus braided shielding to minimise interference and ensure consistent data performance. The durable PVC outer jacket (Ø7.5mm) provides added protection for touring and event use.

The cable is fitted with black metal 5-pin XLR connectors, complete with metal boots and rubber glands for strength and longevity. Clear heat shrink and a green identification ring allow for quick visual identification within larger DMX cable inventories.

Specifications

- Length: 5 metres

- Conductor: 0.34 mm²

- Core arrangement: 4 cores, twisted

- Insulation: PE

- Shielding: AL/PET + braided

- Outer jacket: PVC Ø7.5mm

- Connector type: 5-pin XLR male to 5-pin XLR female

- Connector finish: Black metal with metal boot and rubber gland

- Identification: 5m length, green ring

- Shipping weight: 0.65 kg

- Dimensions: 310 × 120 × 50 mm

Features

- Professional 5-pin DMX cable

- 5m length for short, tidy stage connections

- Double shielding for stable signal transmission

- Heavy-duty metal XLR connectors

- Colour-coded and heat-shrink identification

Ideal for

- Stage and theatre lighting systems

- Live event productions

- Touring lighting rigs

- Permanent DMX installations
