Event Lighting - CLAMPTQ50 - Aluminium Trigger Clamp (Suits 48-51mm) - Black

Event Lighting CLAMPTQ50 Aluminium Trigger Clamp – Black (48–51mm)

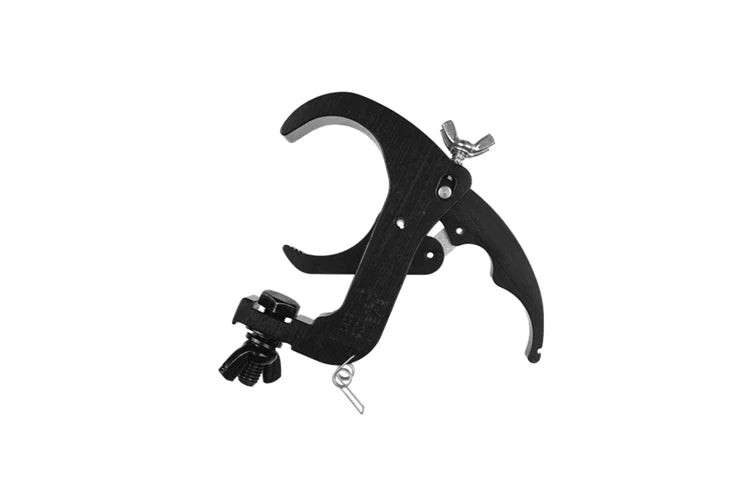

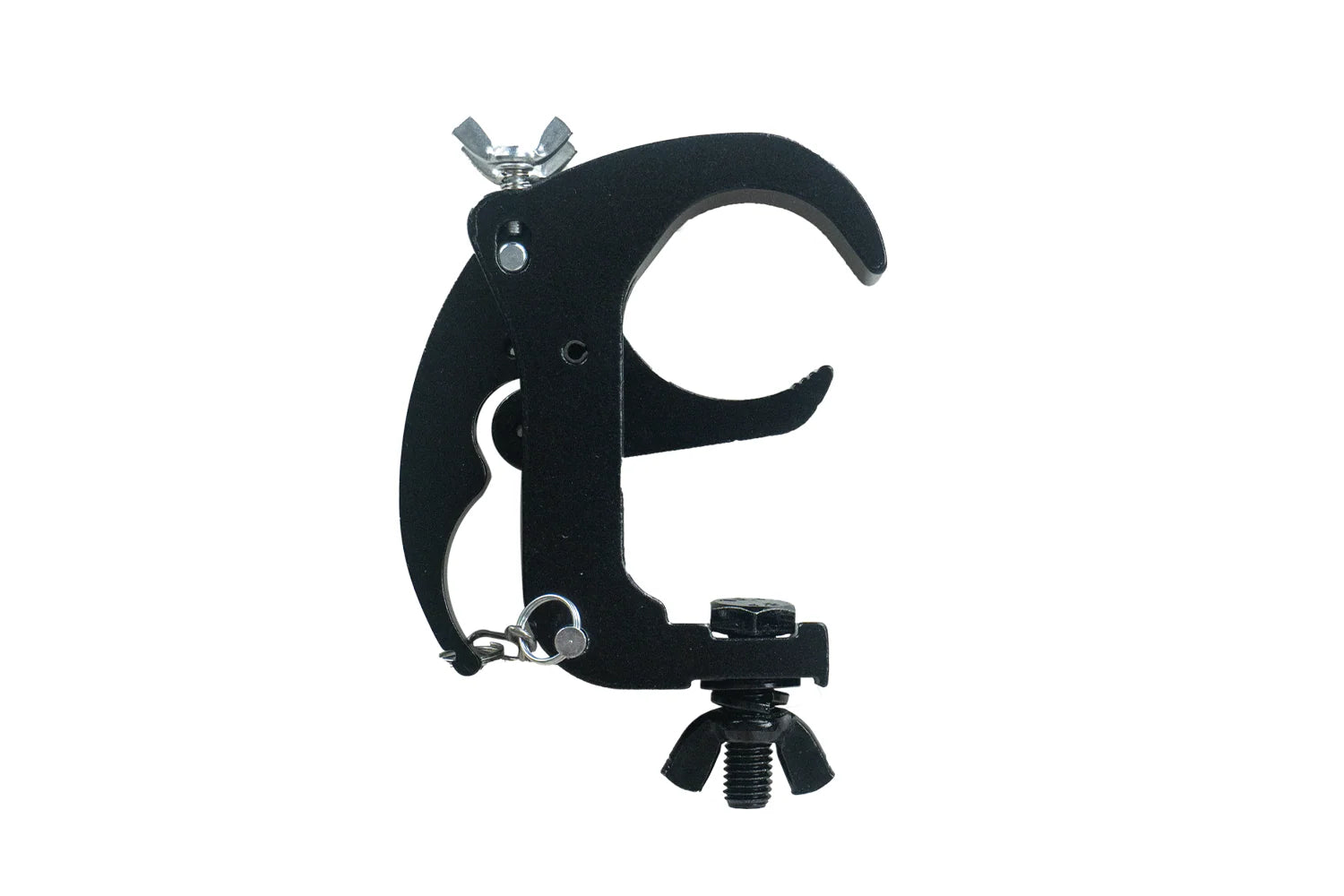

The Event Lighting CLAMPTQ50 is a professional aluminium trigger clamp designed for secure and fast mounting on 48–51mm truss or tube systems. Ideal for stage, theatre, and event production use, this clamp provides a reliable and efficient rigging solution.

Constructed from high-strength Aluminium 6061-T6, the clamp features a 28mm width and supports a Working Load Limit (WLL) of 150kg, making it suitable for mounting lighting fixtures and production accessories.

The trigger mechanism allows quick installation and removal during setup and teardown. Supplied with an M10 x 30 mounting bolt, the CLAMPTQ50 is finished in black anodized coating, making it especially suitable for theatre and stage environments where low-visibility rigging hardware is preferred.

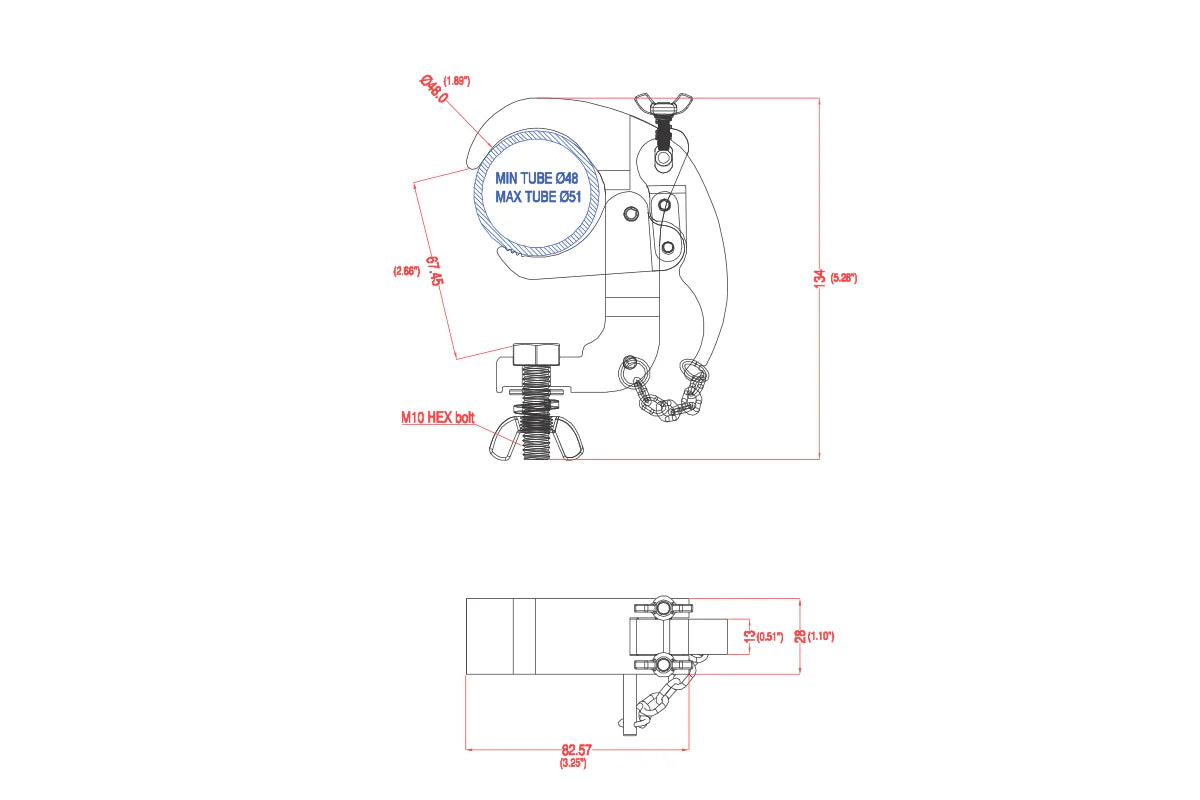

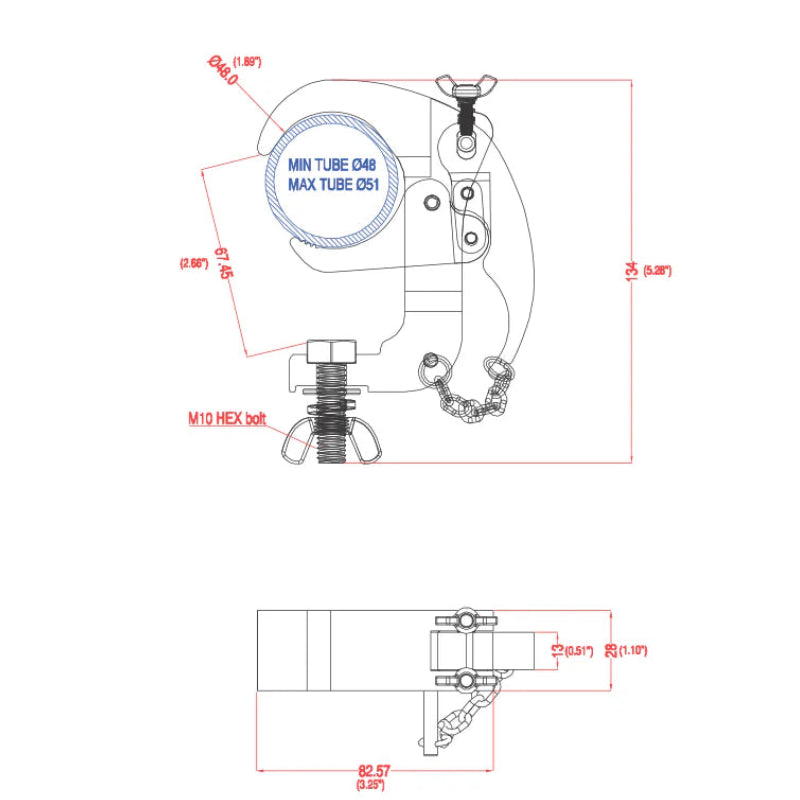

Specifications

- Pipe size: Ø48–51mm tube

- Width: 28mm

- Working Load Limit (WLL): 150kg

- Bolt: M10 x 30

- Material: Aluminium 6061-T6

- Weight: 0.31kg

- Colour: Black anodised

Features

- Trigger-style clamp for fast installation

- Suitable for 48–51mm truss or pipe

- 150kg WLL for professional production equipment

- Lightweight yet durable aluminium construction

- Black finish for discreet stage mounting

Ideal for

- Stage and theatre lighting

- Live events and touring productions

- Exhibition and installation setups

- Professional production rigging
