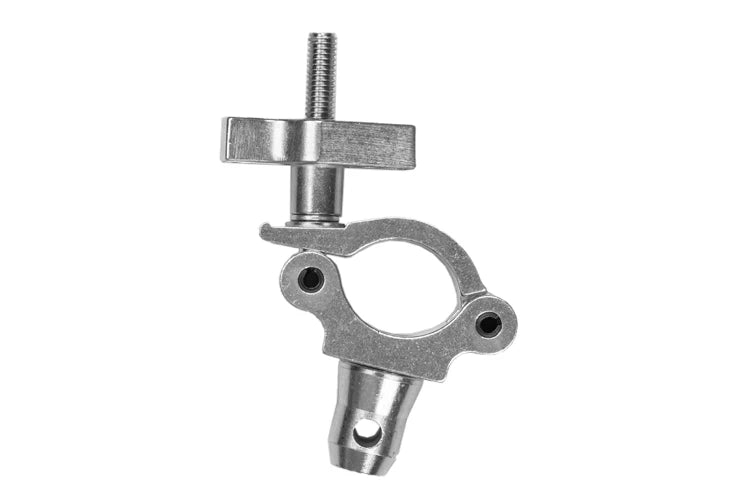

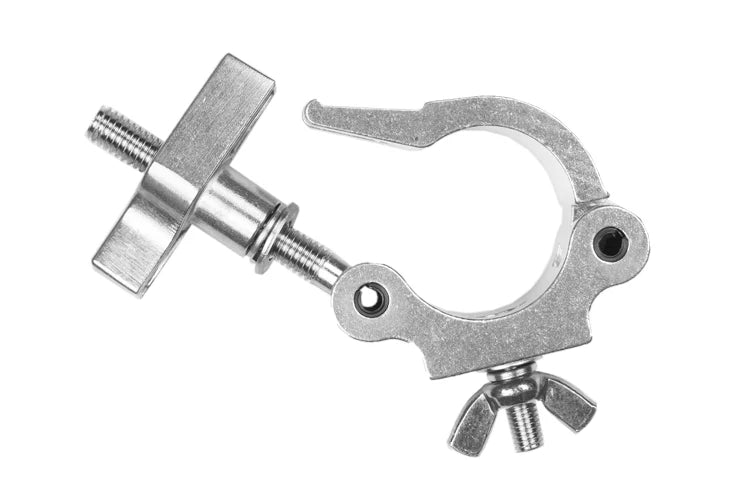

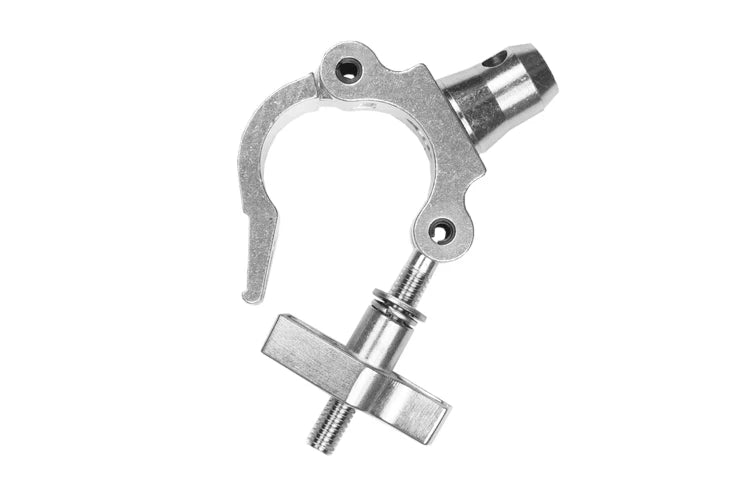

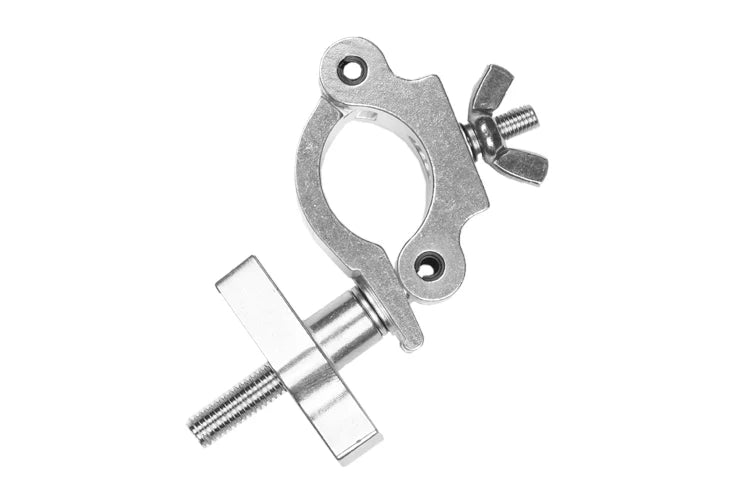

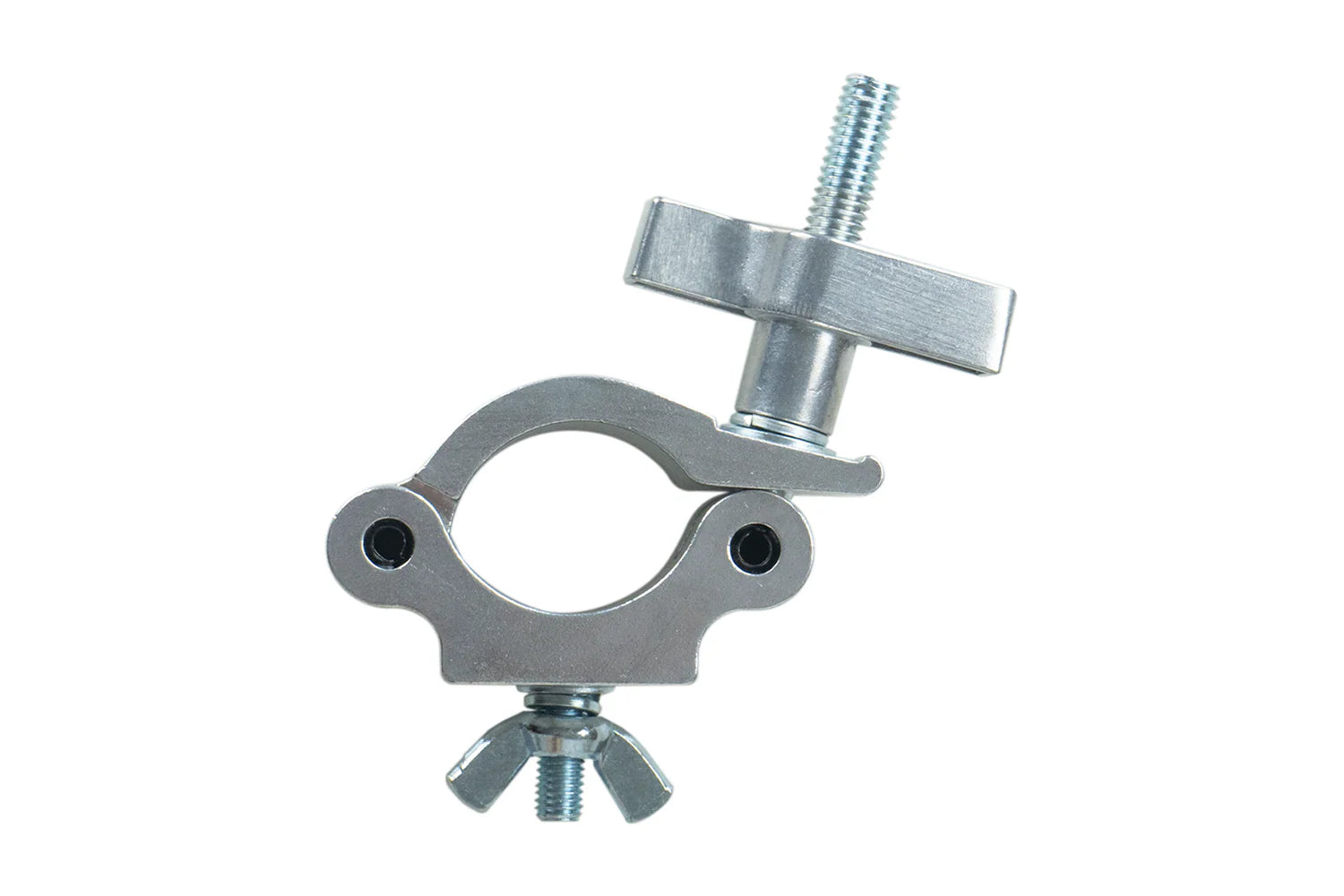

Event Lighting CLAMPP50WS Aluminium Pipe Clamp – Silver (38–51mm)
The Event Lighting CLAMPP50WS is a heavy-duty aluminium pipe clamp designed for secure professional mounting on 38–51mm truss or tube systems. Ideal for stage, touring, and installation environments, this clamp delivers exceptional strength and reliability for high-load rigging applications.
Manufactured from high-strength Aluminium 6061-T6, the clamp features a 50mm width and supports an impressive Working Load Limit (WLL) of 500kg, making it suitable for mounting heavier lighting fixtures and production equipment.
The clamp is supplied with an M10 x 40 mounting bolt and finished in silver to suit standard truss systems.
Optional accessories such as the Event Lighting CLAMPPEYENUT eye nut and Event Lighting TC1 (not included) can be used for additional rigging flexibility.

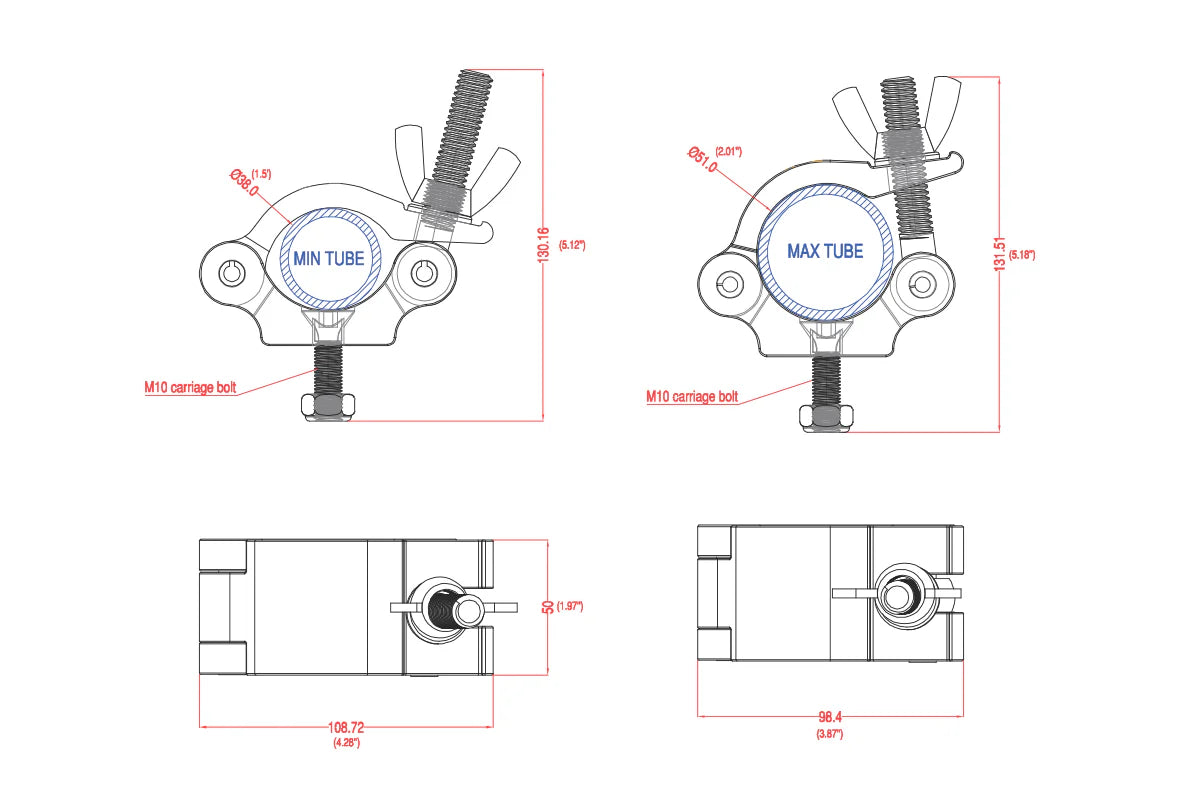

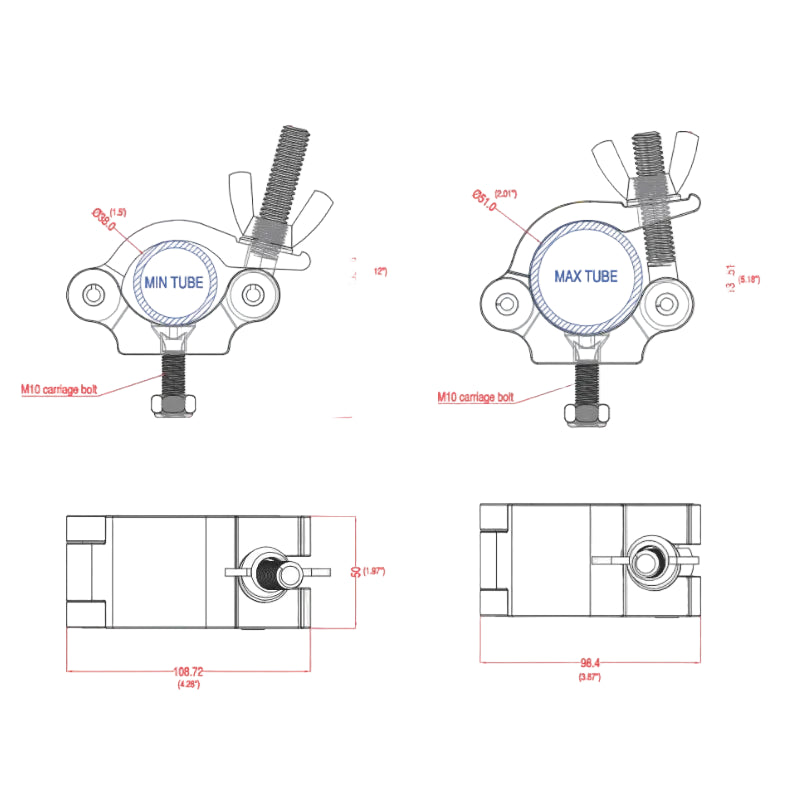

Specifications
- Pipe size: Ø38–51mm tube
- Width: 50mm
- Working Load Limit (WLL): 500kg
- Bolt: M10 x 40
- Material: Aluminium 6061-T6
- Weight: 0.40kg
- Colour: Silver
Features
- Heavy-duty professional pipe clamp
- Suitable for 38–51mm truss or pipe
- High 500kg WLL rating
- Durable aluminium construction
- Includes mounting bolt
Ideal for
- Stage and theatre lighting systems
- Live event and touring productions
- Large venue installations
- Professional rigging and production setups
