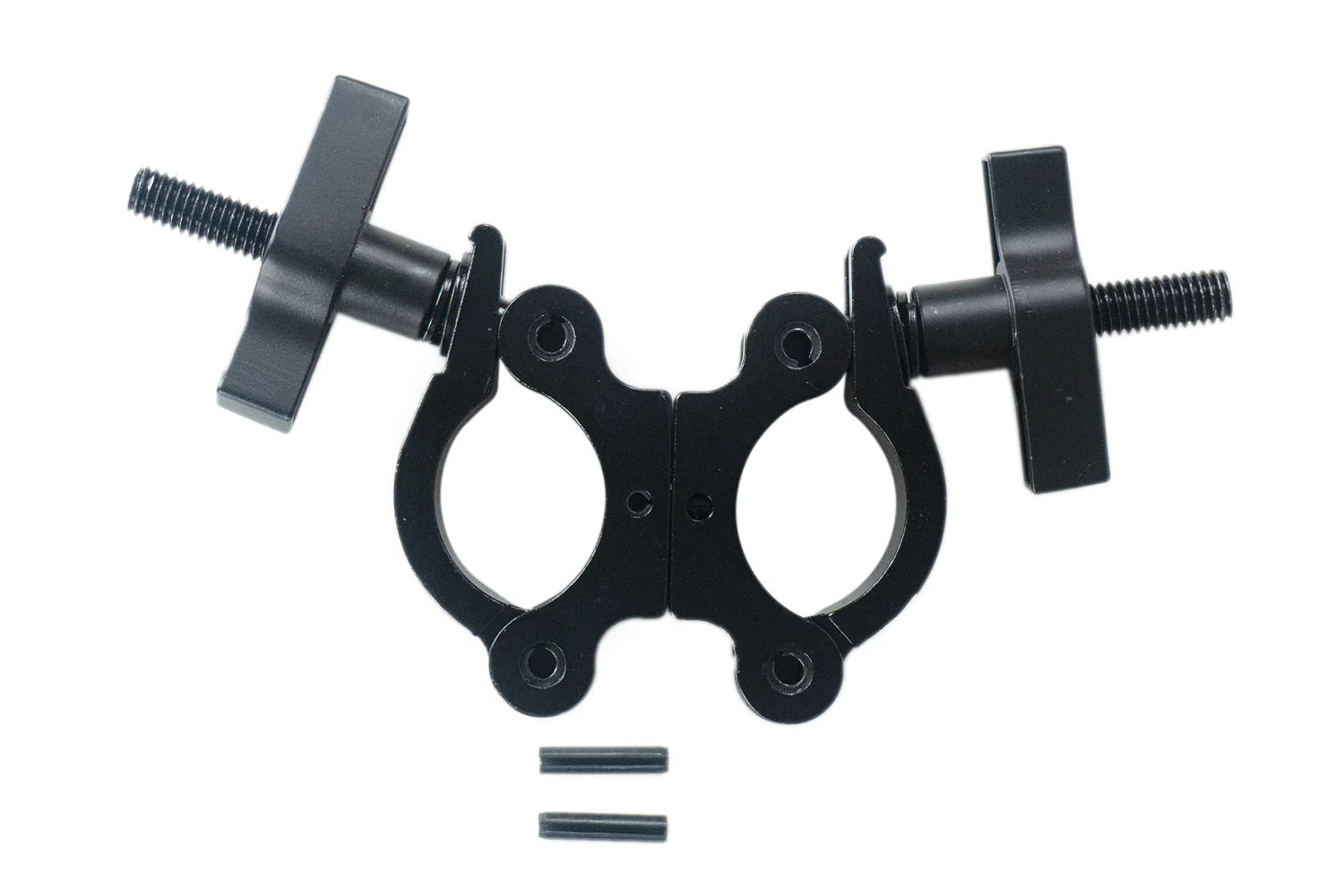

Event Lighting CLAMPDP50 Aluminium Double Swivel Pipe Clamp – Black (38–51mm)
The Event Lighting CLAMPDP50 is a professional aluminium double swivel pipe clamp designed for secure mounting on 38–51mm truss or tube systems. Ideal for stage, theatre, and production environments, this clamp provides flexible positioning and reliable heavy-duty rigging performance.
Manufactured from high-strength Aluminium 6061-T6, the clamp offers excellent durability while maintaining a manageable weight of 0.68kg. It supports a Working Load Limit (WLL) of 300kg, making it suitable for mounting medium to heavy lighting fixtures and production equipment.
The double swivel mechanism is lockable at 90°, allowing precise fixture alignment during professional installation. The black anodized finish makes it especially suitable for stage and theatre applications where low-visibility hardware is preferred.
Specifications
- Pipe size: Ø38–51mm tube
- Width: 30mm
- Working Load Limit (WLL): 300kg
- Lockable position: 90°
- Material: Aluminium 6061-T6
- Weight: 0.68kg
- Colour: Black anodized
Features
- Double swivel clamp design for adjustable mounting
- Lockable at 90° for precise alignment
- Suitable for 38–51mm truss or pipe
- Heavy-duty aluminium construction
- Black finish for discreet stage installation
Ideal for
- Stage and theatre lighting
- Live events and touring productions
- Exhibition and installation setups
- Professional production rigging
